| Specification Category | Details |
|---|---|

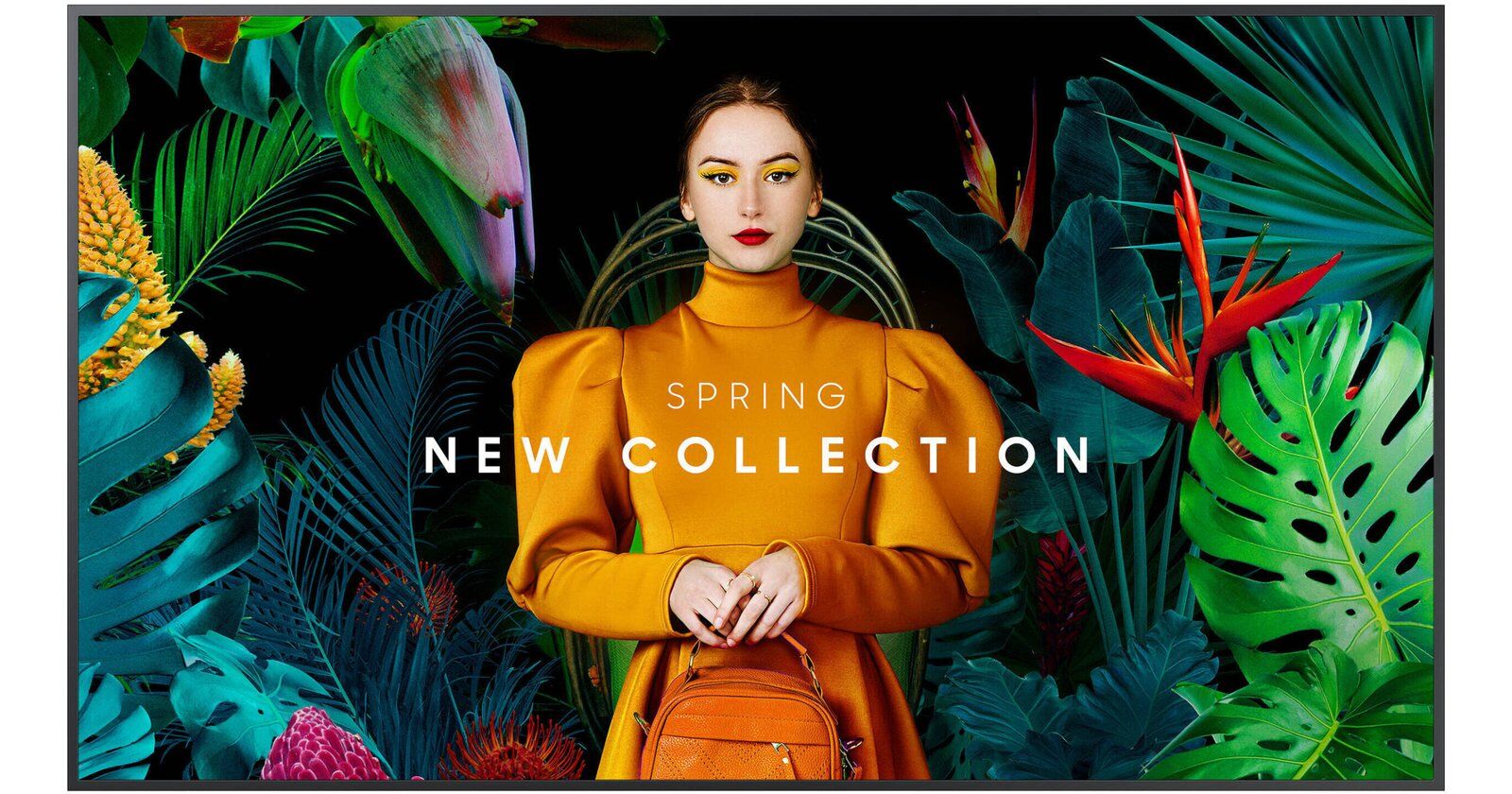

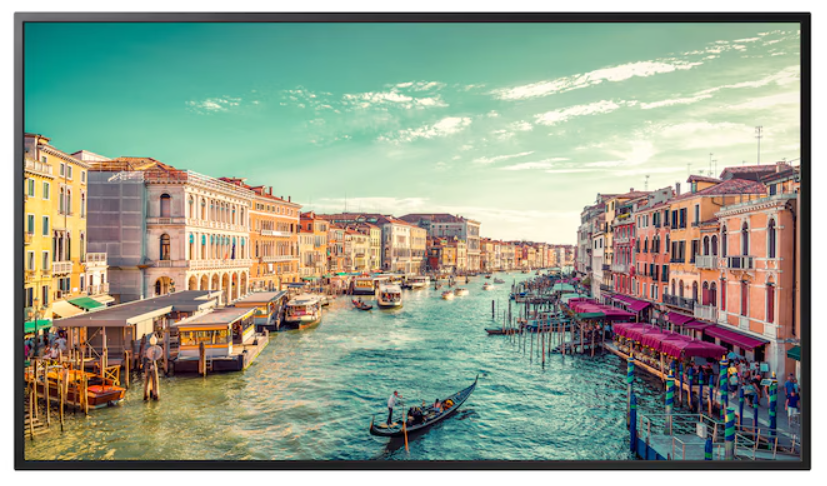

| Model Name | Samsung QBC 85″ Signage Display |
| Model Number | LH85QBCEBGCXGO |
| Screen Size | 85 Inch |
| Display Type | Crystal UHD Digital Signage |
| Resolution | 3840 x 2160 (4K UHD) |
| Panel Type | VA |
| Brightness (Typ) | 350 nit |
| Contrast Ratio | 4,000:1 |
| Viewing Angle | 178° / 178° |
| Response Time | 10 ms |
| Color Gamut | 72% NTSC |
| Glass Haze | 2% |
| Pixel Pitch | 0.487 x 0.487 mm |
| Operation Time | 16/7 |
| H-Scanning Frequency | 30 ~ 81 kHz |
| V-Scanning Frequency | 48 ~ 75 Hz |
| Maximum Pixel Frequency | 594 MHz |
| Dynamic Contrast | Mega |
| HDMI In | 3 |
| HDMI Version | HDMI 2.0 |
| HDCP Version | 2.2 |
| USB Ports | 2 |
| RJ45 LAN | Yes |
| RS232 In | Yes |
| RS232 Out | Yes |
| IR In | Yes |
| Audio Out | Stereo Mini Jack |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Power Supply | AC 100-240V, 50/60Hz |
| Power Consumption (On Mode) | 231 W |
| Power Consumption (Sleep Mode) | 0.5 W |
| Dimensions (WxHxD) | 1904.3 x 1085.3 x 28.5 mm |
| Package Dimensions | 2077 x 1222 x 210 mm |
| Net Weight | 41.9 kg |
| Package Weight | 53.9 kg |
| VESA Mount | 600 x 400 mm |
| Bezel Width | 13.9 mm (Even) |
| Bezel Color | Charcoal Black |
| Frame Material | Non-Glossy |
| Operating System | Tizen 7.0 |
| Internal Storage | 8GB |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 80% |
| EMC Class | Class A |
| Safety Compliance | 60950-1, 62368-1 |
| Orientation Support | Landscape / Portrait |
| Key Feature | Ultra Slim 28.5 mm Depth |
| Smart Calibration | Yes |
| Samsung VXT CMS | Supported |
