CRESTRON PANACAST 50
0- Category:CRESTRON

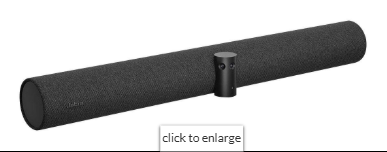

The Jabra® PanaCast® 50 intelligent video bar for Crestron Flex Systems combines microphones, speakers, and cameras in one front‑of‑room device. High-quality speakers and microphones deliver exceptional full-duplex performance. Three built-in conferencing cameras capture the room in panoramic 4K resolution with a seamless 180° horizontal field of view. The Jabra PanaCast 50 video bar for Crestron Flex systems is optimized for all leading UC platforms, including both Microsoft Teams® Rooms and Zoom Rooms® software.
Specifications
| Category | Specification |
|---|---|
| Product Name | Jabra® PanaCast® 50 Intelligent Video Bar for Crestron Flex Systems |
| Description | All-in-one video conferencing device with cameras, microphones, speakers optimized for UC platforms (Microsoft Teams Rooms, Zoom Rooms) |
Audio
| Speakers | (2) 2 in. (50 mm) woofers; (2) ¾ in. (50 × 20 mm) tweeters |
| Frequency Response | 80 Hz – 20 kHz |
| Microphones | (8) microphone beamforming array |
| Mic Pickup Range | Suitable for rooms up to ~15 × 15 ft (4.5 × 4.5 m) |
| Mic Sensitivity | –37 dBFS |
| Mic Frequency Response | 100 Hz – 8 kHz |
Video
| Cameras | (3) built-in cameras |
| Resolution | 3840 × 1080 @ 30 fps; 13 MP total sensor resolution |
| Field of View | 180° horizontal × 54° vertical |
| Zoom | 6× lossless digital zoom; automatic framing of participants |
Indicators
| Status Indicator | (1) multicolor LED (connection, mute, pairing, firmware) |
Connectors & Interfaces
| Power | (1) AC power connector (for included AC power pack) |
| AUX In | (1) 3.5 mm AUX port (future use) |
| USB-C | (1) USB-C connector — connects to conferencing system, room controller, or laptop |
| Ethernet | (1) RJ-45 connector (not used in Crestron Flex systems) |
Power
| Input | From external power pack; 100-240 VAC, 50/60 Hz |
| Output | 5 A @ 12 V |
Environmental
| Operating Temperature | 41°F to 95°F (5°C to 35°C) |
Mechanical / Physical
| Enclosure | Black housing with rear air vents and integrated adjustable mounting bracket |
| Mounting Options | Wall mount (integrated bracket); optional table mount or VESA-compliant screen mount (sold separately) |
| Dimensions (W×H×D) | 25.60 in × 3.1 in × 4.90 in (650 mm × 90 mm × 125 mm) |
| Weight | 4.85 lb (2.2 kg) |
