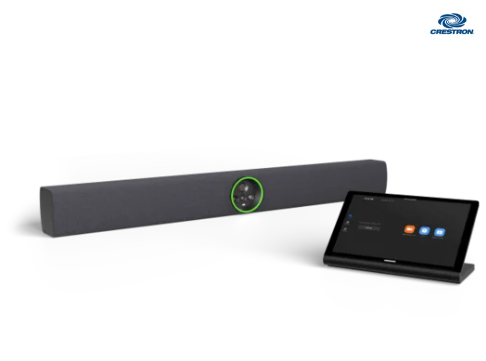

CRESTRON V70
0- Category:CRESTRON
Put high-performance hybrid meetings front and center
Videobar 70 is a single, easily deployable device packed with everything you need to create premium hybrid experiences. Intelligent video capabilities from four high-resolution cameras. Stereo speakers with the capacity to fill the room with sound. Beamforming microphones that pick up every word clearly. Android OS® for easy install. Set up more rooms in less time and give medium-to-large spaces the equity that modern work demands.
Specifications
Crestron Videobar 70 — Technical Specifications
| Category | Specification |
|---|---|
| Product Type | All-in-one collaboration bar for medium to large rooms |
| Speakers | Dual 10 W stereo speakers |
| Microphone | 24-microphone linear array |
| Audio DSP Features | Acoustic echo cancellation, dereverberation, automatic gain control, dynamic noise suppression, adaptive beamforming, speaker volume control, speaker EQ & limiting (fixed) |
| Camera Configuration | Quad camera setup: 1 main camera + 3 sub-cameras with 14° overlap |
| Main Camera Optics | 20 MP 1-inch sensor |
| Camera Field of View | Main: ~84º horizontal, ~54º vertical; Sub-cameras: ~41º horizontal, ~23º vertical |
| Camera Resolution | Main: 5472 × 3078; Sub-cameras: 3840 × 2160 |
| Zoom | Up to 7.5× digital zoom |
| Camera Shutter | Mechanical, electronically controlled |
| Operating System | Android OS (QCS8250 chipset) |
| Memory | 12 GB LPDDR5; 128 GB UFS storage |
| Network Connectivity | Gigabit Ethernet; Dual-band Wi-Fi 6 (2×2) |
| Bluetooth | Bluetooth 5.2 (future use) |
| UC Client Support | Zoom Rooms software (integrated) |
| Management Client | Crestron XiO Cloud service |
| Content Ingest | HDMI input or direct sharing |
| Display Output | Supports up to two 4K displays |
| Video Input/Output | HDMI input (1080p30), HDMI output (4K30) |
| Video Protection | HDCP 1.4 & 2.2 |
| Audio Input Signal | HDMI two-channel LPCM |
| Connectors | HDMI (2 in, 3 out), LAN (2 RJ-45), USB-A (2), USB-C (2), 3.5mm audio In/Out |
| BYOD Support | Yes via HDMI & USB-C or Crestron AirMedia solutions |
| Power Input | 19V DC via external 100–240V AC adapter (included) |
| Operating Temp | 0° to 40° C (32° to 104° F) |
| Enclosure | Black plastic with integrated mount |
| LED Indicators | Green = mic unmuted; Red = mic muted |
| Mounting Options | Wall mount (integrated bracket) and optional tabletop/VESA mounts |
| Dimensions | H: 110 mm (4.33 in); W: 980 mm (38.58 in); D: 96 mm (3.77 in) |
| Weight | 6 kg (13.2 lb) |
