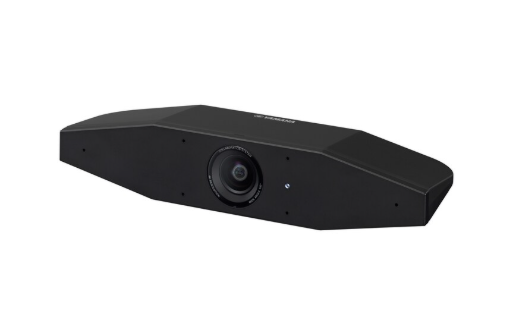

CS-500Video Conference System for Huddle Spaces
0- Category:YAMAHA
Camera, and microphone remote collaboration device.
- Newly developed SoundCap Eye™
- 4K Camera with Smart Framing
- One-USB connection to start the collaboration
- Engineered Adaptive echo canceller and Noise reduction
- Hexa-microphone Beamforming
- Iconic mute button of remote control
- Multiple installation options
Specifications
| Category | Specification |
|---|---|
| Dimensions | W 261 mm × D 76 mm × H 51 mm |
| Weight | 0.6 kg |
| Power Requirements | AC 100 – 240 V (50/60 Hz) |
| Maximum Power Consumption | 15.0 W |
| Operating Temperature | 0 ℃ – 40 ℃ |
| Operating Humidity | 20 % – 85 % (No condensation) |
| Storage Temperature | -20 ℃ – 60 ℃ |
| Storage Humidity | 20 % – 85 % (No condensation) |
| Status Indicator | Yes |
| Included Accessories | Read this first, Safety Guide, USB 2.0 cable (Type C–A, 5 m / 16.4 ft), HDMI cable (2 m / 6.6 ft), Remote control (RC-RBT1), Lens cap, Coin battery (CR2032) × 2, AC adaptor with power cord (CW2002100), Cable tie |
| Optional Accessories | Mounting Accessory BRK-WL1, Mounting Accessory BRK-TV1 / BRK-TV2, USB 3.2 Gen 1 cable (A–C) 10 m (CBL-L10AC), USB 3.2 Gen 1 cable (A–C) 25 m (CBL-L25AC) |
| Supported Operating Systems | Windows 11, Windows 10, macOS 14, macOS 13, macOS 12, Chrome OS |
| Interface | USB (Type-C): USB 2.0 / 3.2 Gen 1, UAC 2.0, UVC 1.1, DisplayLink; HDMI: Version 1.4; Supported resolutions: 720 × 480, 1,280 × 720, 1,366 × 768, 1,920 × 1,080; Frame rate: 30 fps; HDCP: Version 1.4; HDMI-CEC: Power control / Input selection; Bluetooth; Wi-Fi |
| Installation | Above display (up to 50 mm thickness): Embedded leg; Above display (rigid): BRK-WL1 / BRK-TV1 / BRK-TV2 (optional); Below display: BRK-WL1 / BRK-TV1 / BRK-TV2 (optional); Wall mount: BRK-WL1 (optional); Tripod installation: Embedded tripod screw hole |
| Microphones | Hexa-microphone (6 × MEMS) |
| Microphone Coverage | Frontward 110° audio pickup; Max distance: 6.0 m (Face focus beamforming OFF) / 3.0 m (Face focus beamforming ON) |
| Microphone Frequency Response | 100 Hz – 16 kHz |
| Audio Signal Processing | Adaptive echo canceller, Noise reduction, Automatic tracking, Automatic gain control, Automatic room EQ, Dereverberation, SoundCap Eye (Face focus beamforming, Self-silence, Self volume balancer) |
| Camera Field of View (4K) | Diagonal: 120°, Horizontal: 110° |
| Focus Distance | 0.5 m (1.6 ft) to ∞ |
| Frame Rate | 6 fps, 7.5 fps, 10 fps, 15 fps, 30 fps |
| Video Resolution | 3,840 × 2,160; 2,560 × 1,440; 1,920 × 1,080; 1,280 × 720; 640 × 360 |
| USB Video Output Format | YUY2, MJPEG, NV12 |
| Camera Control | Smart framing (Group / Individual / Speaker tracking) or Manual; Pan-Tilt-Zoom (PTZ); Configurable presets × 2; Maximum zoom ratio: 5.0×; People detection max distance: 4.5 m |
| Remote Control Functions | Power, Microphone mute × 2, Speaker volume, Camera ePTZ, Smart framing ON/OFF, Camera preset × 2, OSD menu control |
| OSD Menu | Meeting area, Smart framing mode, Camera preset, Microphone, Speaker, Bluetooth |
| Management Software | Yamaha CS Manager |
| Management Functions | Device status monitoring, Security settings, Power settings, Audio settings, Camera settings, Smart framing settings, Bluetooth settings, HDMI screen settings, Network (Wi-Fi) settings, NTP settings, Firmware upgrade, Factory default reset, Log retrieval |
