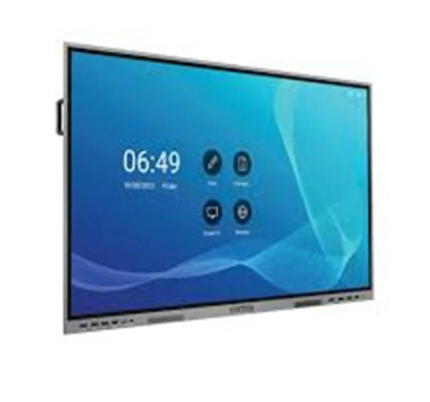

PANASONIC LH-75RT1ND
0- Category:PANASONIC RT Series
Product Overview
The Android Intelligent Commercial Display System offers a comprehensive range of sizes and configurations to meet diverse business needs. The RT Series delivers high-quality digital output with seamless installation and multiple connectivity options, making it ideal for corporate and retail environments.
Key Features
- Engineered for 24×7 operation
- High-brightness commercial-grade panels
- Wireless connectivity with built-in Wi‑Fi and Bluetooth
- Flexible control via LAN and RS‑232
- SignEdge embedded content management software
- Versatile connectivity with multiple input terminals
- BYOD support for Windows, Android, and iOS devices
- Android 14 SoC for superior performance and security
- Integrated RTC for accurate time sync and scheduling
Specifications
Screen Size
190.5cm
Brightness (typical)
450cd/m²
Resolution
3840 x 2160
Panel Life Time ( Min. )
30000 Hrs or More
Response Time (typical)
8ms
Viewing Angle
178 x 178
Surface Hardness
Toughened Glass with Level 7 of MOHS Standard
Panel Technology
IPS
Built-in System
Operating System
Android 11
CPU
Dual Quad core processor and with 1.9Ghz (A55×4)
Memory
4GB
Storage
32GB
WiFi and Bluetooth
Wifi 802.11ac/b/g/n/a/ax
BT 5.2
Monitor Connectivity
Input Ports
3 x HDMI (4K upto 60Hz), HDCP 2.1, CEC, ARC (HDMI1), 1 x VGA (Optional), 1 x USB 2.0,
4 x USB 3.0 (Front 2, Rear 2) with autoswitching function, 1 x USB (C Type) Touch, PD65W & LAN network sharing, 1 x Audio IN, 1 x DP In, 1 x Micro SD (128 GB)
Output Ports
Audio Port -1 (SPDIF), 1 x HDMI Out,
2 x Touch Out
External Control
RS-232, RJ 45
Front Connectivity
IR Receiver
Yes
Speakers Built in
20W x 2
Pen
2 x Writing pens
Plug In
Yes
Touch Technology
Type of Touch Technology
40 touch points
Accuracy
±1.5mm
Mechanical
Product Dimensions (WxHxD)
1709×1020×88mm(W×H×D)
Package Dimensions (WxHxD)
1863×1140x225mm(WxHxD)
Product Weight
47.30kg
Package Weight
60.55kg
Vesa Mounting
800×400mm
Bezel Width
left and right is 16.5mm, top side is 23.5mm and bottom side is 44.95mm
Operating Hours
24 x 7
Environmental Conditions
Operating Temperature
00~45 Degree
Operating Humidity
10%~90%RH
Power Consumption
Typical 200W
Max 360W
Mechanical Features
Interactive White Board Software
Support in Android and Windows*
Features
Writing, Pen, Palm Eraser, Save, Screen Capture, Storage and Tool Bar. Supports 3rd party applications, recording feature, USB WEB Cam Compatible, Support PPT, Word, PDF, Image, Video Play, OPS Stot available
Accessories
2 Pens, Power Cables & Wall Mount Kit
Device Management / Touch Screen Management
Capability to connect & disconnect all devices / group of devices from central location. Application have capability to share and finish casting of BYOD device and have a robust authorization management. Power off & Reboot devices from central location also control external devices such as USB cameras, Speakers, control brightness & clear cache. Device active trend and deactive displays. Anti-Glare Treatment.
Certification
BIS
YES
