Engage customers and vividly display business messaging with affordable Samsung SMART Signage DCE Series, featuring high picture quality with 350 nit brightness (32″ – 330nit) and reliable 16/7 usage. With a slim, sleek design for extended indoor use in retail stores, Quick Service Restaurants (QSRs), small businesses and corporate conference rooms and offices, DCE Series displays stunningly present a range of immersive and timely information with captivating picture quality

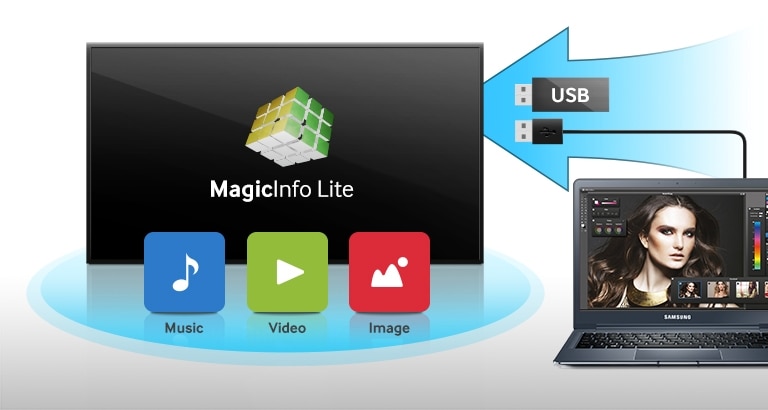

MagicInfo Lite Player uses a sophisticated technology to play a huge range of content including video, images, photos on demand, or from a pre-set schedule. Customers can easily play files from, or transfer between, the large internal memory and external USB devices plugged into the in-built port. The MagicInfoSlide folder on the USB memory has content that is listed in alphabetical order which is easier and convenient to use as it does not require separate schedules.

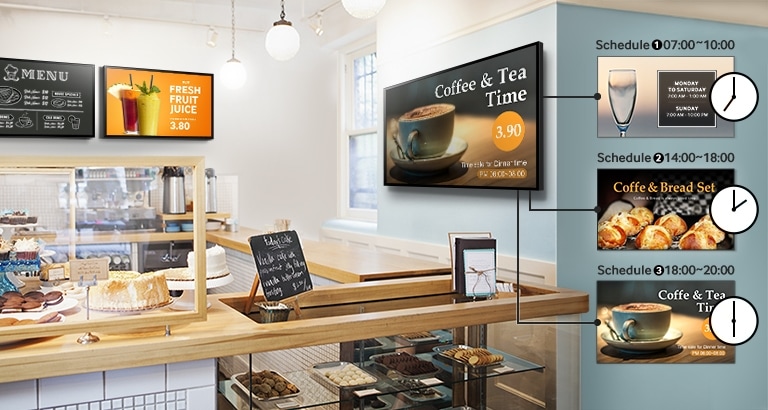

MagicInfo Lite solution comes with the embedded media player, and is able to extend the remote content management to be over network through the MagicInfo server. Media contents of the USB memory stick plugged in to the DCE Series displays can be scheduled to play from a remote PC.
The connection to MagicInfo server also allows remote monitoring and management of the DCE Series displays. Device information, content playback schedules, network data monitoring, time scheduling, alarms and various controls can all be done remotely, without the need to be in front of the displays.

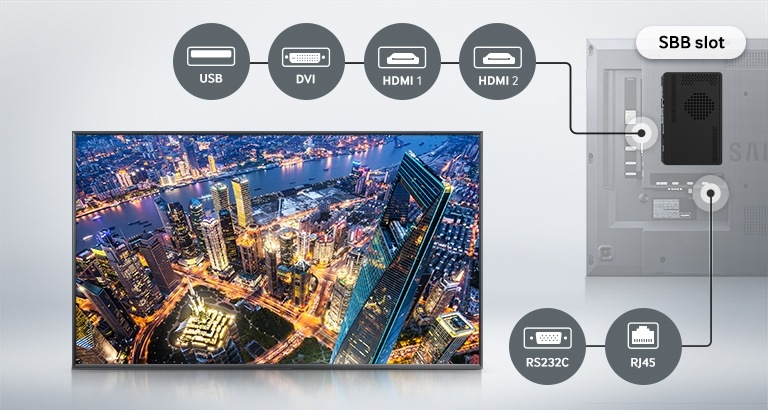

Connect the SMART Signage DCE Series to other digital signage easily with interfaces based on your specific needs. The displays provide not only the essential connections businesses use most frequently, but also support a wide range of source device types. Interfaces include HDMI, DVI, D-sub, Component and Composite input as well as RS-232C and RJ45 for extensive connectivity.
In addition, DCE series has a slot to attach a SBB player, which can transform the signage into all-inclusive digital signage solutions.
Series Name
Series Name
DC Series
Display
Screen Size
32
Panel Technology
60Hz D-LED BLU
Resolution
1920×1080
Aspect Ratio
16:9
Brightness
350
Contrast Ratio (Typical)
5000:1
Viewing Angle (H/V)
178° / 178°
Response Time
8ms
Direct Lit
Yes
Connectivity
Input
RGB: Analog D-SUB, DVI-D VIDEO: HDMI1,HDMI2, CVBS AUDIO: Stereo mini Jack, USB: USB 2.0 x 1
Output
AUDIO: Stereo mini Jack
External Control
RS232C(In) thru stereo jack, RJ45
Sensor
IR, Ambient Light
Features
Built-in Speakers
10W x 1
Dimensions
Without Stand (W x H x D)
28.4″ x 16.5″ x 2.0″
Packaging (W x H x D)
32.1″ x 19.3″ x 5.2
Bezel Width
10.5mm (Top/Side), 15.0mm (Bottom)
Weight
Product Weight
10.6 lb.
Package Weight
13 lb.
Service
Standard Warranty
3 years onsite parts/labor
Included in Box
Included in Box
Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN)/Audio(OUT)/IR(IN) Adapter
Optional Wall Mount Kit
WMN4070SD, WMN450MD
Optional Stand
STN-L3240E
Optional Media Player
Embbeded, SBB (Not attachable)
Mechancial Specs
VESA Mount
200 x 200 mm
Operation
Operating Temperature
0℃~ 40℃
Operating Humidity
10~80%
Recommended Run Time
16/7
