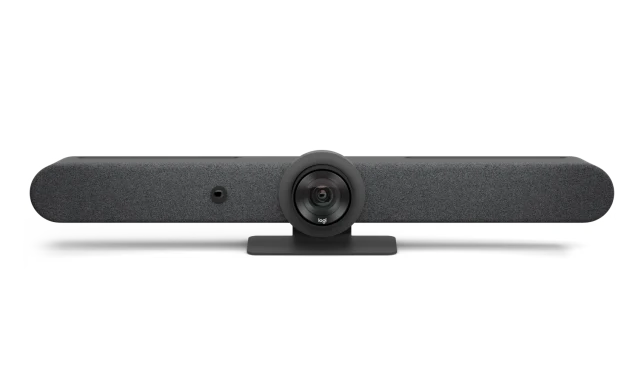

Logitech Rally Bar is the premier video bar for medium to large meeting rooms. Discover remarkably simple, all-in-one video conferencing with built-in AI technology, brilliant optics, and powerful audio.
Specifications
| Category | Specification |
|---|---|
| Product Type | All-in-one video collaboration bar for huddle and small meeting rooms running RoomOS or Microsoft Teams Rooms mode |
| Camera | 12 MP camera; 1/2.3″ CMOS; 30 fps |
| Field of View (FOV) | 120° horizontal, 95° vertical |
| Zoom | 5× digital zoom |
| Camera Features | Auto framing (face detect), speaker tracking, auto brightness & white balance, fixed focus lens, image auto-rotation |
| Visual Indicators | Camera on green LED; power indicator |
| Video Standards | H.263, H.264, AV1 |
| Video Inputs | 1× HDMI input (up to 3840×2160 @ 30 fps), 1× USB-C input (up to 3840×2160 @ 30 fps) |
| Video Outputs | 2× HDMI outputs (up to 3840×2160 @ 60 fps), touchscreen compatible |
| Video Resolution (Meeting) | Encode/decode up to 1920×1080 @ 30 fps; content up to 3840×2160 @ 15 fps |
| Wireless Sharing | Webex app up to 3840×2160 @ 7.5 fps, Miracast up to 1920×1080 @ 60 fps, Apple AirPlay screen mirroring (varies by version) |
| Protocols | H.323, SIP, Webex, WebRTC |
| Bandwidth & MultiSite | Up to 20 Mbps; multi-site support with adaptive resolutions |
| Audio | 4-element microphone array with speaker tracking; external mic support recommended for larger rooms |
| Wireless Connectivity | Wi-Fi 802.11a/b/g/n/ac (2.4/5 GHz, MIMO) |
| Other Interfaces | Bluetooth & Bluetooth Low Energy, 1× USB-A (for peripherals), 1× micro-USB (service), factory reset pinhole |
| BYOD & USB-C Passthrough | USB-C camera, mic, and speaker passthrough; display extension up to 3840×2160 @ 30 fps |
| Network Interfaces | 1× LAN RJ-45; 1× PoE RJ-45 for Room Navigator pairing |
| Management & Compatibility | Cisco Control Hub for deployment and analytics; RoomOS 11 or later; native Webex and Teams Rooms modes |
| Security & Network Features | End-to-end encryption, IPv4/IPv6, QoS, 802.1X, firewall traversal (Cisco Expressway) |
| Power | 100–240 VAC, 50/60 Hz; 12 V DC input; peak 86 W |
| Operating Temp & Humidity | 0°C to 35°C (32°F to 95°F); 10–90% RH |
| Storage Temp | –20°C to 60°C (–4°F to 140°F), 10–90% RH |
| Dimensions | Width: 21 in (53.4 cm); Height: 3.2 in (8.2 cm); Depth: 2.5 in (6.4 cm) |
| Weight | 3.3 lb (1.5 kg) |
| Mounting | Flexible above or below displays; integrated mounting hardware and gap bar |
| Approvals & Compliance | Radio, EMC, safety and environmental regulatory approvals; RoHS/WEEE compliance |
