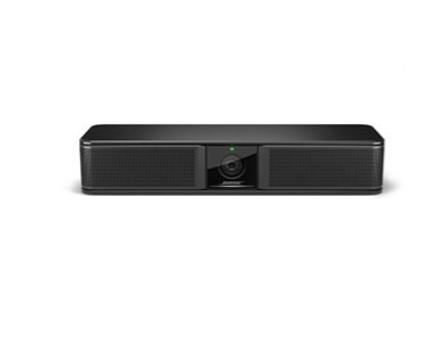

Videobar VB-S
0- Category:BOSE
The Videobar VB-S is a compact, all-in-one USB videoconferencing device that brings signature Bose Professional sound and quality to your meeting space. With plug-and-play simplicity, it’s quick and easy to set up and use—no more videoconferencing hardware headaches. In small meeting spaces, the VB-S ensures voices on the call sound natural, while multimedia presentations and Bluetooth® audio are rich and engaging. It automatically focuses on voices in the room and reduces unwanted noise; plus, a 4K ultra- HD camera delivers sharp video, helping remote participants feel like they’re in the room. Its sleek, low-profile design adds to the professional look of any meeting space. Connect the VB-S to a computer, and it creates a complete videoconferencing solution for hosting professional-quality meetings using Google Meet, Microsoft Teams, Zoom and more. The VB-S is the videoconferencing solution that’s simple to set up, easy to use, and delivers a high-quality meeting experience—every time.
| Category | Parameter | Specification |
|---|---|---|
| Amplification | Maximum Peak Power (Symmetrical) | 15 W |
| Amplification | Rated Power (Symmetrical) | 15 W, < 0.3% distortion over frequency range |
| Compliance | Safety | IEC/UL/EN 60065:2014/A11:2017, IEC/UL/EN 62368-1:2014/A11:2017 |
| Compliance | Environmental | RoHS |
| Compliance | EMC | FCC Part 15B Class B, ICES-003 Class B, CISPR 13, EN55032 Class B, EN55035, EN61000-3-2, EN61000-3-3, BSMI CNS13439 |
| Camera & Video | Focus Distance | 0.5 m (1.6 ft) to ∞ |
| Camera & Video | Field of View (FOV) | 123° diagonal × 115° horizontal × 81° vertical |
| Camera & Video | Image Sensor | 8 MP |
| Camera & Video | Lens | Up to 5x digital zoom |
| Camera & Video | Positioning | 2 autoframing modes (Group or Individual), manual pan-tilt-zoom (PTZ) with configurable presets |
| Camera & Video | Processing | Automatic white balance, automatic brightness, digital noise reduction |
| Camera & Video | Supported Video Resolutions | UHD 2160p (4K), 1080p, 720p, 960×480, 848×480, 640×480, 640×360, 432×240 (30 fps) |
| Camera & Video | USB Device Video Class (UVC) | v1.1 |
| Camera & Video | Video Encoding | H.264, M-JPEG |
| Communication Ports | Bluetooth | Bluetooth 4.2 HSP, A2DP, AVRCP, Bluetooth Low Energy |
| Communication Ports | Network | Wi-Fi 802.11ac (wireless) |
| Electrical | AC Power Connector | External power supply with local power cord (included) |
| Electrical | AC Power Input | 110–240 VAC, 50/60 Hz, 1.5 A maximum |
| General | System Requirements | Windows 8.1 or 10 / macOS 10.10 or later / Chrome OS |
| General | Software Applications | Videobar Configuration (Windows, macOS, web browser), Videobar Administration (Windows), Videobar Mobile (Android, iOS) |
| General | Computer Interface Connection | USB Type-C (USB 3.0 UAC, UVC, HID) |
| Microphone | Microphone Type & Quantity | 4 microphones |
| Microphone | Pickup Range | 4.0 m (13.1 ft) |
| Microphone | Technology | Static and adaptive dynamic beam-forming, exclusion zones, AEC, digital noise suppression |
| Indicators & Controls | LED Status Indicators | LED light bar, status LED, Bluetooth LED |
| Physical | Color | Black |
| Physical | Suspension / Mounting | Tabletop stand, wall-mount bracket, display mounting kit (optional), mud ring (optional) |
| Physical | Operating Temperature | 0 °C to 40 °C, 90% non-condensing humidity |
| Physical | Product Dimensions (H×W×D) | 267 × 48 × 87 mm |
| Physical | Net Weight | 1.0 kg |
| Physical | Storage Temperature | −40 °C to 70 °C, 93% relative humidity |
| Physical | Shipping Weight | 2.3 kg |
| Performance | Calculated Maximum SPL @ 1 m | 86 dB (IEC 60268-5, mono input, wall-mounted) |
