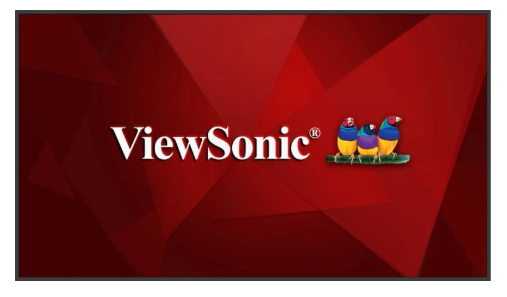

Viewsonic-TD3207
0- Category:Viewsonic Led
- Durable and scratch-resistant IP65 front touchscreen
- Highly responsive 10-points PCAP touch technology
- Long-lasting 24/7 usage
- Adaptable to multi-screen orientations
- Ease of installation with VESA-mountable design
Specification
| Index | Specification |
|---|---|
| Display Size (in.) | 32 |
| Viewable Area (in.) | 31.5 |
| Panel Type | VA Technology |
| Resolution | 1920 × 1080 |
| Resolution Type | FHD (Full HD) |
| Static Contrast Ratio | 4,000:1 (typ) |
| Dynamic Contrast Ratio | 50M:1 |
| Light Source | LED |
| Brightness | 450 cd/m² (typ) |
| Colors | 16.7M |
| Color Space Support | 8-bit true |
| Aspect Ratio | 16:9 |
| Response Time (Typical GTG) | 5 ms |
| Response Time (GTG w/ OD) | 4.6 ms |
| Viewing Angles | 178º horizontal, 178º vertical |
| Backlight Life (Hours) | 50,000 hrs (min) |
| Curvature | Flat |
| Refresh Rate (Hz) | 60 |
| Blue Light Filter | Yes |
| Low Blue Light | Software solution |
| Color Gamut | NTSC: 72% (Typ) / sRGB: 104% (Typ) |
| Pixel Size | 0.364 mm (H) × 0.364 mm (V) |
| Touch Screen | Projected Capacitive, 10-point multi-touch |
| Surface Treatment | Glossy, Hard Coating (7H) |
| Cover Glass Thickness | 3 mm |
| Protection Rating – IP65 | Water & dust resistant (front panel) |
| Protection Rating – IK08 | Impact resistant |
| PC Resolution (max) | 1920 × 1080 |
| Mac® Resolution (max) | 1920 × 1080 |
| PC Operating System | Windows 10/11 certified; macOS tested |
| Mac® Resolution (min) | 1920 × 1080 |
| USB 2.0 Type B | 1 |
| 3.5 mm Audio Out | 1 |
| HDMI 1.4 | 1 |
| DisplayPort | 1 |
| Power In | DC Socket (Center Positive) |
| RS232 In | 1 |
| Internal Speakers | 2 W × 2 |
| Eco Mode (Conserve) | 27 W |
| Eco Mode (Optimized) | 35 W |
| Power Consumption (Typical) | 43 W |
| Power Consumption (Max) | 45.5 W |
| Voltage | AC 100–240 V |
| Stand-by Power | 0.5 W |
| Power Supply | External Power Adapter |
| Physical Controls | 1, 2, Up, Down, Left, Right, Power |
| On-Screen Display (OSD) | Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Info, Manual Image Adjust, Setup, Memory Recall |
| Operating Temperature | 32°F – 122°F (0°C – 50°C) |
| Humidity (non-condensing) | 20% – 90% |
| VESA Mount Compatibility | 400 × 200 mm; 200 × 100 mm |
| Input Signal (Horizontal Frequency) | 15 – 73 kHz |
| Input Signal (Vertical Frequency) | 47 – 75 Hz |
| Digital Sync | TMDS – HDMI (v1.4), PCI-E – DisplayPort (v1.2) |
| Tilt (Forward/Back) | N/A |
| Net Weight (lbs / kg) | 28.2 lb / 12.8 kg |
| Net Weight Without Stand (lbs / kg) | 28.2 lb / 12.8 kg |
| Gross Weight (lbs / kg) | 34.2 lb / 15.5 kg |
| Packaging Dimensions (in / mm) | 34 × 22.7 × 6.4 in / 863 × 577 × 163 mm |
| Physical Dimensions (in / mm) | 29.4 × 17.8 × 2.5 in / 747 × 451 × 64 mm |
| Physical Without Stand (in / mm) | 29.4 × 17.8 × 2.5 in / 747 × 451 × 64 mm |
| Regulations | cTUVus, FCC-B, ICES003, Energy Star, CEC, CE, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO |
| Package Contents | TD3207 × 1, 3-Pin Plug (IEC C13 / CEE22) × 1, HDMI Cable (v1.4) × 1, USB A/B Cable (v2.0) × 1, AC/DC Adapter × 1, Quick Start Guide × 1 |
| Recycle / Disposal | Please dispose of in accordance with local, state or federal laws |
| Warranty | May vary by market |
| Power Management | Complies with Energy Star standards |
