| Index | Specification |
|---|---|
| Model Name | Samsung QB24C-T |
| Model Code | LH24QBCTBGCXEN |
| Screen Size | 24 Inch (23.8″) |
| Display Type | Interactive Small Signage Display |
| Resolution | 1920 x 1080 (Full HD) |
| Panel Type | ADS Panel |
| Brightness | 250 nits (without glass) |
| Contrast Ratio | 1000:1 |
| Dynamic Contrast Ratio | Mega |
| Viewing Angle | 178° / 178° |
| Response Time | 14 ms |
| Color Gamut | 72% NTSC |
| Pixel Pitch | 0.2745 x 0.2745 mm |
| Glass Haze | 25% |
| Operating Time | 16/7 |
| Orientation | Landscape / Portrait |
| Touch Support | Yes |
| Touch Technology | Capacitive |
| Multi Touch | 10 Point Multi-Touch |
| HDMI Input | 1 x HDMI 1.4 |
| USB Port | 1 x USB |
| Audio Output | Stereo Mini Jack |
| IR Input | Yes |
| RS232 Input | Yes |
| LAN Port | RJ45 |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | 38.5W |
| Sleep Mode | 0.5W |
| Dimensions (WxHxD) | 547.9 x 334.4 x 34.6 mm |
| Package Dimensions | 620 x 419 x 122 mm |
| Net Weight | 4.0 kg |
| Package Weight | 5.2 kg |
| Operating Temperature | 0°C to 40°C |
| Humidity | 10% to 80% |
| VESA Mount | 100 x 100 mm |
| Frame Material | Non-Glossy |
| Operating System | Tizen 7.0 |
| Internal Storage | 8GB |
| IP Rating | IP5X |
| EMC Class | Class B |

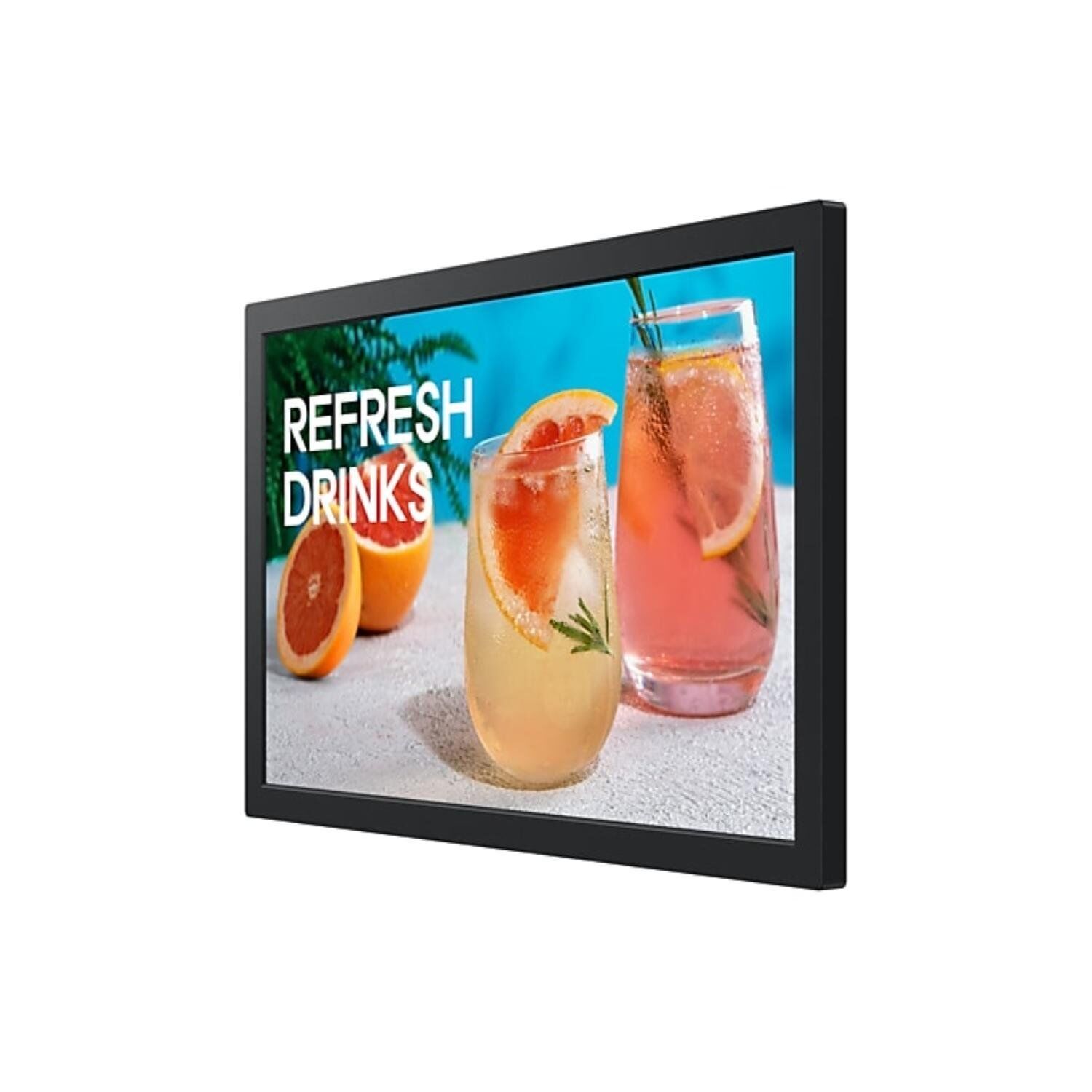

Touch Display
QB24C-T
- Small display, Big impact
- 10 point multi-touc. Fast, effective touch capabilities
- EMS Class B & IP5X. Safe operation & reliable performance
