| Specification Category | Details |
|---|---|

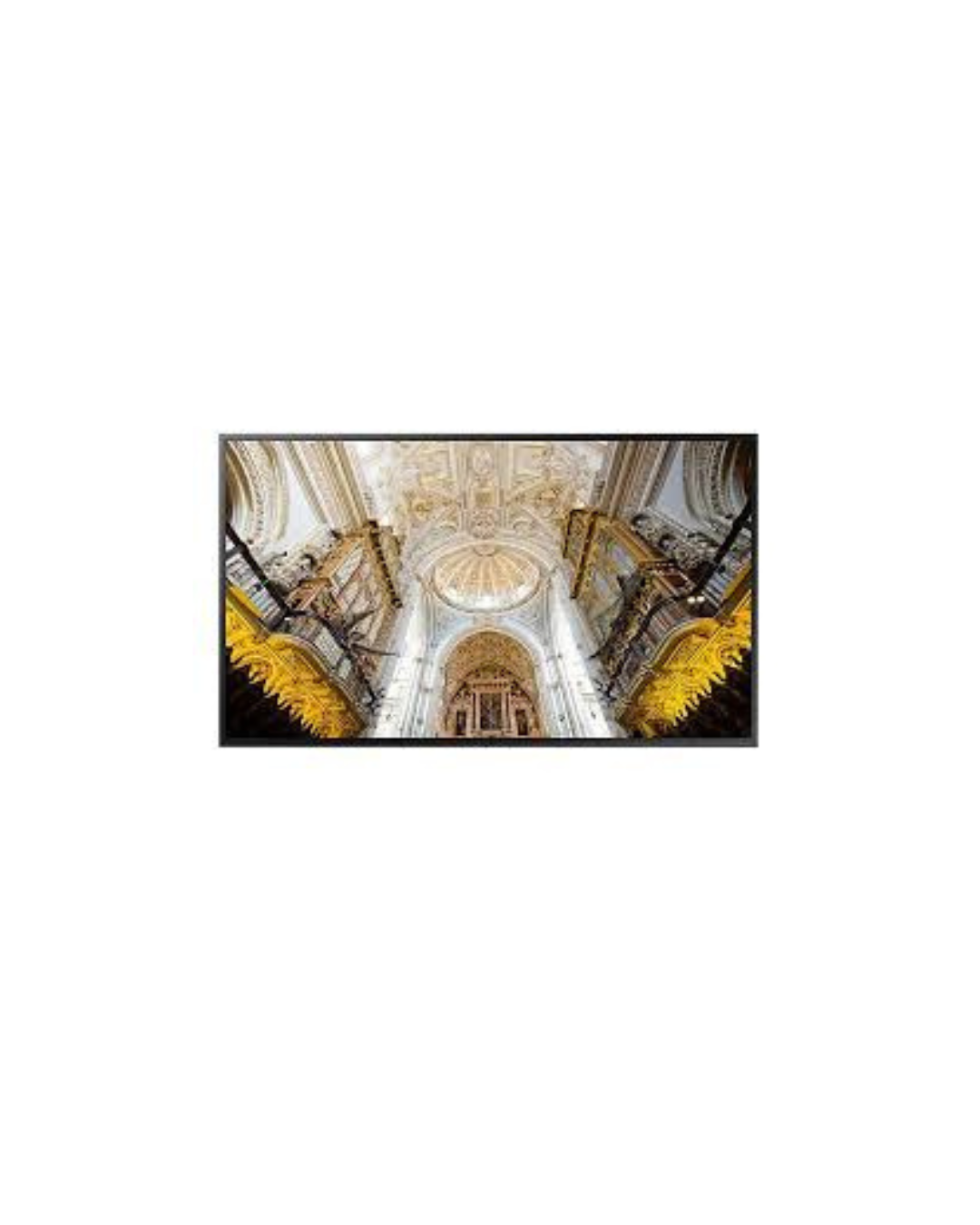

| Model Name | Samsung QBN Series 43″ Signage Display |
| Model Number | LH43QBNEBGC/UE |
| Screen Size | 43 Inch |
| Display Type | UHD 4K Digital Signage |
| Resolution | 3840 x 2160 |
| Panel Type | New Edge, 60Hz |
| Brightness (Typical) | 350 nit |
| Contrast Ratio | 5,000:1 |
| Viewing Angle | 178° / 178° |
| Response Time | 8 ms |
| Color Gamut | 72% |
| Glass Haze | 0% |
| Pixel Pitch | 0.2451 x 0.2451 mm |
| Operation Time | 16/7 |
| H-Scanning Frequency | 30 ~ 81 kHz |
| V-Scanning Frequency | 48 ~ 75 Hz |
| Maximum Pixel Frequency | 594 MHz |
| Dynamic Contrast | Mega |
| Intelligent Picture Quality | Yes |
| HDR Support | Yes |
| Internal Player | MagicINFO Player S6 |
| Operating System | Tizen OS |
| Security Platform | Samsung Knox |
| HDMI In | 2 |
| DVI In | Yes |
| USB Ports | 2 |
| RJ45 LAN | Yes |
| RS232 In | Yes |
| RS232 Out | Yes |
| IR In | Yes |
| Audio In | Yes |
| Audio Out | Stereo Mini Jack |
| Wi-Fi | Yes |
| Power Supply | AC100-240V, 50/60Hz |
| Power Consumption (On Mode) | 121 W |
| Power Consumption (Sleep Mode) | 0.5 W |
| Dimensions (WxHxD) | 970.2 x 563.2 x 58.5 mm |
| Package Dimensions | 1097 x 677 x 151 mm |
| Net Weight | 9.9 kg |
| Package Weight | 12.9 kg |
| VESA Mount | 200 x 200 mm |
| Bezel Width | 10.5 mm (Top/Side), 11.8 mm (Bottom) |
| Frame Material | Non-Glossy |
| Orientation Support | Landscape / Portrait |
| Optional Wall Mount | WMN4070SE |
| Optional Stand | STN-L4300H |
| IP Rating | IP5x |
| Operating Temperature | 0°C to 40°C |
| Humidity | 10% to 80% |
| Energy Efficiency | B |
QBC-E
QB43
LH43QBNEBGC/UE
- Intelligent Picture Quality
- Embedded MagicINFO S6 backed by TIZEN OS
- Enhanced Security and Remote Management
