Crestron FT2-1400-ELEC-PTL-B

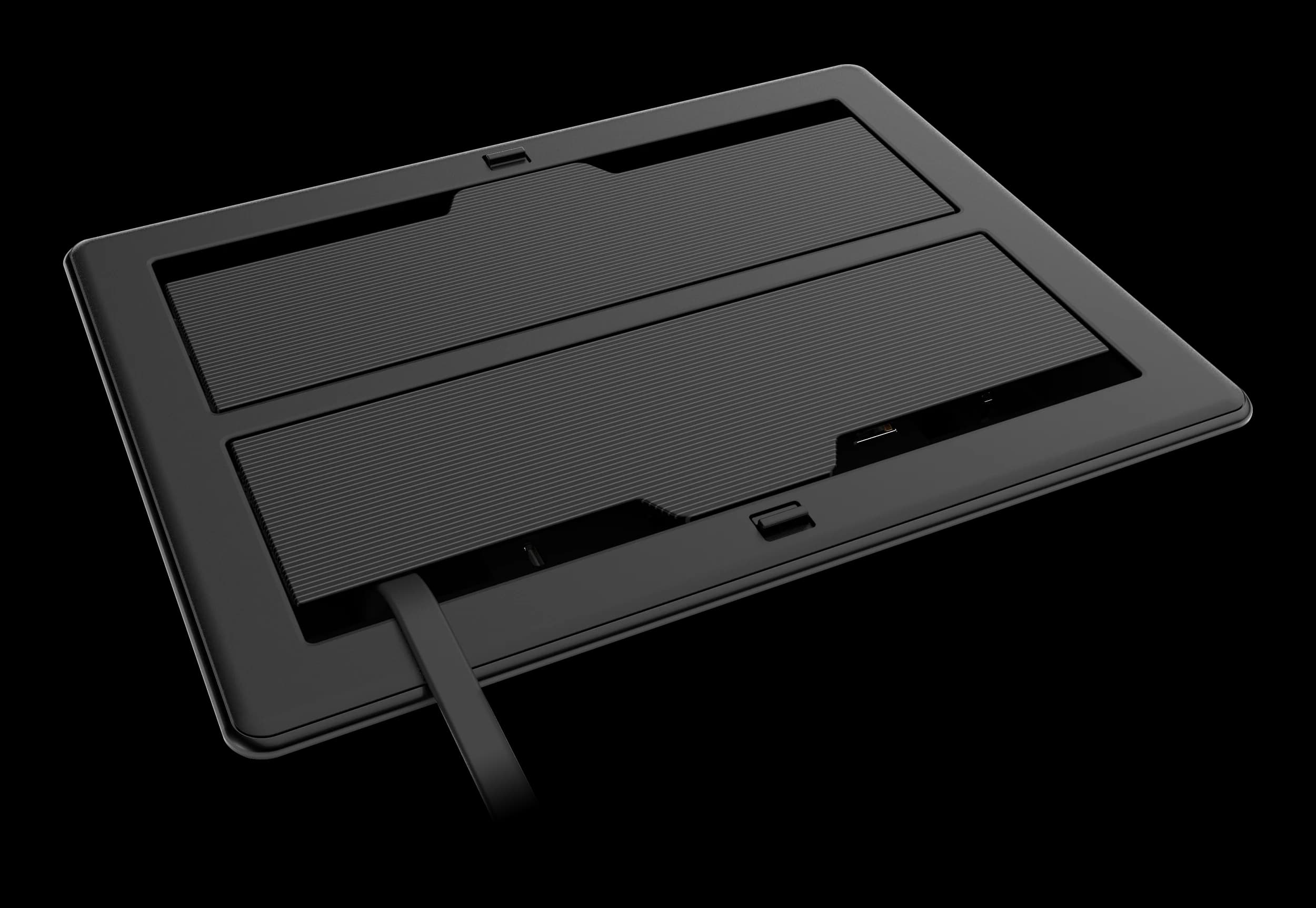

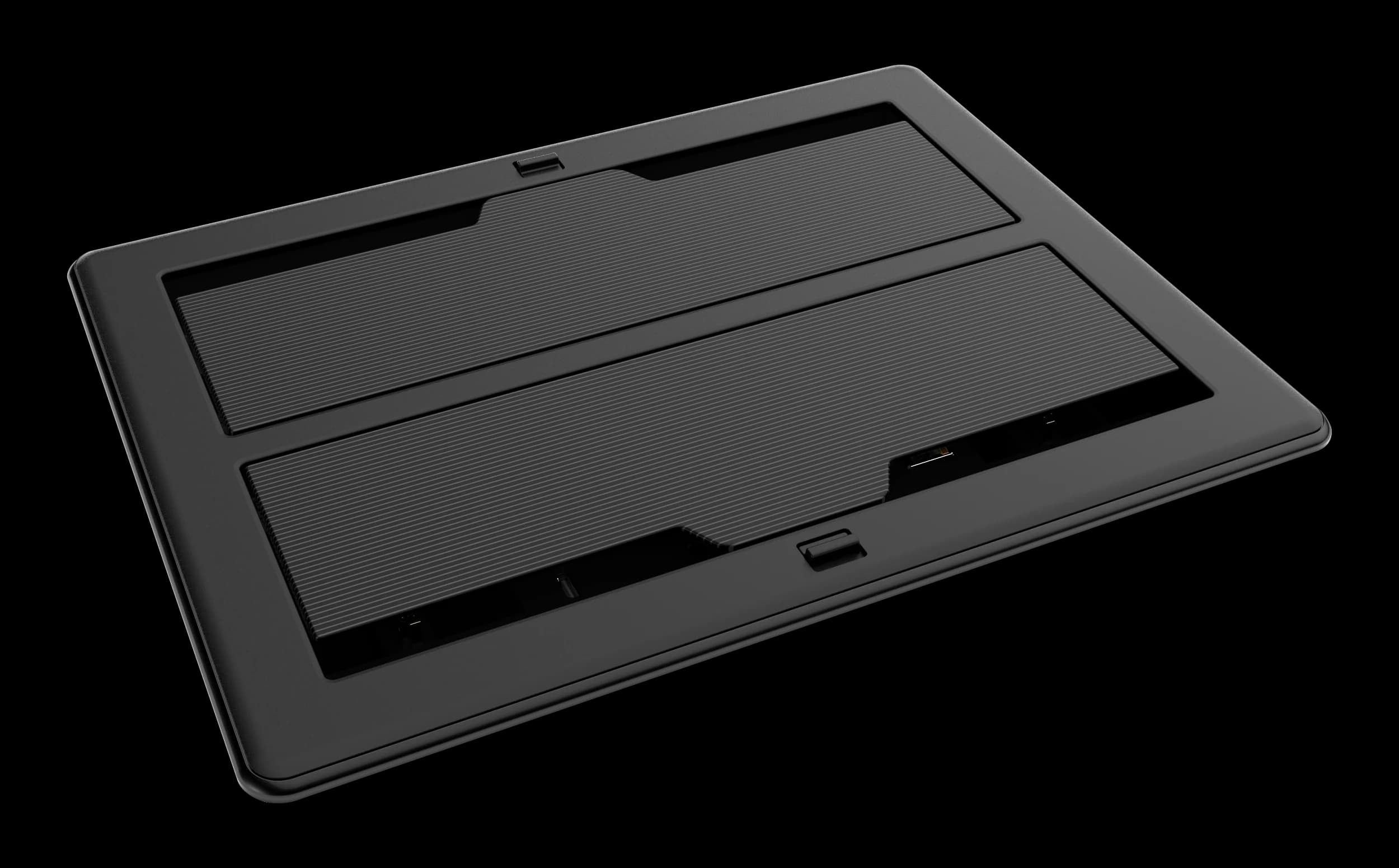

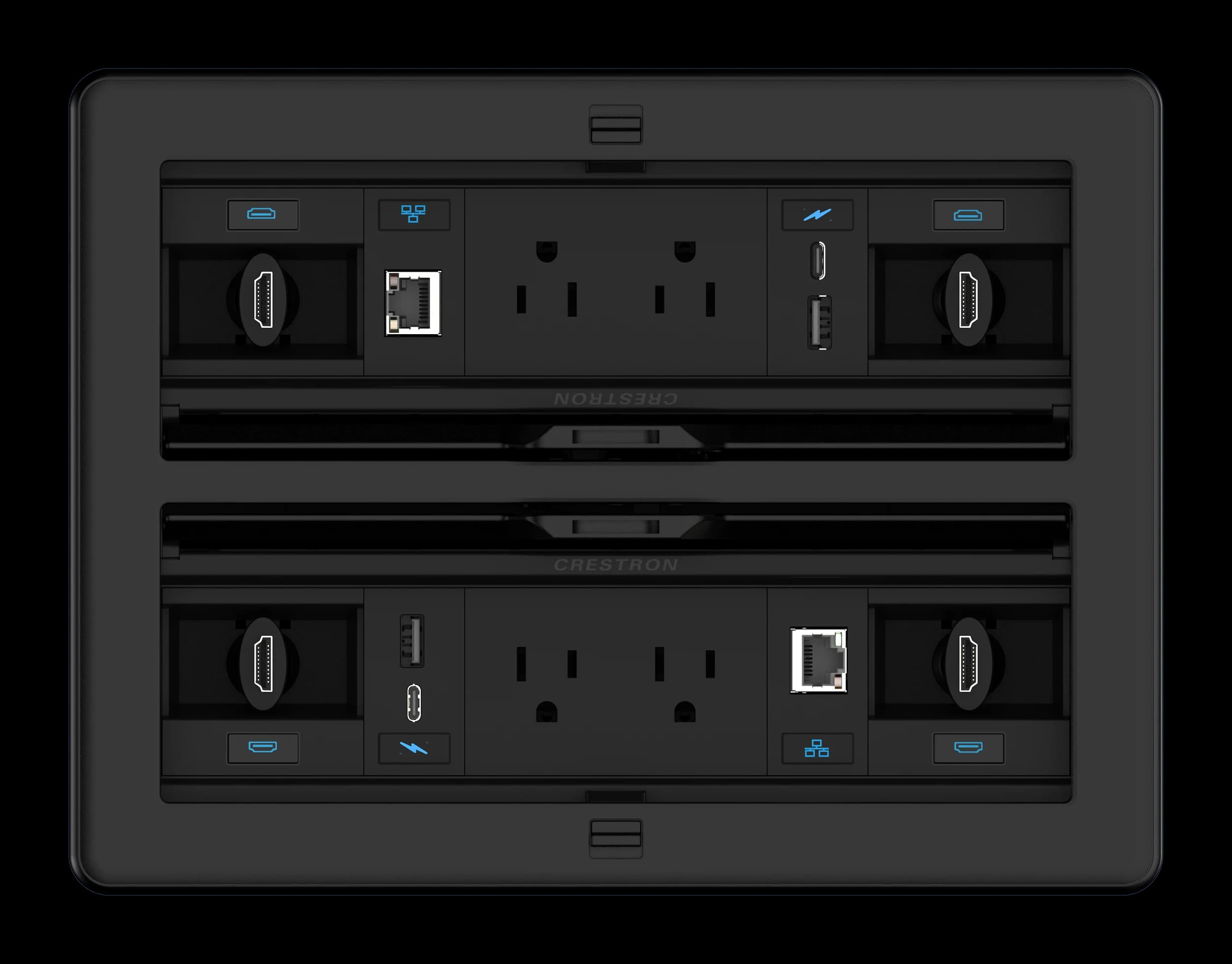

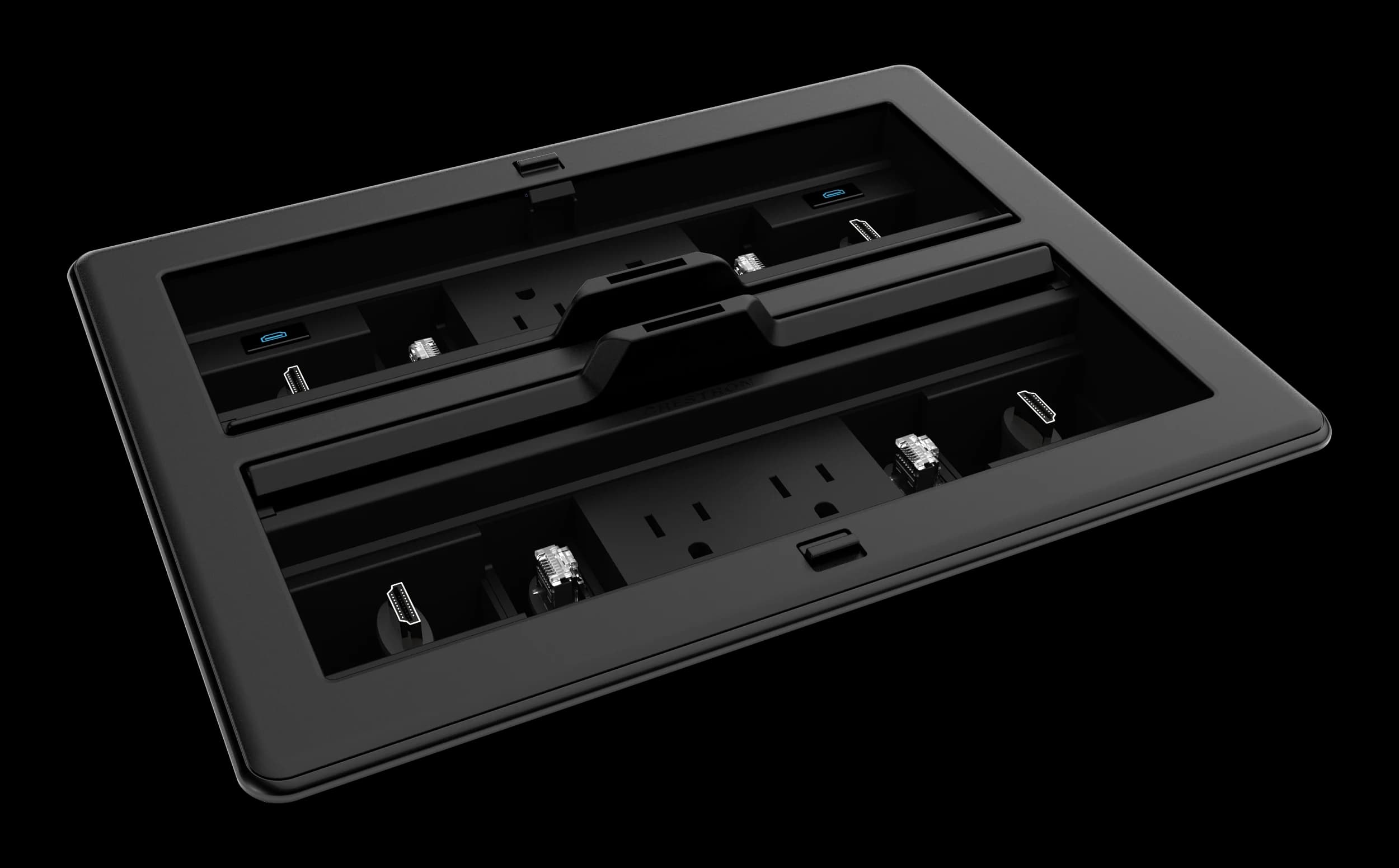

The Crestron FT2-1400-ELEC-PTL-B is an electrified FlipTop FT2 cable management system in the 1400 size, with 18 module slots arranged in two rows of nine, each under its own retracting lid.

Its pass-through lids let cables be fully extended while closed, and a built-in electrical power bus supports one-touch cable retractors, active connector plates and USB rapid charging modules.

Specifications

Technical Overview

Module Slots: 18 maximum; 2 rows of 9
Lids: 2 mechanical lids; pass-through style
DC Power: 2 × 24 VDC inputs (one per row)
Power Supply (included): FT2A-UTK-PWS: 100–240 VAC, 1.5 A max input; 24 VDC, 2.5 A output (second supply sold separately)
Network Port: 2 × 3-pin terminal block (Cresnet data only)
Cutout: 6-3/4 in. (171 mm) deep × 10 in. (254 mm) rectangular
Operating Temperature: 32°F to 112°F (0°C to 45°C)
Humidity: 10% to 95% RH, non-condensing

Compatible Products

Frequently Paired With

Crestron FT2A-UTK-PWS

Crestron FT2-1200-ELEC-PTL-B
