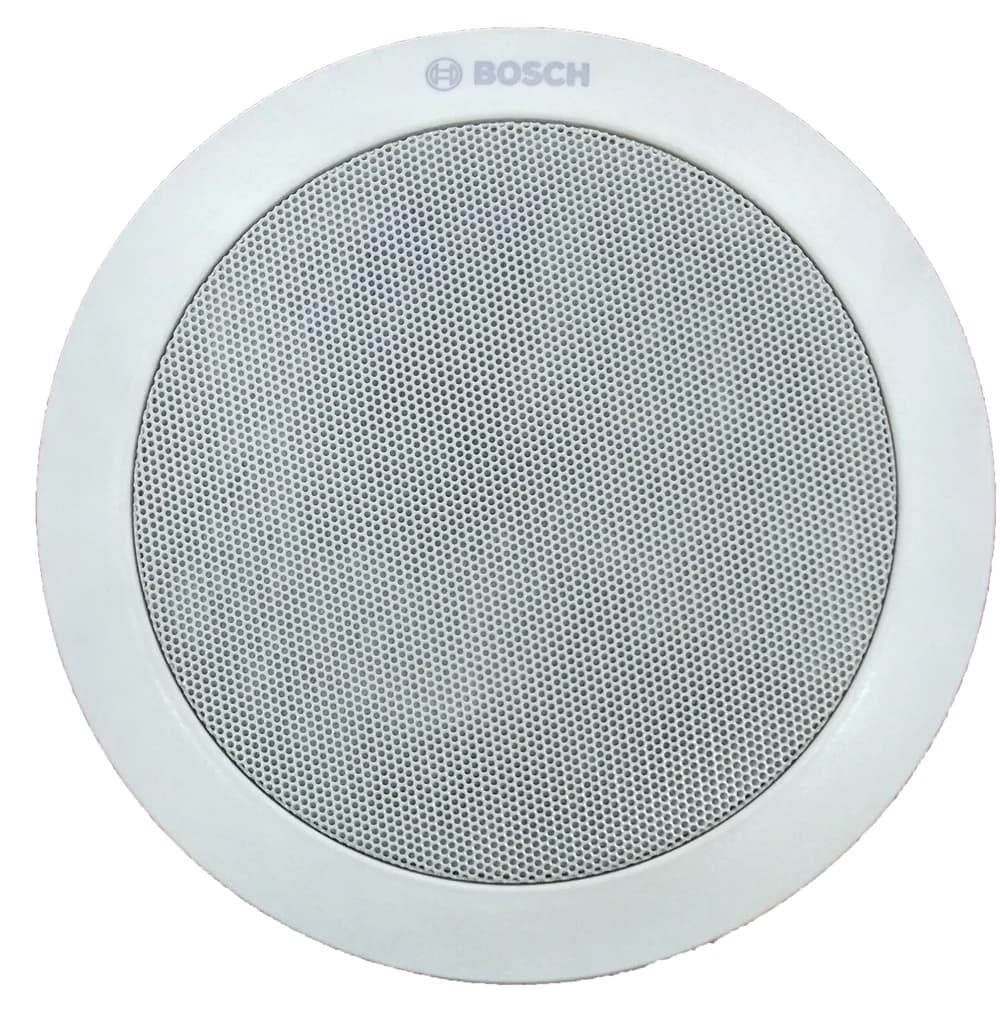

Bosch LC1-PC20G6-6-IN
The LC1-PC20G6-6-IN is a high-efficiency, coaxial full-range premium ceiling loudspeaker providing excellent speech and music reproduction for hotels, restaurants, shopping centers, convention centers and office buildings.
A poly cone tweeter is coaxially mounted with the woofer for enhanced high-frequency performance, and a 100V line-matching transformer with multiple power tappings makes it simple to deploy across a distributed audio system.
Specifications
Technical Overview
- Maximum Power
- 30 W
- Rated Power (PHC)
- 20 W
- Power Taps at 100V
- 20, 10, 5, 2.5 W
- Sound Pressure Level (1kHz, 1W, 1m)
- 89 dB (±3 dB)
- Effective Frequency Range (-10 dB)
- 70 Hz – 20 kHz
- Opening Angle (1 kHz / 8 kHz)
- > 180° / 57°
- Rated Voltage
- 100 V
- Rated Impedance at Rated Power
- 500 / 1000 / 2000 / 4000 Ω
- Driver / Speaker Diameter
- 5 in / 8 in
- Tweeter
- 0.5 in poly cone
- Color
- White (RAL 9003)
- Weight
- 1.5 kg
Key Features
What It Delivers
- Coaxial full-range design with poly cone tweeter
- 100V transformer with full, half, quarter and 1/8th power tappings
- Tested for 100 hours continuous operation (IEC 60268-1 & 5 PHC)
- SAFE-tested to withstand 2x rated power for short durations
