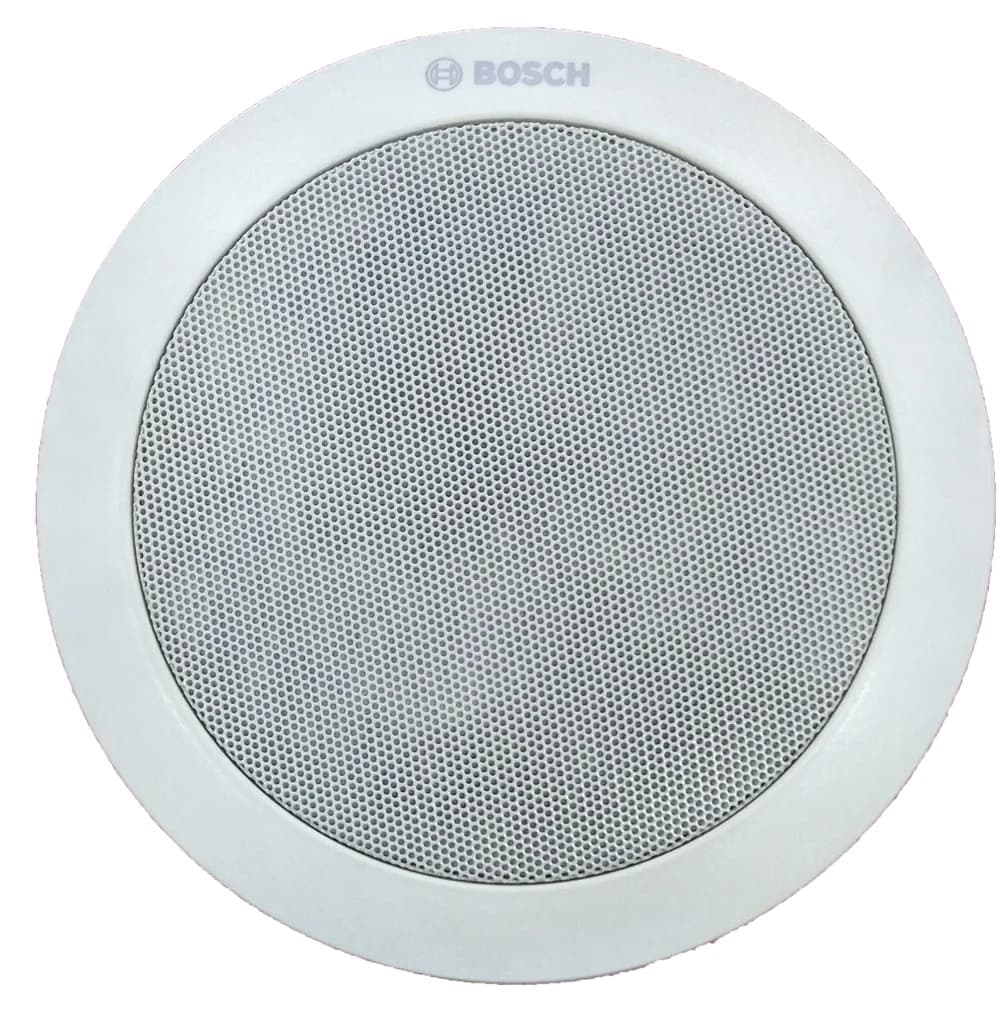

Bosch LC1-PC30G6-6-IN
The LC1-PC30G6-6-IN is the highest-output model in Bosch's premium-sound ceiling loudspeaker range, built for wide-scope sound distribution across larger hotels, convention centers and office buildings.
Like the rest of the range, it pairs a coaxial full-range driver with a poly cone tweeter and a 100V line-matching transformer, with power tappings at full (30W), half (15W) and quarter (7.5W) power.
Specifications
Technical Overview
- Maximum Power
- 45 W
- Rated Power (PHC)
- 30 W
- Power Taps at 100V
- 30, 15, 7.5 W
- Sound Pressure Level (1kHz, 1W, 1m)
- 90 dB (±3 dB)
- Effective Frequency Range (-10 dB)
- 70 Hz – 20 kHz
- Opening Angle (1 kHz / 8 kHz)
- > 180° / 57°
- Rated Voltage
- 100 V
- Rated Impedance at Rated Power
- 333 / 666 / 1333 Ω
- Driver / Speaker Diameter
- 5 in / 8 in
- Tweeter
- 0.5 in poly cone
- Color
- White (RAL 9003)
- Weight
- 1.6 kg
Key Features
What It Delivers
- Coaxial full-range design with poly cone tweeter
- 100V transformer with full, half and quarter power tappings
- Tested for 100 hours continuous operation (IEC 60268-1 & 5 PHC)
- SAFE-tested to withstand 2x rated power for short durations
