Overview

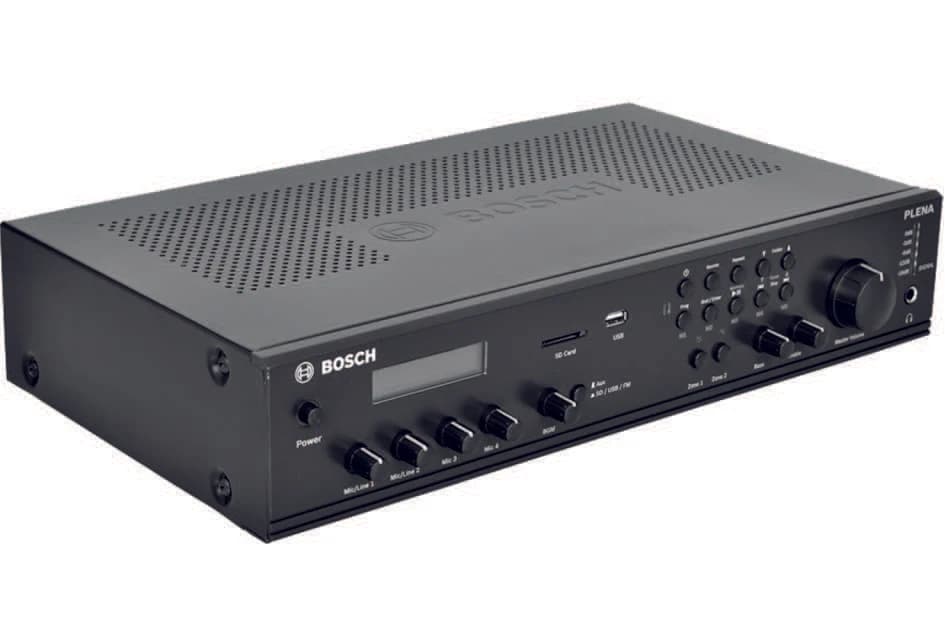

Bosch PLN-2AIO180-IN
The PLN-2AIO180-IN is a versatile all-in-one mixer amplifier for public address, emergency announcements and background music, built for supermarkets, restaurants, schools, retail chains and places of worship.
A built-in USB/SD music player and FM tuner with preset memories remove the need for a separate source player, while a 100V emergency/telephone input with VOX activation lets it integrate with an existing PA or telephone paging system and override all other inputs.
Specifications
Technical Overview
- Max / Rated Output Power
- 270 W / 180 W
- Mains Power
- 220–230 VAC, 50 Hz
- Battery Backup
- 24 VDC, 9 A
- Frequency Response
- 80 Hz – 18 kHz
- Distortion
- < 1% at rated power, 1 kHz
- Mic/Line Inputs
- 4x (Input 1–2 combo XLR/TRS, Input 3–4 XLR)
- Music Input
- Cinch stereo-to-mono, internal USB/SD player
- Master Output
- 3-pin XLR, balanced, 1V nominal
- Emergency/Telephone Input
- 5-pin Euroblock, VOX-activated
- Loudspeaker Output
- 100V and 4Ω
- Dimensions
- 88 × 433 × 250 mm (19-inch, 2U)
- Weight
- Approx. 10 kg
Key Features
What It Delivers
- 2 independent zone outputs
- 4 microphone/line inputs with independent level control
- Built-in USB and SD card MP3/WMA playback, up to 32GB
- Built-in FM tuner with 5 station presets
- 100V/telephone emergency input with VOX and priority override
- 24VDC backup power input
