Overview
Bose DesignMax DM2C-LP
The DesignMax DM2C-LP is a compact, low-profile in-ceiling loudspeaker built for spaces where discretion and a shallow backcan matter — small meeting rooms, offices and huddle spaces.

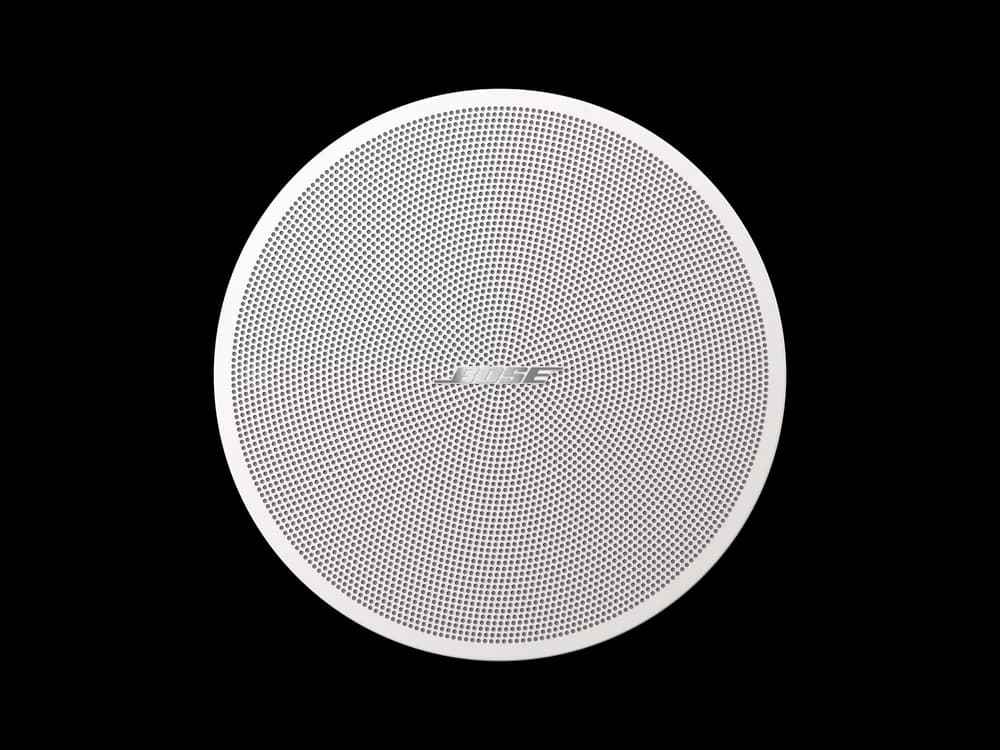

A wide 150° conical coverage pattern from a single 2.25-inch transducer keeps background music and paging even across the room, with a magnetically attached, paintable grille that blends into any ceiling.
Specifications
Technical Overview

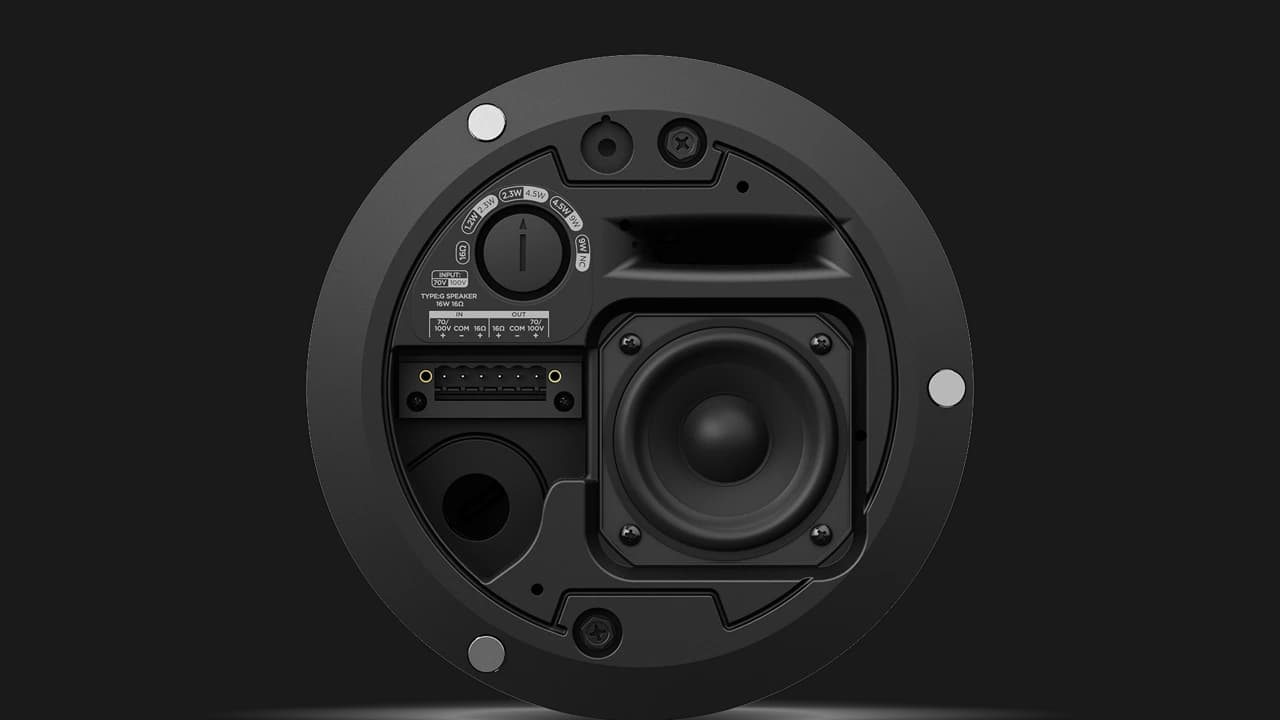

- Transducer
- 1 x 2.25 in (57 mm) woofer
- Frequency Range (-10 dB)
- 85 Hz – 19,000 Hz
- Coverage
- 150° conical (horizontal)
- Maximum SPL @ 1 m
- 97 dB (calculated)
- Nominal Impedance
- 16 Ω (transformer bypass)
- Power Handling
- 20 W continuous, 80 W peak
- Sensitivity
- 84 dB (SPL/1 W @ 1 m)
- Transformer Taps (70V)
- 1.2, 2.3, 4.5, 9 W, bypass
- Transformer Taps (100V)
- 2.3, 4.5, 9 W, bypass
- Ceiling Cutout
- 6.5 in (165 mm)
- Dimensions
- 7.8 in dia. × 4.3 in depth (198 × 110 mm)
- Net Weight
- 3.6 lb (1.6 kg) per unit
- Mounting
- 2 QuickHold spring-loaded arms, 2 safety cable points
- Safety Rating
- UL1480A, UL2043 plenum-rated
Key Features
What It Delivers
- 2.25-inch full-range transducer
- 150° conical coverage pattern

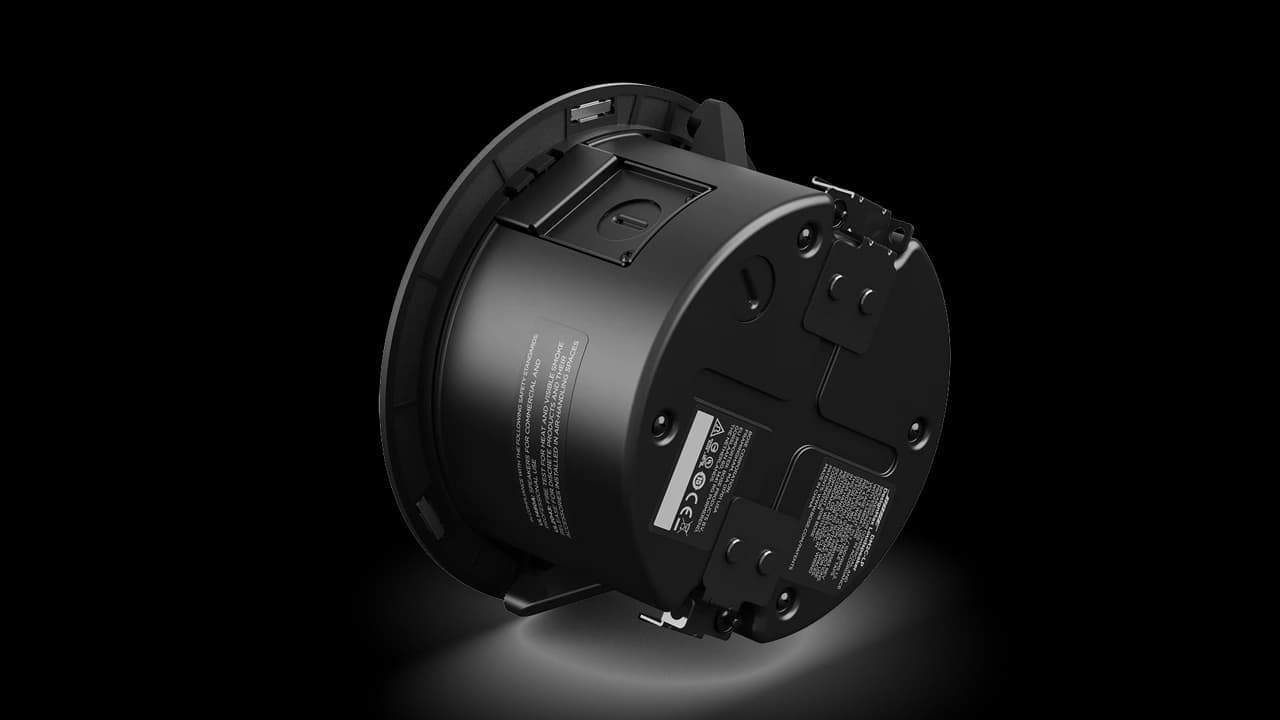

- Low-profile backcan for shallow plenum spaces
- UL2043 plenum-rated for return-air ceiling spaces
- Paintable, magnetically attached grille
