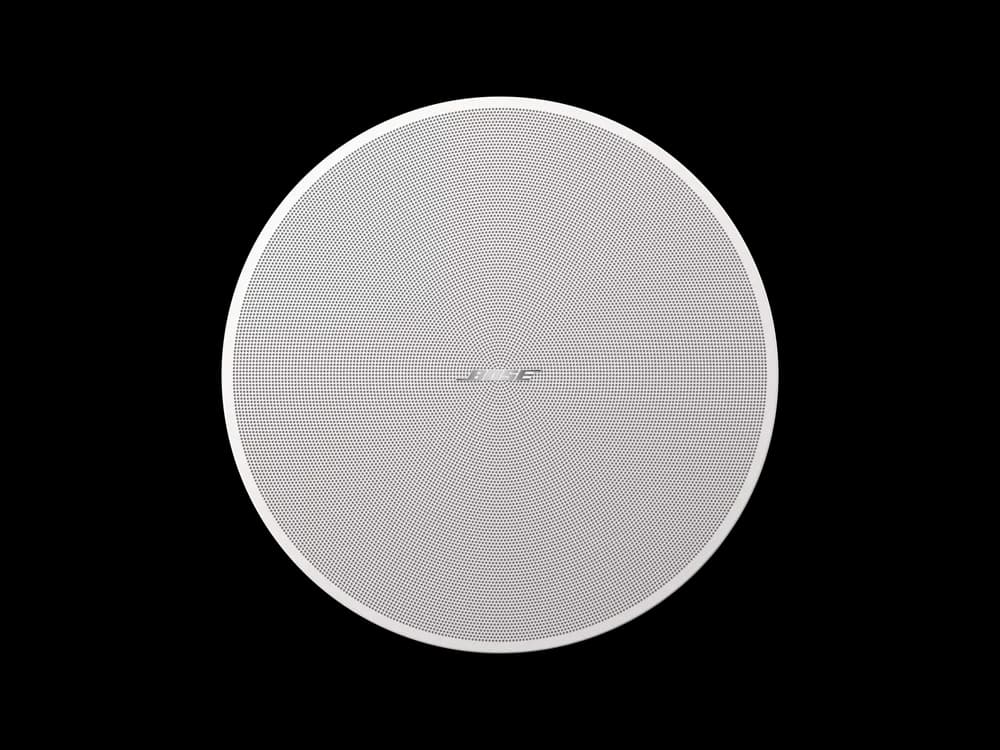

Bose DesignMax DM6C
The DesignMax DM6C is a 6.5-inch coaxial in-ceiling loudspeaker built for even, full-range coverage in meeting rooms, conference spaces and open-plan offices.

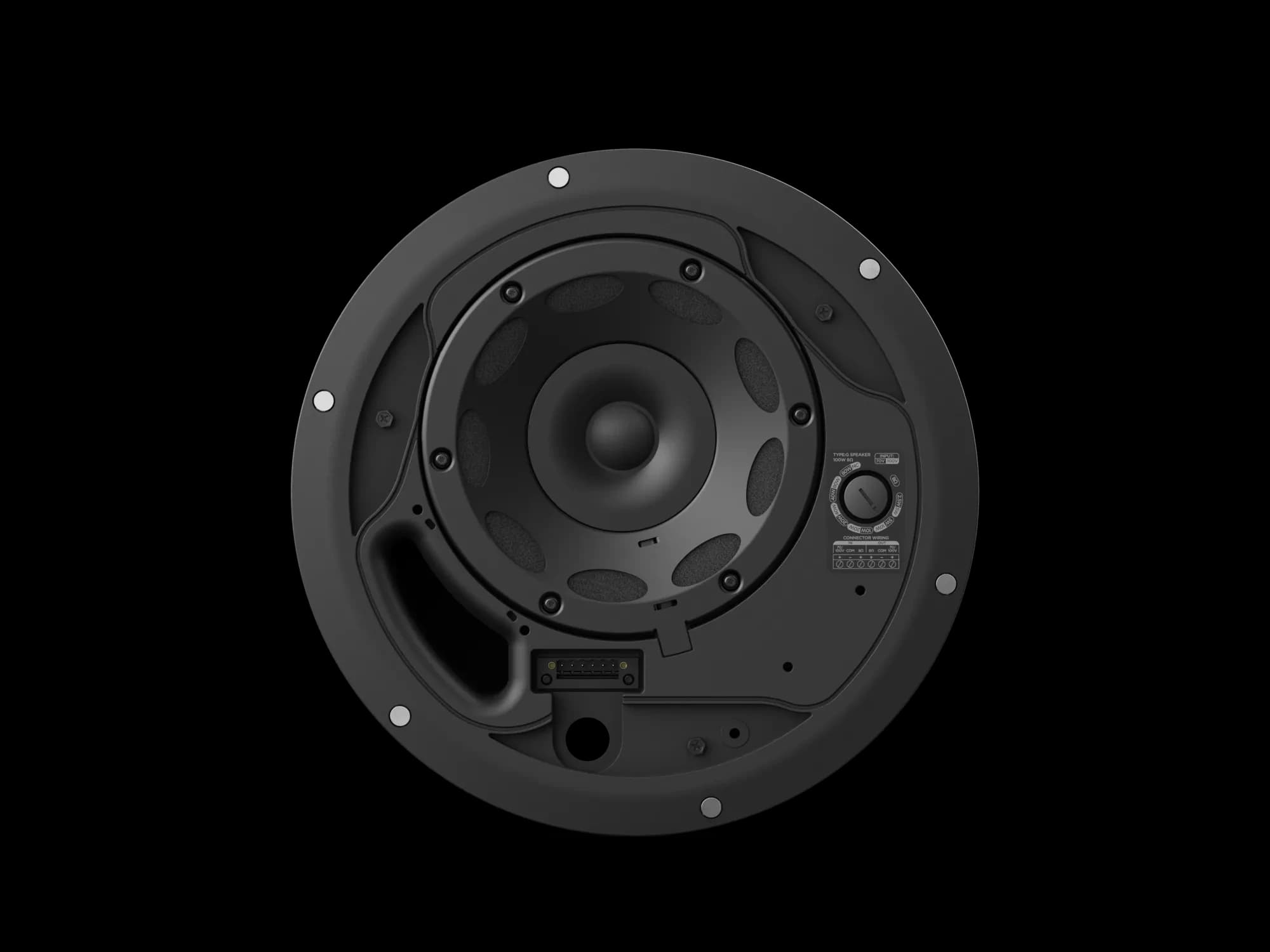

Its coaxial 6.5-inch woofer and 1.25-inch neodymium tweeter share a single acoustic center, keeping voice and music imaging consistent across a wide 120° conical coverage area.
Specifications
Technical Overview
- Low-Frequency Driver
- 1 x 6.5 in (165 mm) woofer
- High-Frequency Driver
- 1.25 in neodymium dome tweeter (coaxial)
- Crossover
- 1.7 kHz passive 2-way
- Frequency Range (-10 dB)
- 59 Hz – 20,000 Hz
- Coverage
- 120° conical
- Maximum SPL @ 1 m
- 109 dB
- Nominal Impedance
- 8 Ω (transformer bypass)
- Power Handling
- 125 W continuous, 500 W peak
- Sensitivity
- 88 dB (SPL/1 W @ 1 m)
- Transformer Taps (70V)
- 2.5, 5, 10, 20, 40, 80 W, bypass
- Transformer Taps (100V)
- 5, 10, 20, 40, 80 W, bypass
- Ceiling Cutout
- 11.5 in (292 mm)
- Dimensions

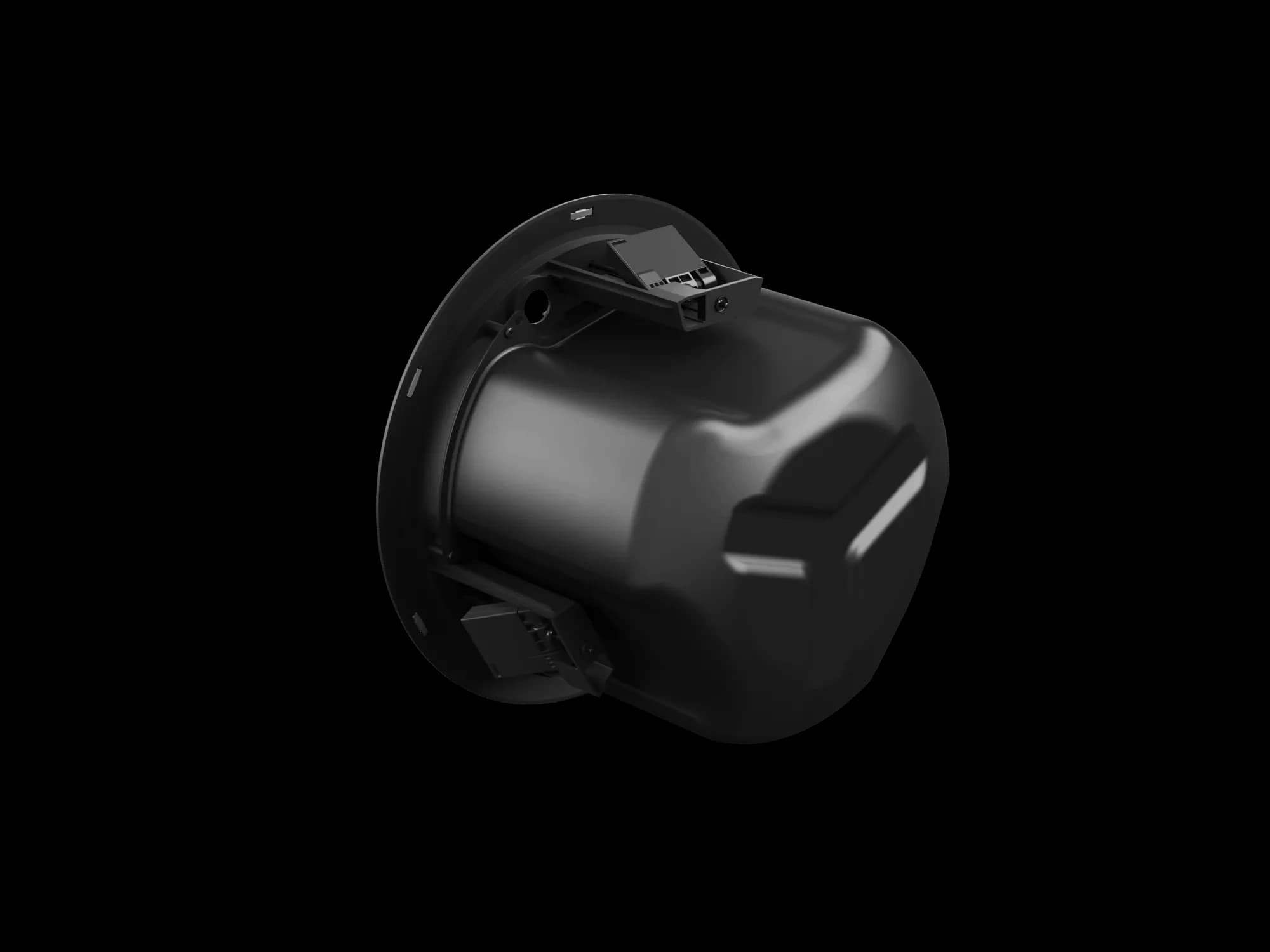

- 14.0 in × 9.4 in loudspeaker; 11.3 in × 8.8 in backcan
- Net Weight
- 14.3 lb (6.5 kg) single unit
- Mounting
- 3 QuickHold spring-loaded arms, 3 safety cable points
- Warranty
- 5 years
Key Features
What It Delivers
- Coaxial 6.5-inch woofer with 1.25-inch neodymium tweeter
- 120° conical coverage pattern
- 125 W continuous power handling
- UL2043 plenum-rated for return-air ceiling spaces
- Paintable, magnetically attached grille
