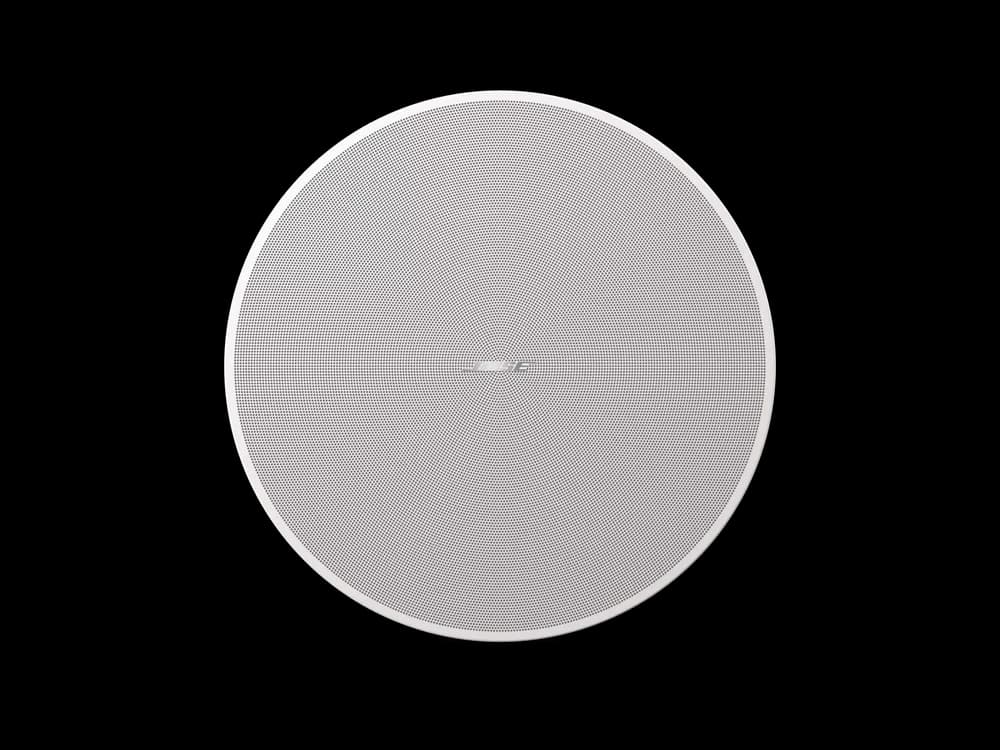

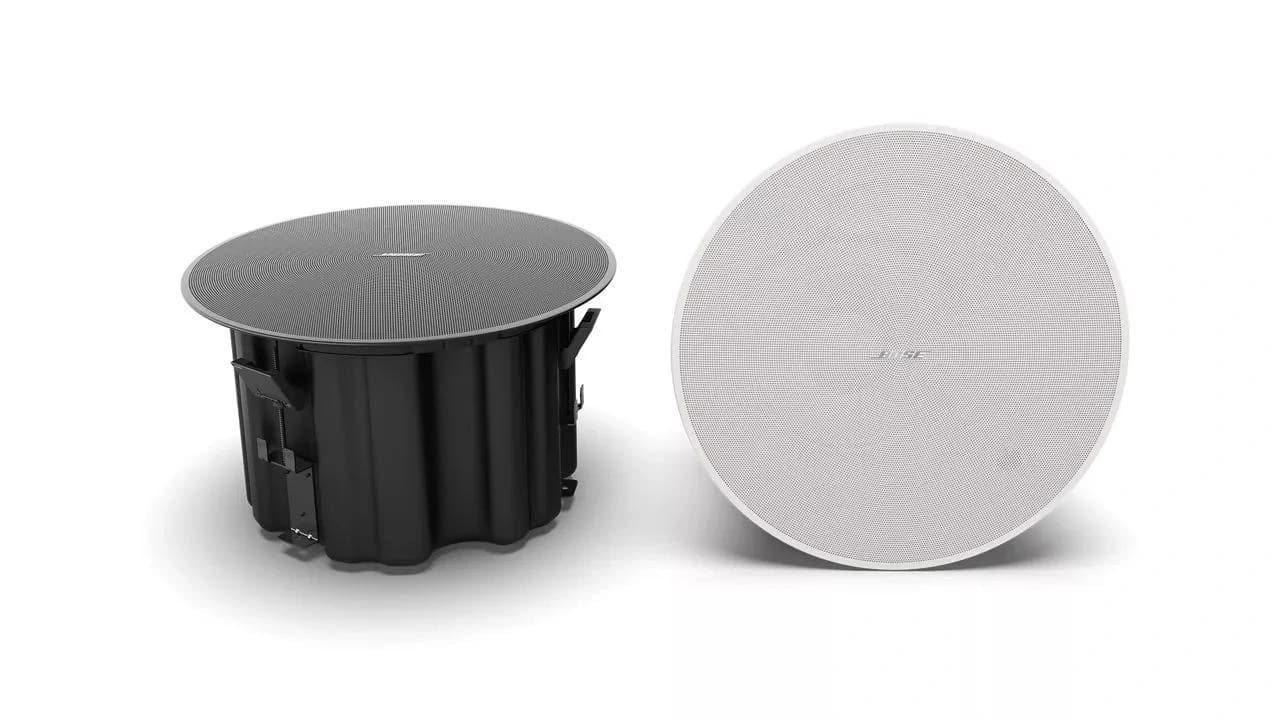

Bose DesignMax DM8C
The DesignMax DM8C steps up to an 8-inch coaxial woofer for larger conference rooms, town halls and multipurpose spaces that need more headroom than a compact ceiling speaker can deliver.
A center-firing 1-inch compression driver keeps vocal clarity high, while a wide 135° conical coverage pattern reduces the number of speaker points needed to cover a large room evenly.
Specifications
Technical Overview
- Low-Frequency Driver
- 1 x 8 in (203 mm) woofer
- High-Frequency Driver
- 1 x 1 in (25 mm) compression driver, coaxial center-firing
- Crossover
- 1.5 kHz passive 2-way
- Frequency Range (-10 dB)
- 52 Hz – 20,000 Hz
- Coverage
- 135° conical
- Maximum SPL @ 1 m
- 113 dB (calculated)
- Nominal Impedance
- 8 Ω (transformer bypass)
- Power Handling
- 150 W continuous, 600 W peak
- Sensitivity
- 91 dB (SPL/1 W @ 1 m)
- Transformer Taps (70V)
- 2.5, 5, 10, 20, 40, 80 W, bypass
- Transformer Taps (100V)
- 5, 10, 20, 40, 80 W, bypass
- Ceiling Cutout
- 13.8 in (349 mm)
- Dimensions
- 16.1 in × 10.0 in loudspeaker; 13.4 in × 9.5 in backcan
- Net Weight
- 21.1 lb (9.6 kg) with grille
- Mounting
- 3 QuickHold spring-loaded arms, 3 safety cable points
Key Features
What It Delivers
- Coaxial 8-inch woofer with center-firing 1-inch compression driver
- 135° conical coverage pattern
- 150 W continuous power handling
- UL2043 plenum-rated for return-air ceiling spaces
- Paintable, magnetically attached grille with safety tether
