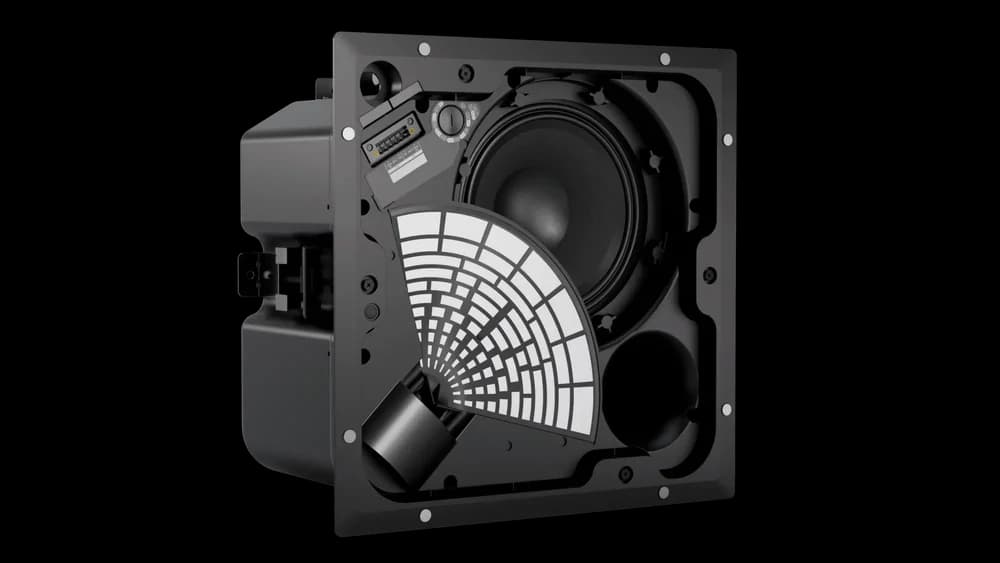

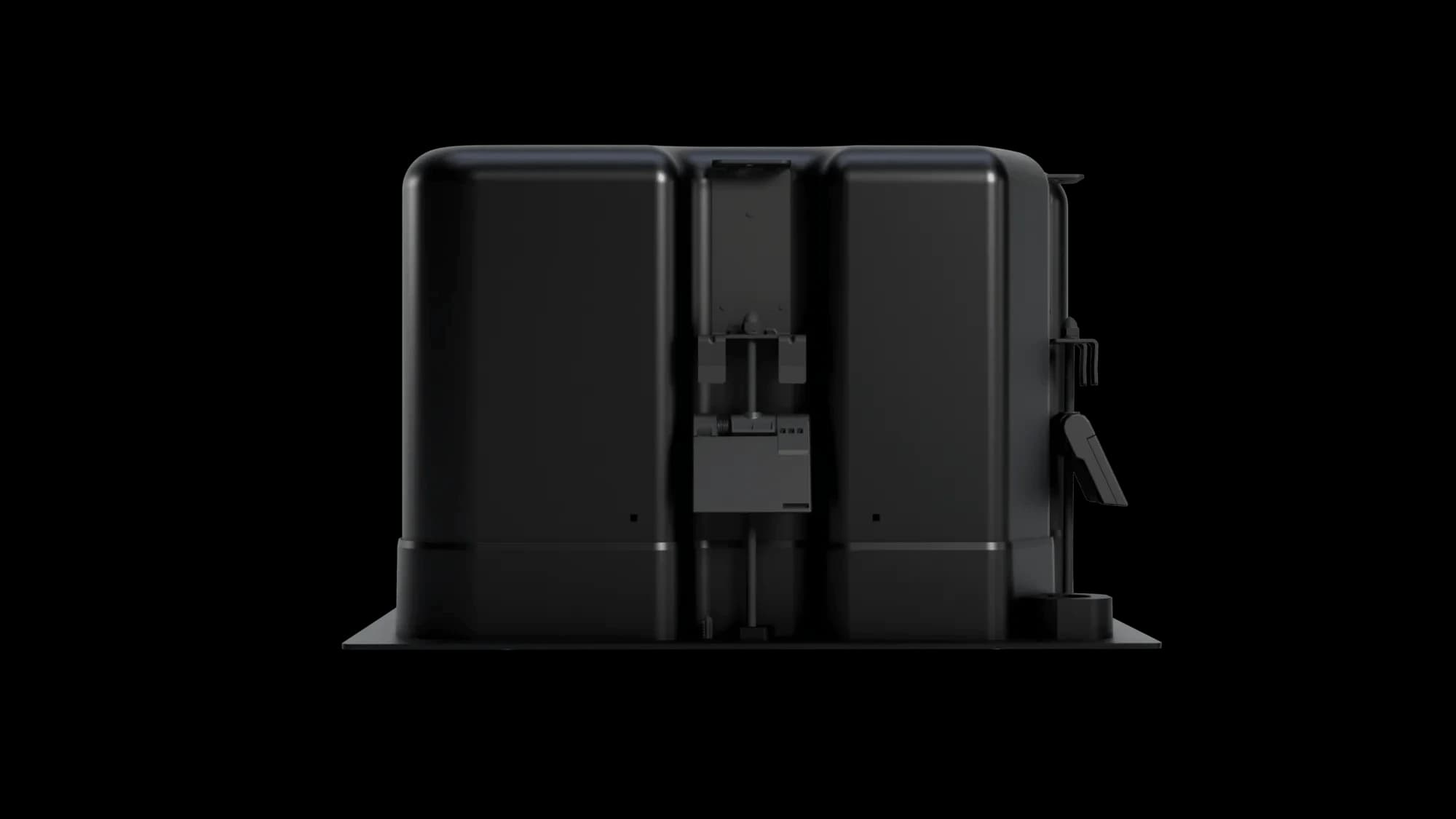

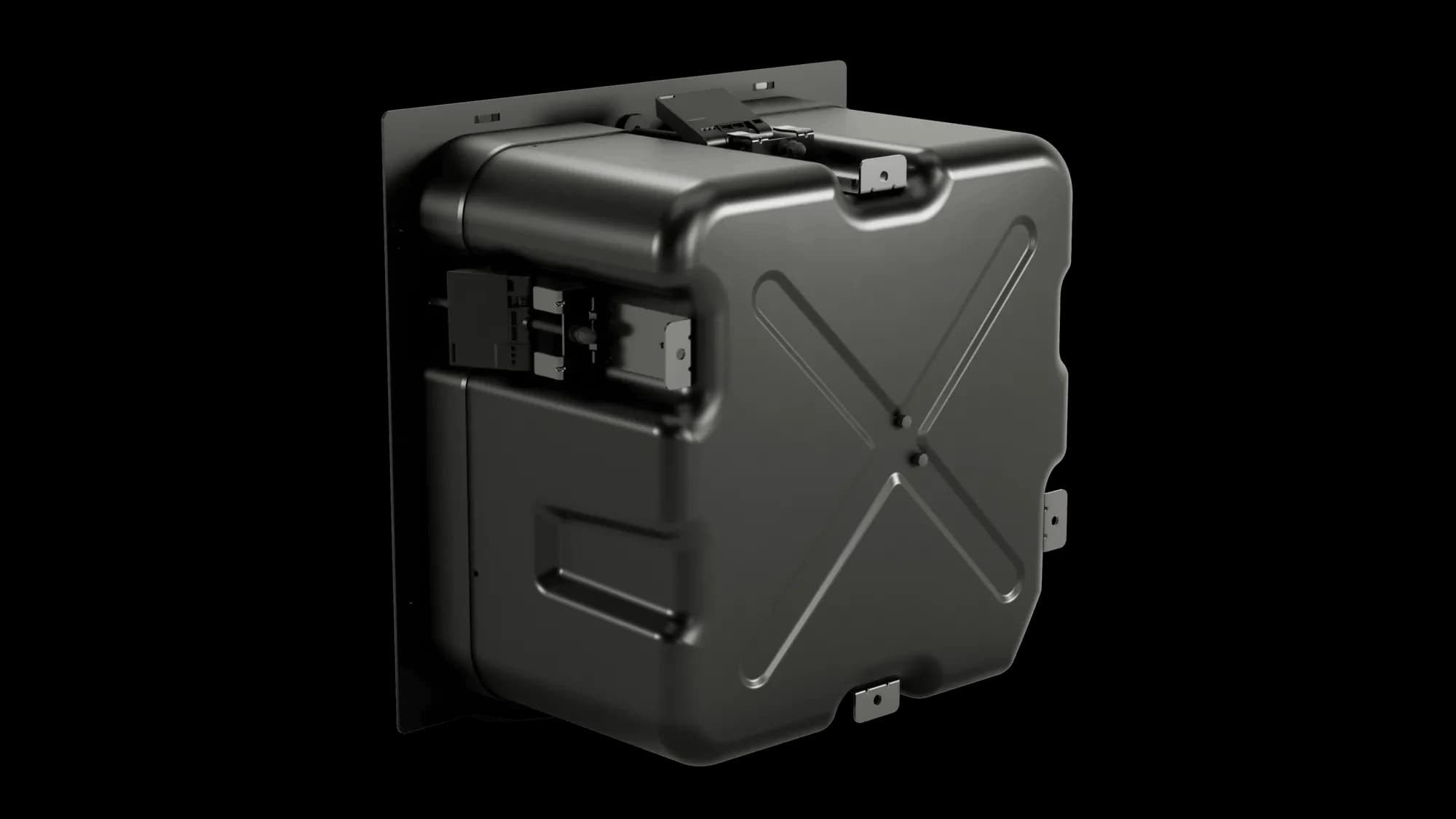

Bose EdgeMax EM90
The EdgeMax EM90 combines the directional, room-filling coverage typical of a surface-mount loudspeaker with the clean, architect-preferred aesthetics of an in-ceiling model.

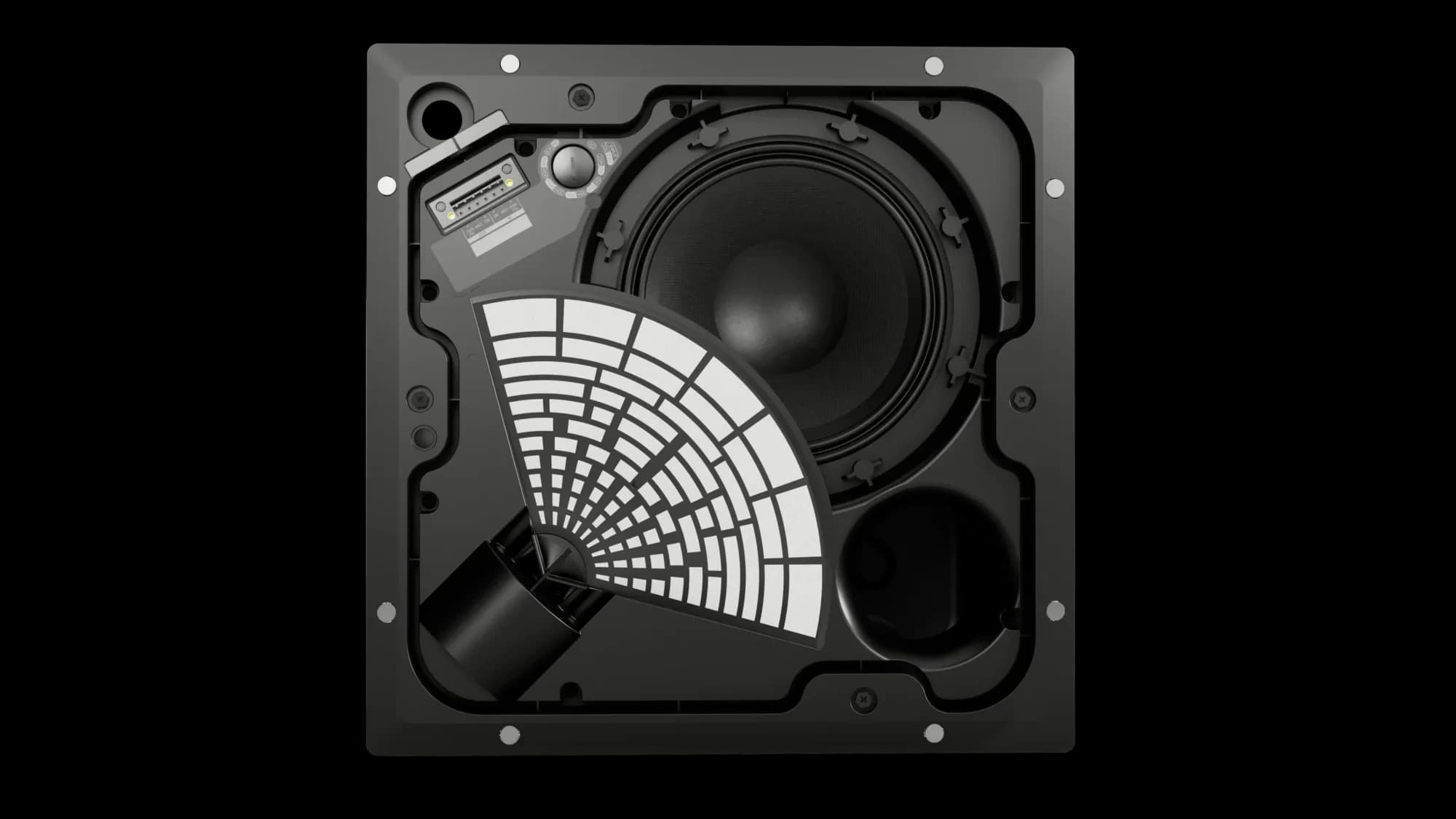

Bose PhaseGuide technology and a compression driver shape a controlled 90° horizontal by 75° vertical coverage pattern, aiming sound at the audience instead of the walls and improving speech intelligibility in acoustically difficult rooms.
Specifications
Technical Overview
- Low-Frequency Driver
- 1 x 8 in (203 mm) woofer, 1.5 in voice coil
- High-Frequency Driver
- 1 x compression driver, 1.3 in voice coil
- Crossover
- 1 kHz passive 2-way with integrated 70/100V transformer
- Frequency Range (-10 dB)
- 45 Hz – 20,000 Hz
- Coverage
- 90° horizontal x 75° vertical
- Maximum SPL @ 1 m
- 117 dB continuous, 123 dB peak
- Nominal Impedance
- 8 Ω (transformer bypass)
- Power Handling
- 125 W continuous, 500 W peak
- Sensitivity
- 96 dB (SPL/1 W @ 1 m)
- Transformer Taps (70V)
- 2.5, 5, 10, 20, 40, 80 W, bypass
- Transformer Taps (100V)
- 5, 10, 20, 40, 80 W, bypass
- Ceiling Cutout
- 13.6 x 13.6 x 9.3 in (345 x 345 x 236 mm)
- Net Weight
- 22.2 lb (10.1 kg)
- Mounting
- 4 QuickHold spring-loaded arms, 4 M6 safety cable points
Key Features
What It Delivers
- Bose PhaseGuide directional waveguide technology
- Controlled 90° horizontal x 75° vertical coverage
- 117 dB continuous / 123 dB peak maximum SPL
- UL2043 plenum-rated for return-air ceiling spaces
- Paintable, powder-coated microperforated grille
