Overview

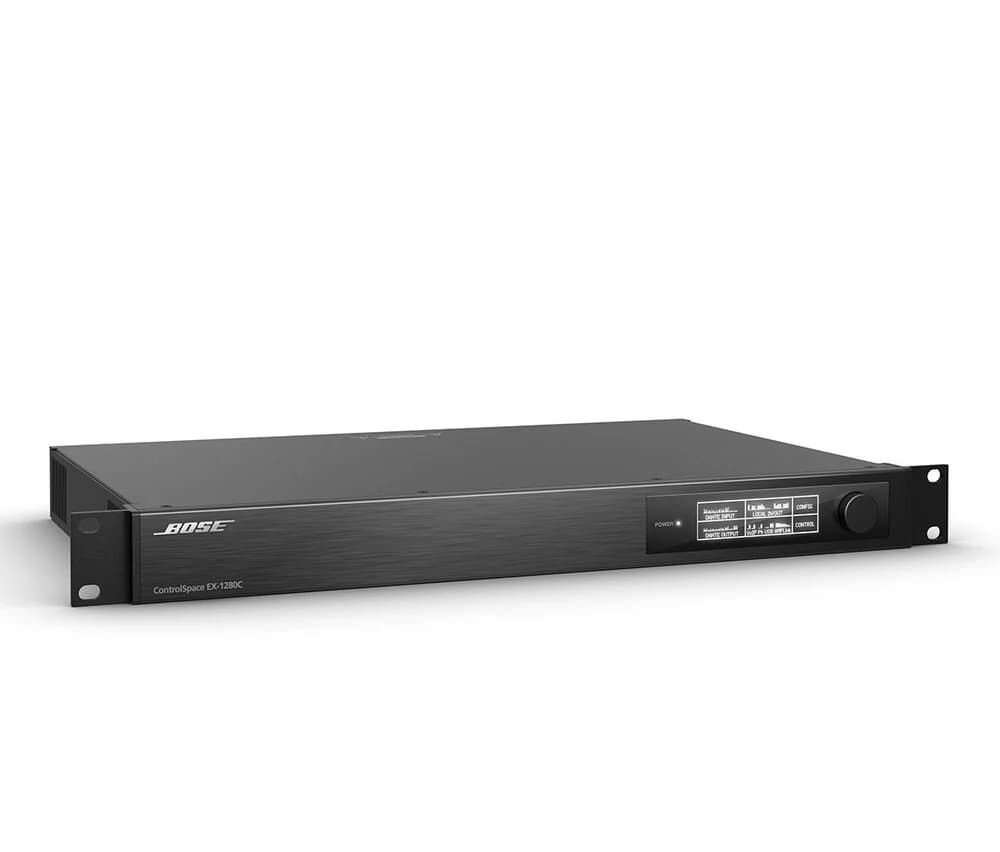

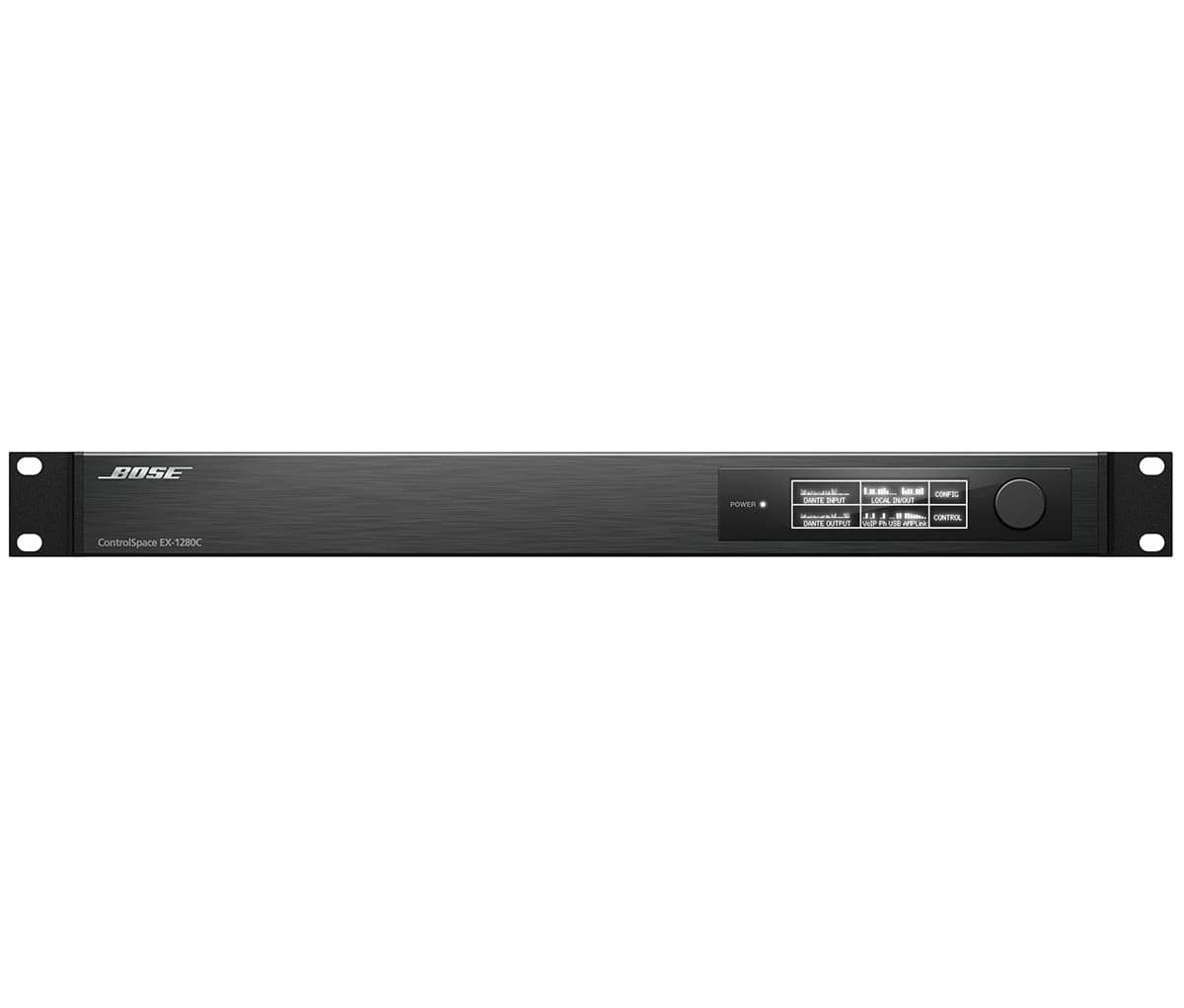

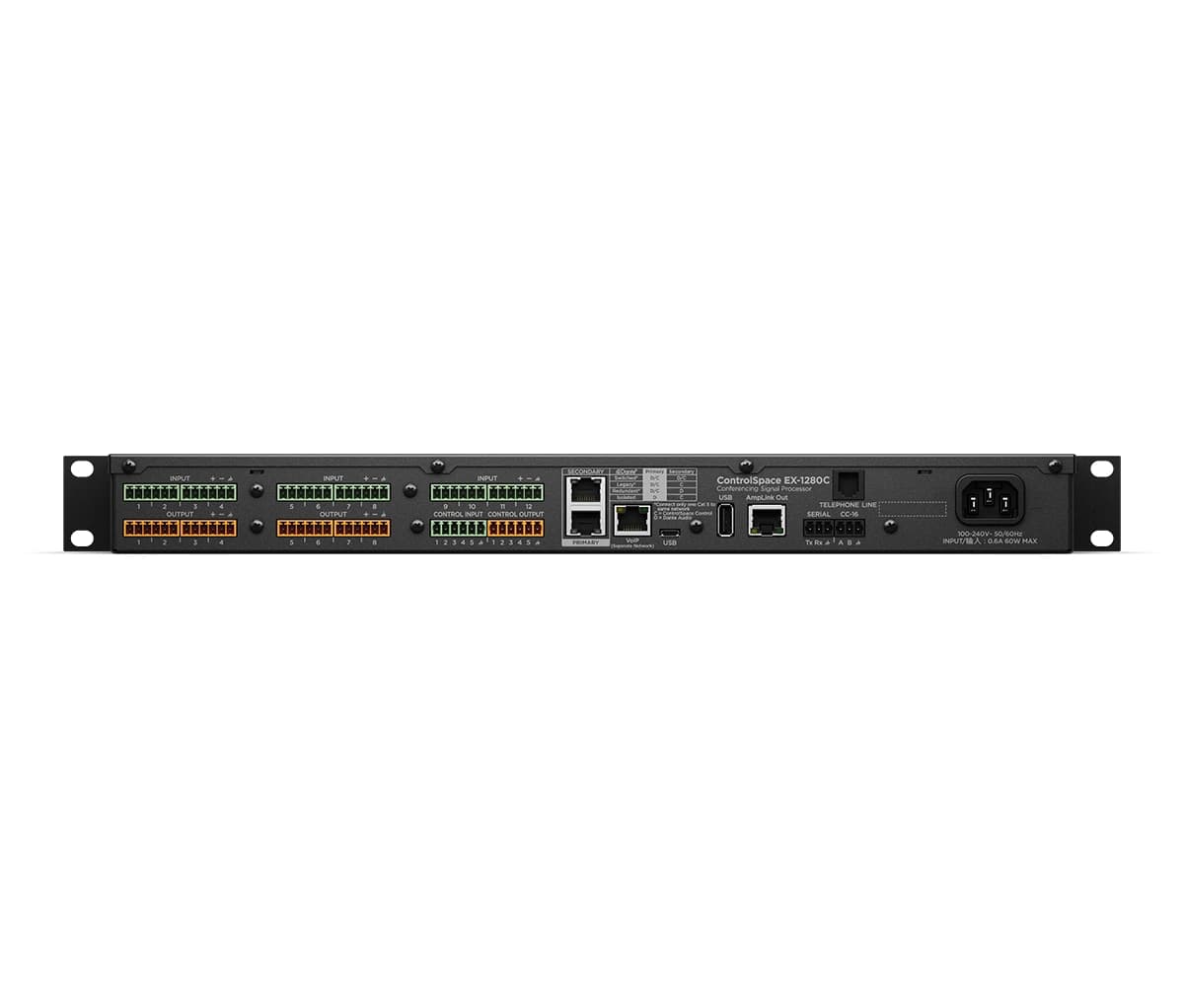

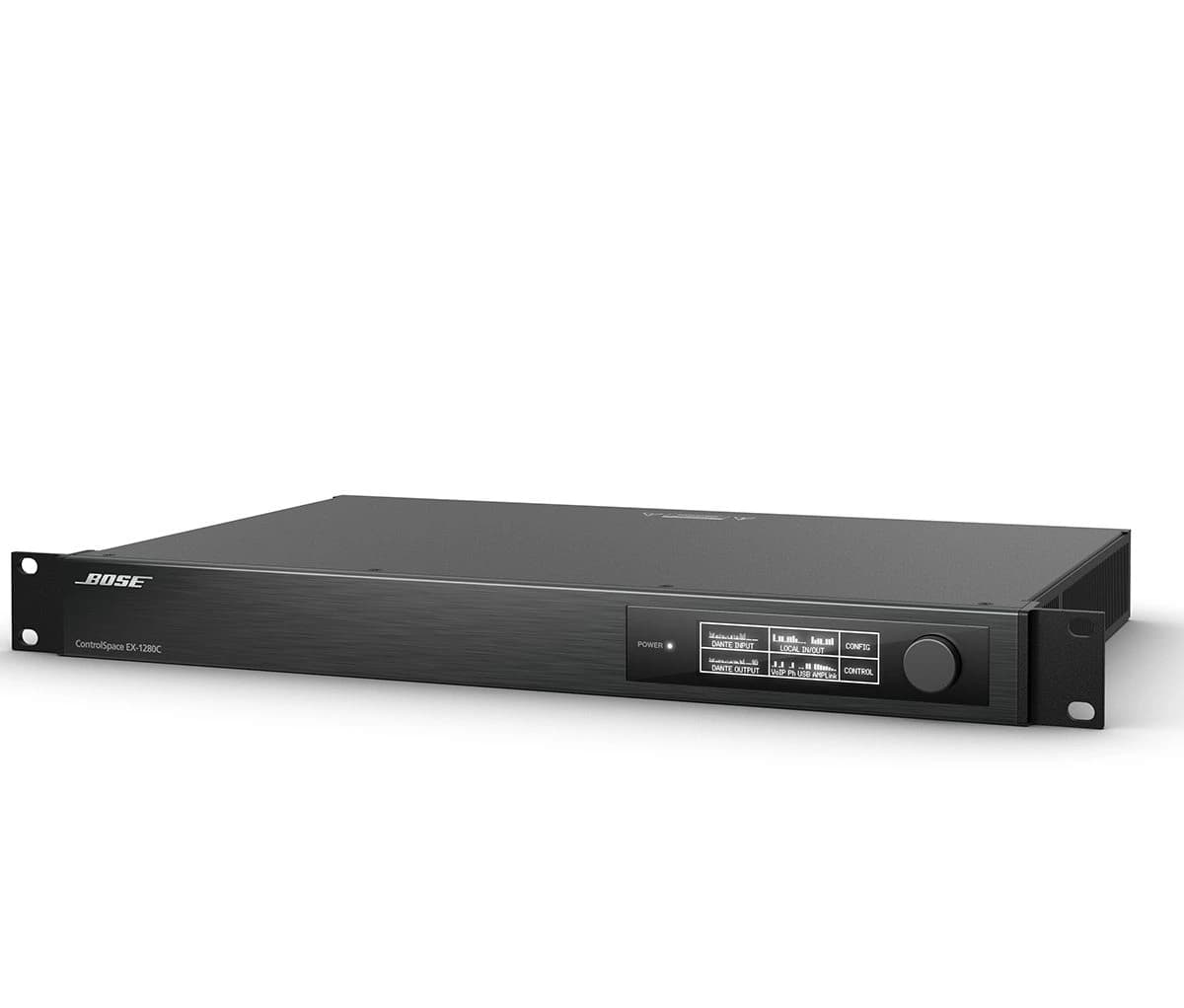

Bose ControlSpace EX-1280C
The ControlSpace EX-1280C is an open-architecture conferencing sound processor built for integrated-microphone audio conferencing, supporting simultaneous VoIP, PSTN and USB soft codecs from a single 1RU unit.
12 channels of acoustic echo cancellation with 480ms tail length and 4 separate AEC references handle multi-room conferencing, while 64×64 Dante connectivity and 8 AmpLink outputs integrate directly into a wider Bose Professional audio system.
Specifications
Technical Overview
- Analog Inputs
- 12 balanced mic/line (Euroblock)
- Analog Outputs
- 8 balanced line (Euroblock)
- Digital I/O
- 64×64 Dante, 8× AmpLink out
- AEC
- 12 channels, 480ms tail, 4 references
- Noise Reduction
- 32 dB per channel
- DSP
- 32-bit fixed/floating-point, ARM Cortex-A8 600MHz
- Connectivity
- 2× VoIP (RJ-45), 1× PSTN (RJ-11), USB Micro-B
- Control I/O
- 5×5 GPIO
- Dimensions
- 1RU (1.7 × 19.0 × 11.1 in)
- Weight
- 3.6 kg (7.3 lb)
- Power Consumption
- 35 W typical
Key Features
What It Delivers
- 12 mic/line inputs, 8 analog outputs, 8 AmpLink digital outputs
- 12-channel AEC with 480ms tail length, 4 AEC references
- 64×64 Dante in/out (primary/secondary)
- Simultaneous VoIP (2 lines), PSTN (1 line) and USB soft codec support
- 5×5 GPIO for third-party control integration
- ControlSpace Designer software for drag-and-drop configuration
