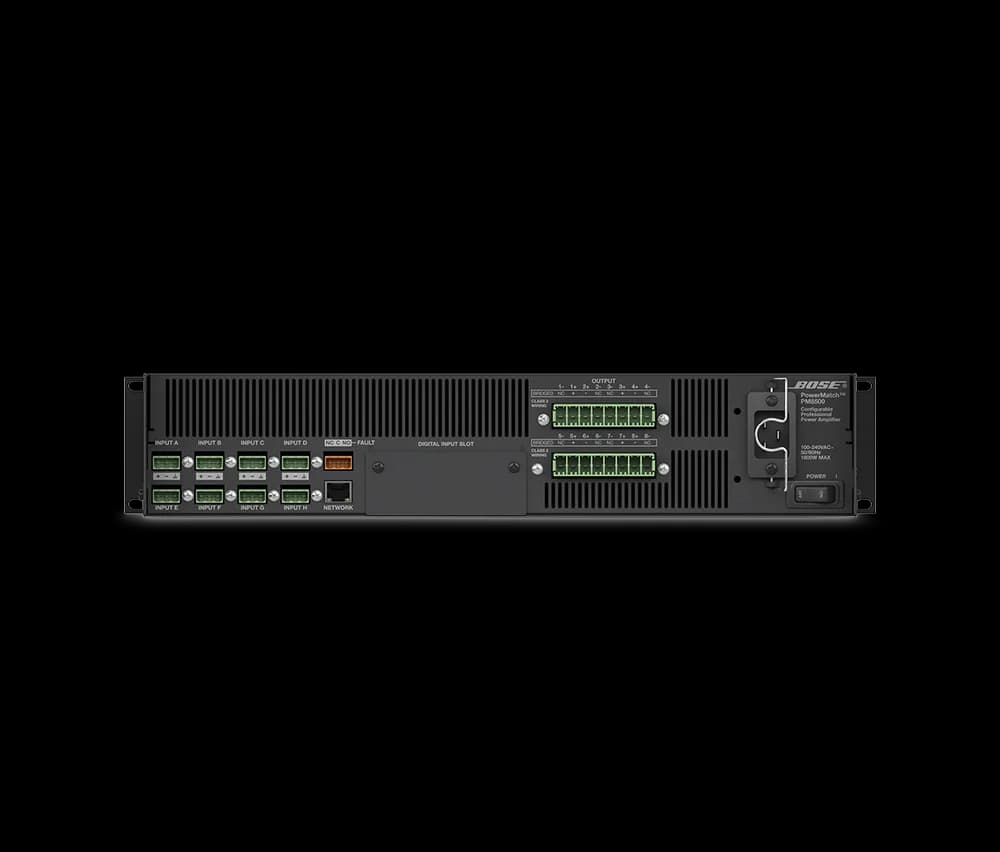

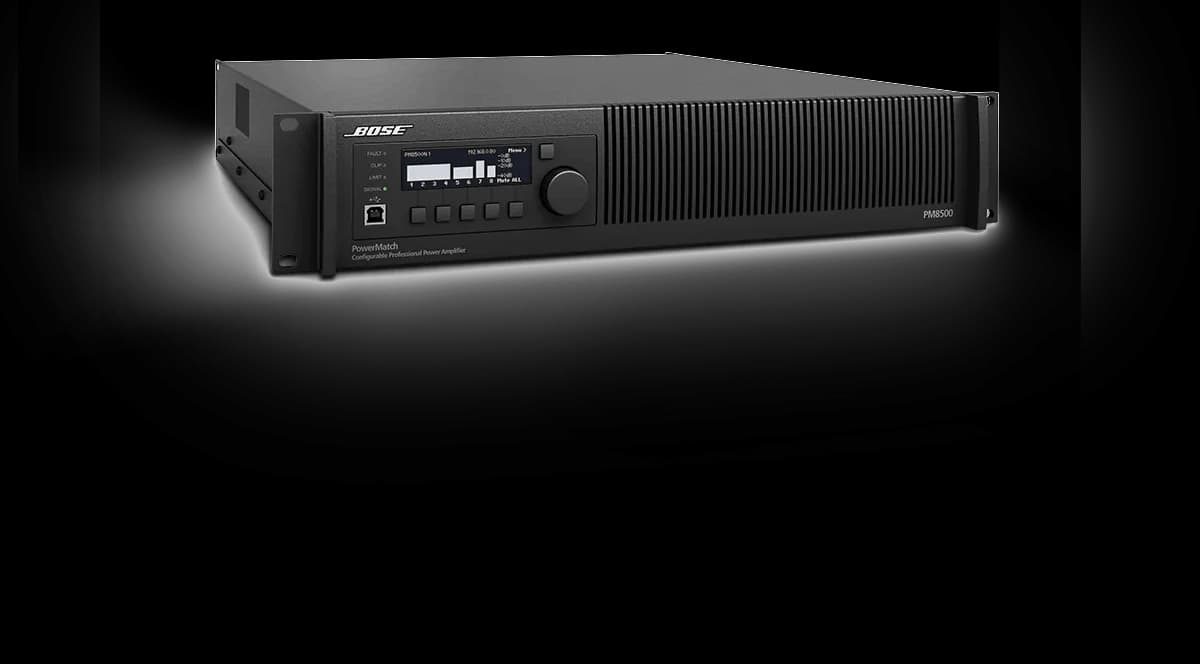

Bose PowerMatch PM8500N
The PowerMatch PM8500N is an 8-channel configurable power amplifier built for the sound reinforcement backbone of large, multi-zone AV systems — auditoriums, town halls and multi-room facilities.
QuadBridge technology lets each group of channels be reconfigured as Mono, V-Bridge, I-Share or Quad mode, so the amplifier's total power can be reallocated across zones without re-cabling, while integrated DSP handles EQ, crossovers and limiting on board.
Specifications
Technical Overview
- Channels
- 8
- Power (2 Ω)
- 450 W/channel
- Power (4 Ω)
- 500 W/channel
- Power (8 Ω)
- 300 W/channel
- Total Rated Power
- 4,000 W
- Frequency Response
- 20 Hz – 20 kHz (±0.5 dB) at 1 W
- THD+N
- < 0.4% at 1 W
- Signal-to-Noise Ratio
- > 102 dB
- Input Channels
- 8 balanced, line-level (3-pin Euroblock)
- DSP — Loudspeaker EQ
- 9-band parametric (±20 dB), notch, shelving
- DSP — Crossovers
- Butterworth, Bessel, Linkwitz-Riley up to 48 dB/octave
- Network/Control
- USB Type-B, RJ-45 Ethernet (100 Mbps), optional Dante card
- Power Class
- Class D
- Mains Voltage
- 100–240 VAC, 50/60 Hz
- Dimensions (H×W×D)
- 3.5 in × 19.0 in × 20.7 in (88 × 483 × 525 mm)
- Rack Space
- 2 RU
- Net Weight
- 28.4 lb (12.9 kg)
- Warranty
- 5 years
Key Features
What It Delivers
- QuadBridge Technology — reconfigurable Mono/V-Bridge/I-Share/Quad channel modes
- Integrated DSP: parametric EQ, crossovers, limiters, matrix mixing, delay
- Drives 2–8 Ω loads or 70/100V distributed lines directly
- Ethernet networking with ControlSpace Designer software integration
- Auto-Standby/Auto-Wake energy-saving power management
