Overview

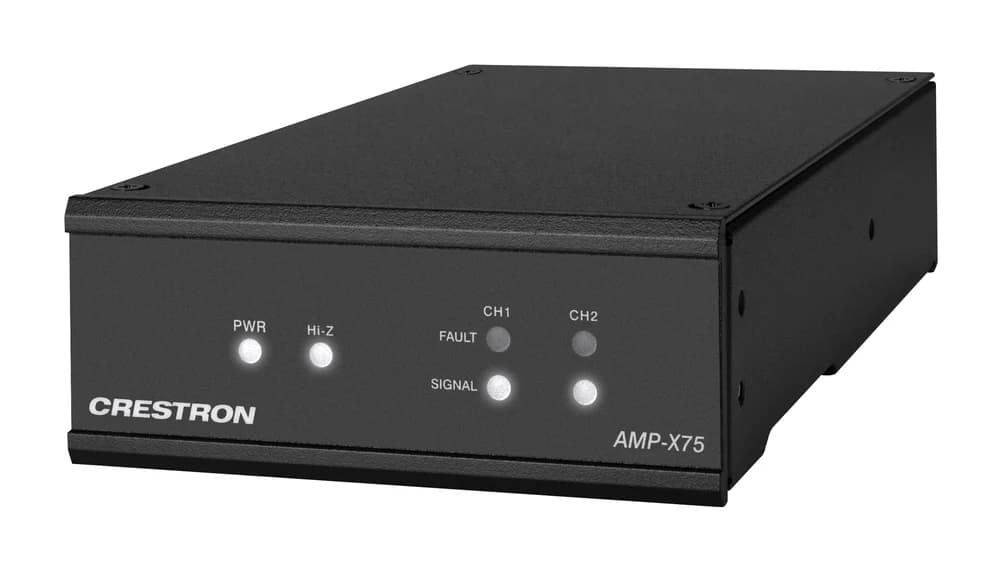

Crestron AMP-X75
The AMP-X75 is a compact, quarter-rack-width amplifier built to save energy, space and cost in conference rooms, small meeting spaces and commercial retail environments.
It's configurable for either Lo-Z (4/8Ω) or Hi-Z (70V/100V) operation, accepts line-level input directly from AV switchers, displays or DSP processors, and can be surface-mounted, rack-mounted or ganged with other units.
Specifications
Technical Overview
- Output Power (LoZ 8Ω, 2ch)
- 35 W per channel
- Output Power (LoZ 8Ω, bridged)
- 75 W
- Output Power (Hi-Z 70V/100V)
- 75 W
- Frequency Response
- 20 Hz – 20 kHz ±0.5 dB @ 1W
- THD+N
- < 0.1% @ 1kHz, -3dB full rated output
- S/N Ratio
- > 103 dBA (20 Hz – 20 kHz, balanced)
- Input Sensitivity
- 1.23 Vrms +4dBu (balanced)
- Gain
- 23 dB @ 8Ω, balanced input
- Power Input
- 100–240V~ 370–200mA, 50/60 Hz
- Dimensions
- 1.75 in H × 4.33 in W × 8.78 in D
- Weight
- 2.1 lb (0.95 kg)
- Mounting
- 1/4-width, 1 RU 19-inch rack, gangable
Key Features
What It Delivers
- Configurable Lo-Z (4/8Ω) or Hi-Z (70V/100V) output
- Up to 75W bridged/Hi-Z output, 35W per channel stereo
- Convection-cooled (fanless) for silent operation
- Auto standby after 25 minutes with no signal
- Stereo ALS output for assistive listening systems
