Overview
Crestron DM-NAX-AMP-X300
The DM-NAX-AMP-X300 is a networked Audio-over-IP amplifier supporting DM NAX, Dante and AES67, with full onboard DSP configured through a streamlined web interface.
A half-rack, 1RU form factor and configurable Lo-Z (4/8Ω) or Hi-Z (70V/100V) outputs make it a flexible building block for distributed audio systems that need networked audio routing rather than a fixed point-to-point amplifier.
Specifications
Technical Overview
- Output Power (1ch)
- 150 W (Lo-Z 8Ω), 300 W (bridged/Hi-Z)
- Output Power (2ch)
- 150 W each
- Output Power (4ch)
- 75 W each
- Frequency Response
- 20 Hz – 20 kHz ±0.5 dB
- THD+N
- < 0.005% @ 1kHz (analog); < 0.1% @ 1kHz (speaker)
- S/N Ratio
- 105 dB A-weighted (balanced analog)
- Mic Input Gain
- Up to 60 dB
- Connectors

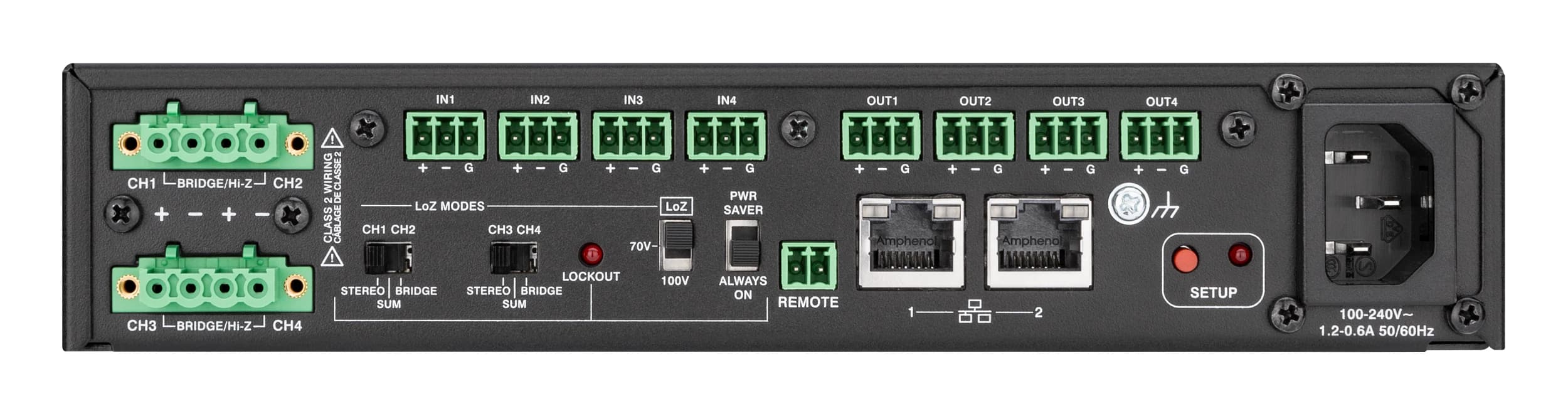

- 4x speaker outputs, 4x analog inputs, 4x line outputs, 2x Ethernet RJ45
- Power Consumption
- 75 W (all channels, 1/8 power, 8Ω)
- Dimensions
- 1.74 in H × 9.38 in W × 11.03 in D
- Weight
- 5.3 lb (2.4 kg)
Key Features
What It Delivers
- Native Dante, DM NAX and AES67 support
- Full onboard DSP with matrix mixing
- Configurable Lo-Z (4/8Ω) or Hi-Z (70V/100V) output up to 300W bridged
- Half-rack, 1RU form factor for surface or rack mounting
- Direct Crestron Home OS and SIMPL Windows integration
