Overview

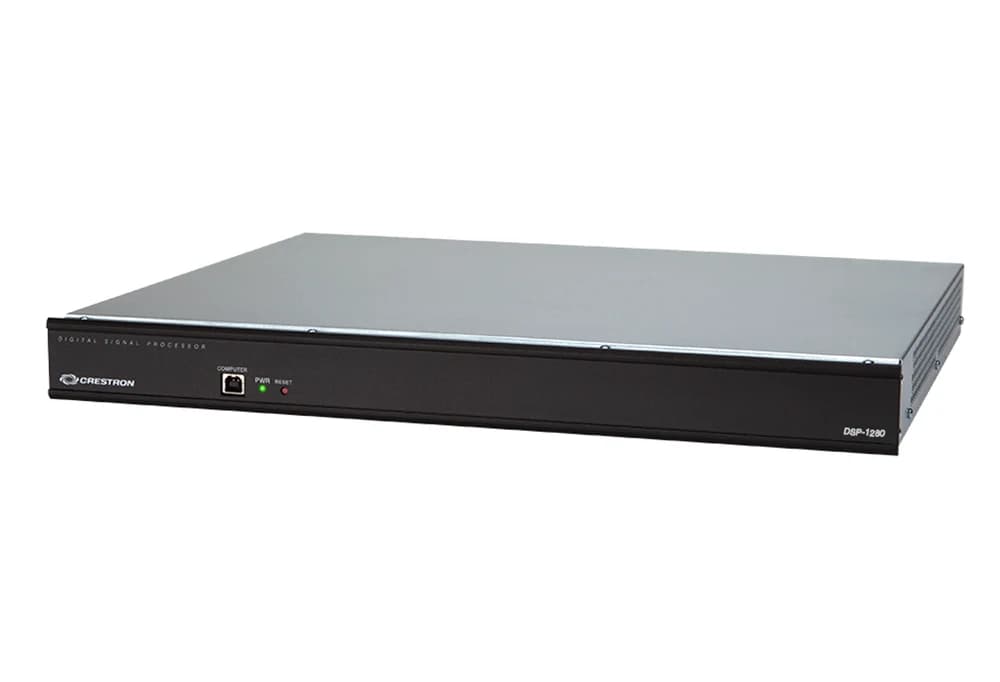

Crestron Avia DSP-1280
The Avia DSP-1280 is a professional digital audio signal processor built to unify room audio with the same Crestron control system running the rest of the space, configured through the Avia Audio Tool software.
Twelve mic/line inputs and eight balanced outputs, with a hybrid channel-strip architecture and eight internal aux buses, give integrators the routing flexibility to handle everything from a single conference room to a multi-zone AV system.
Specifications
Technical Overview
- Audio Conversion
- 24-bit, 48 kHz A/D and D/A
- Frequency Response
- 20 Hz – 20 kHz ±0.5 dB
- THD
- 0.001% (0 dB gain), 0.01% (54 dB gain)
- Dynamic Range
- 110 dB (22 Hz – 22 kHz)
- Latency
- 3.0 ms (analog in to analog out)
- Inputs
- 12x mic/line, 3-pin terminal blocks, +48V phantom power
- Outputs
- 8x balanced line, 3-pin terminal blocks
- Communications
- 1x Gigabit Ethernet, 1x USB Type B
- Power
- 1.8A @ 100–240V AC, 50/60 Hz, 30 W typical
- Dimensions
- 17.28 in W × 1.72 in H × 14.35 in D
- Weight
- 8.8 lb
Key Features
What It Delivers
- 12 mic/line inputs with 66 dB gain range, 8 balanced outputs
- Native Crestron Control integration and touchscreen UI export
- Hybrid channel-strip architecture with 8 internal aux buses
- Real-time configuration via Ethernet or USB
- Single-space 19-inch rack-mountable design
Get Started
Ready to Add the Crestron Avia DSP-1280 to Your Project?
Talk to Savi Vision's team for pricing, availability and deployment guidance on this product.
