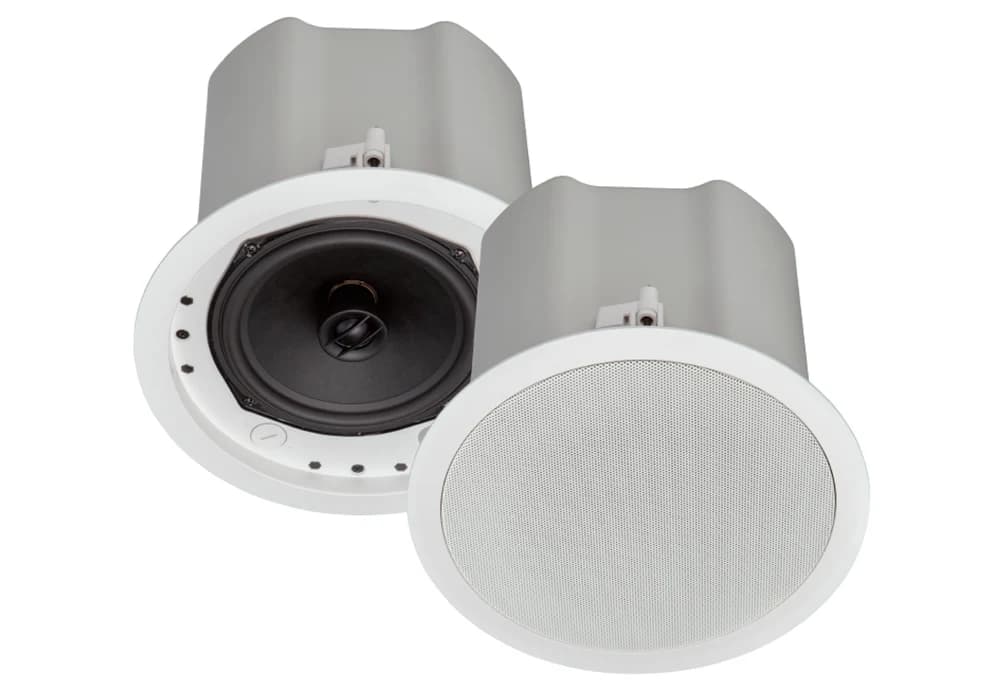

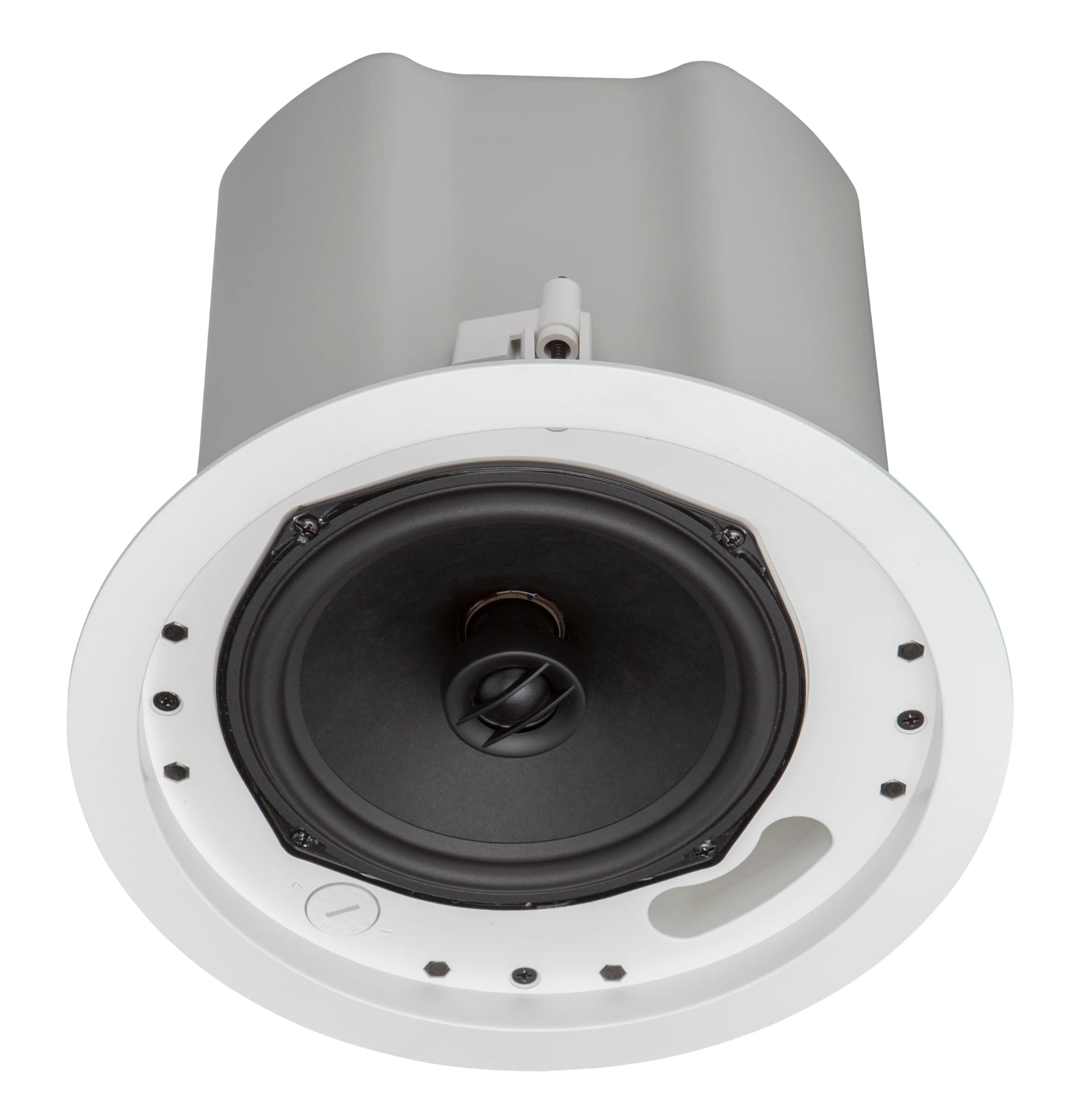

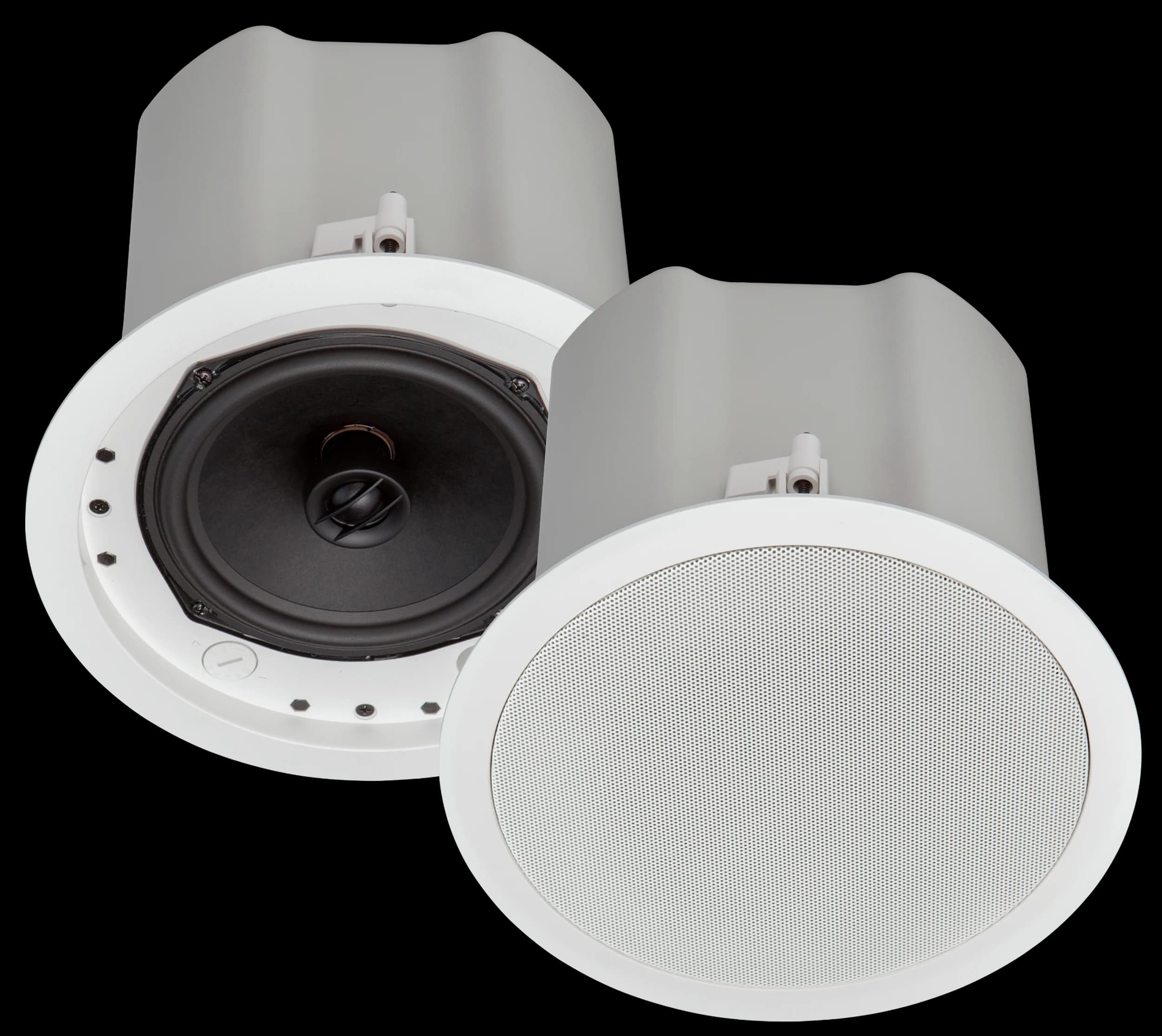

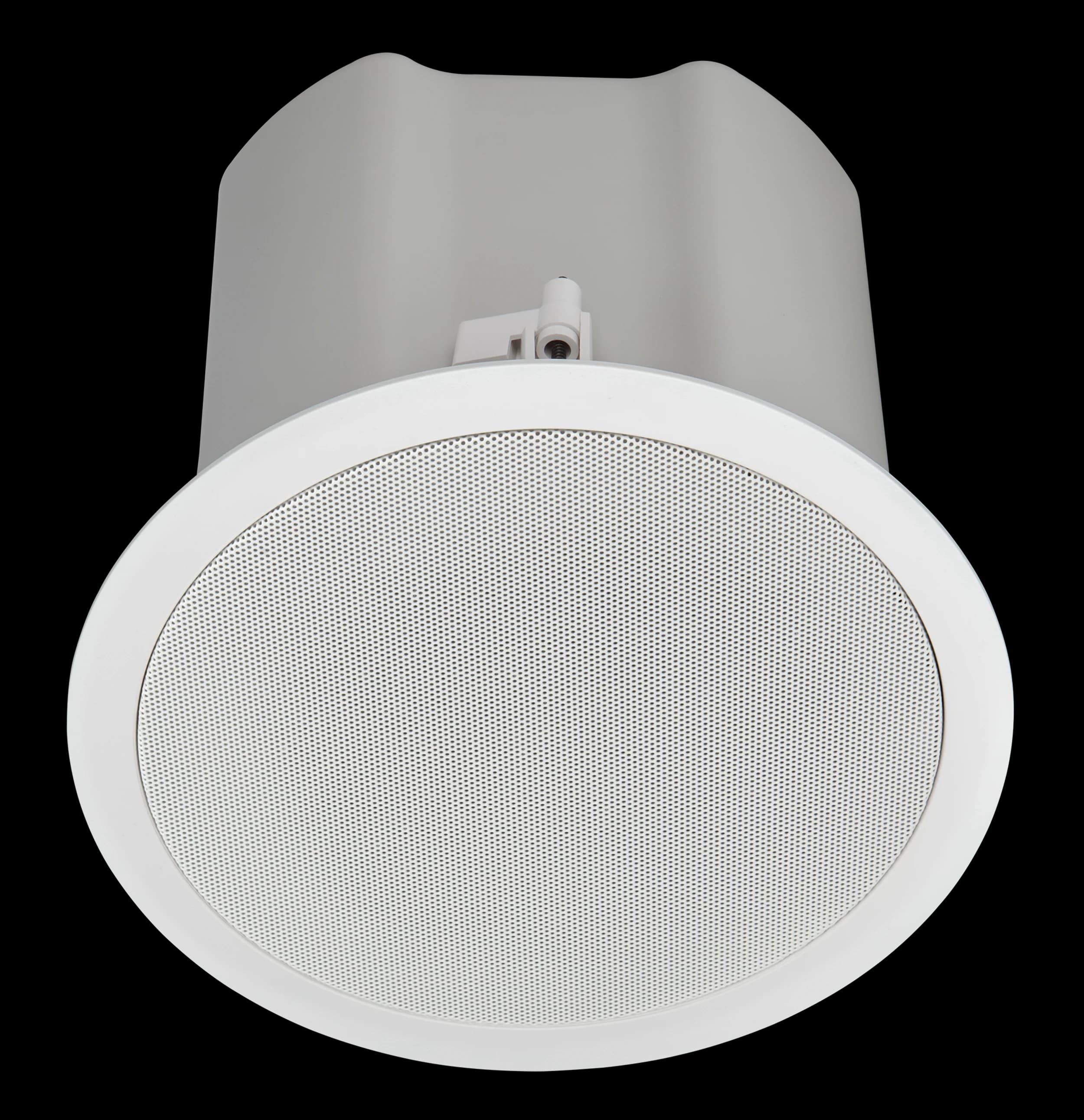

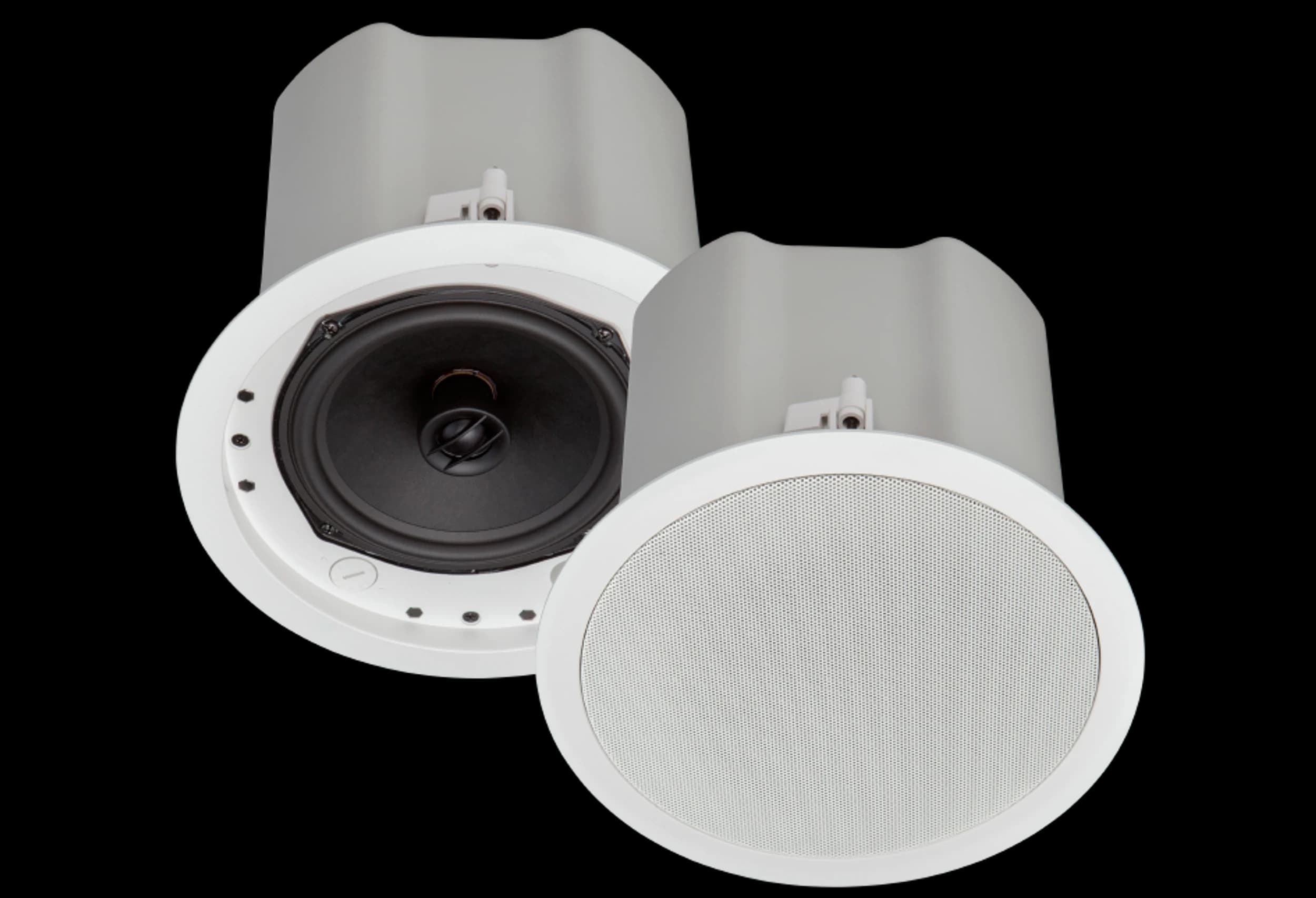

Crestron Saros Integrator ICI6T
The Saros Integrator ICI6T is a cost-efficient, commercial-grade 6.5-inch two-way in-ceiling speaker built for public address and background music in restaurants, retail spaces, convention facilities and offices.
A friction-fit metal grille, toggle-clamp mounting and included tile bridge make it quick to install in both drop-tile and drywall ceilings, while a built-in 30W multi-tap transformer supports 70V and 100V distributed systems.
Specifications
Technical Overview
- Woofer
- 6.5 in cone, ported
- Tweeter
- 0.79 in dome
- Impedance
- 8 Ω nominal
- Transformer Taps (70V)
- 3.75, 7.5, 15, 30 W
- Transformer Taps (100V)
- 7.5, 15, 30 W
- Frequency Response
- 95 Hz – 15 kHz (±3 dB)
- Frequency Range
- 65 Hz – 20 kHz (-10 dB)
- Power Handling
- 50 W program (8 Ω)
- Sensitivity
- 91 dB @ 1W/1m
- Coverage
- 110° conical (nominal)
- Diameter / Depth
- 9.95 in (253 mm) / 8.63 in (219 mm)
- Weight
- 6.9 lb (3.2 kg)
- Compliance
- UL 1480, UL 2043
Key Features
What It Delivers
- 6.5-inch woofer with wide-dispersion dome tweeter
- Built-in 30W 70/100V multi-tap transformer
- Toggle-clamp mounting with included tile bridge
- Plenum-rated metal enclosure, UL 2043 compliant
