Overview

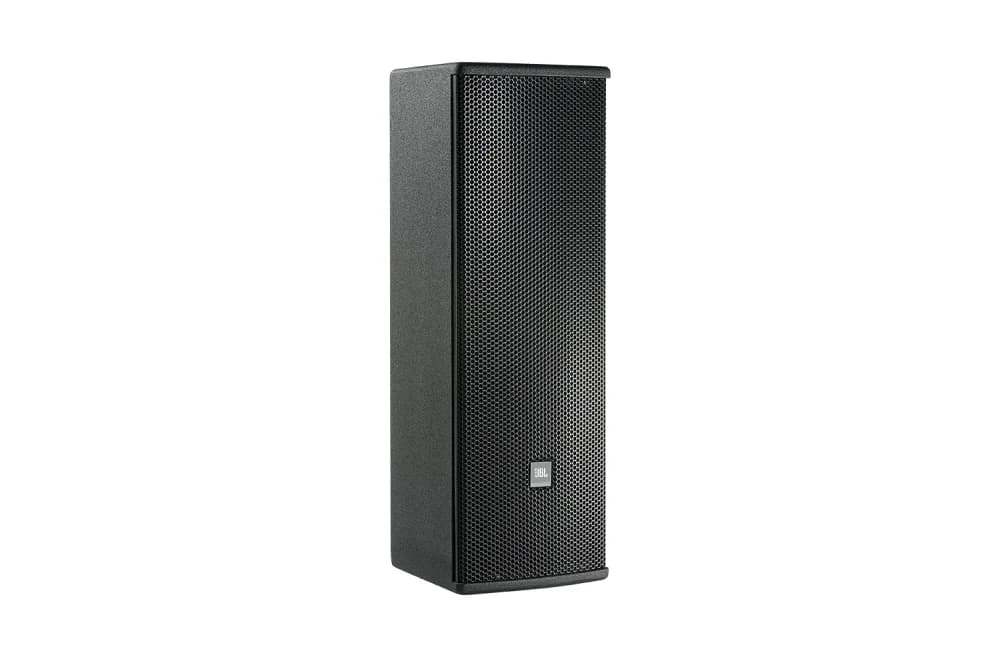

JBL AC28/95
The AC28/95 is a compact dual 8-inch 2-way loudspeaker from JBL's AE Compact family, built for installed sound in auditoriums, houses of worship and other large-format venues that need high output from a small footprint.

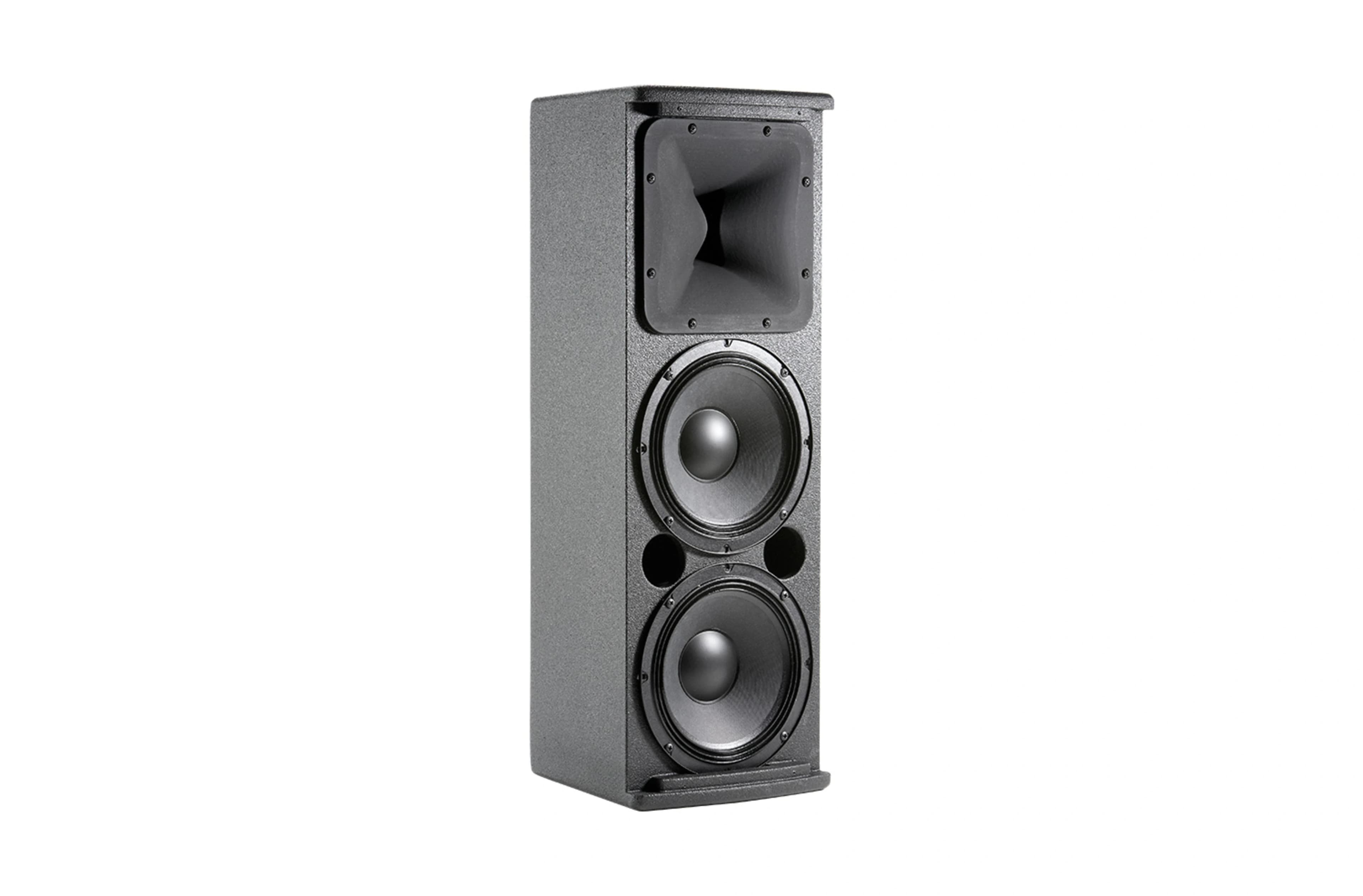

Two 8-inch low-frequency drivers pair with a 1-inch exit compression driver on a 90° × 50° horn, delivering 94dB sensitivity and up to 120dB max SPL, with six M8 suspension points for flexible flown or fixed installation.
Specifications
Technical Overview
- Frequency Response
- 65 Hz – 20 kHz (±3 dB)
- Sensitivity
- 94 dB SPL (1W @ 1m)
- Max SPL
- 120 dB (1m)
- Power Rating
- 700 W AES (375W/750W/1500W continuous/program/peak)
- Impedance
- 8 ohms
- Low Frequency Drivers
- 2× 205mm (8-inch), 64mm voice coil
- High Frequency Driver
- 1× 25mm (1-inch) exit compression driver
- Coverage Pattern
- 90° × 50°
- Connectors
- Dual Neutrik NL4 + screw terminal
- Dimensions
- 679.5 × 237.5 × 254.0 mm
- Weight
- 18.6 kg
Key Features
What It Delivers
- Dual 8-inch 2-way design, 700W AES power handling
- 90° × 50° coverage horn with 1-inch exit compression driver
- 94dB sensitivity, 120dB max SPL (1m)
- Exterior-grade multi-ply hardwood plywood enclosure
- Six M8 suspension points for flexible mounting
- Dual Neutrik NL4 plus screw terminal connectors
Get Started
Ready to Add the JBL AC28/95 to Your Project?
Talk to Savi Vision's team for pricing, availability and deployment guidance on this product.
