JBL COL800-BK

Name: Savi Vision
Address: C-57/3, Tundelkar Ji Road, Okhla Phase II, Okhla Industrial Estate, New Delhi, 110020, IN

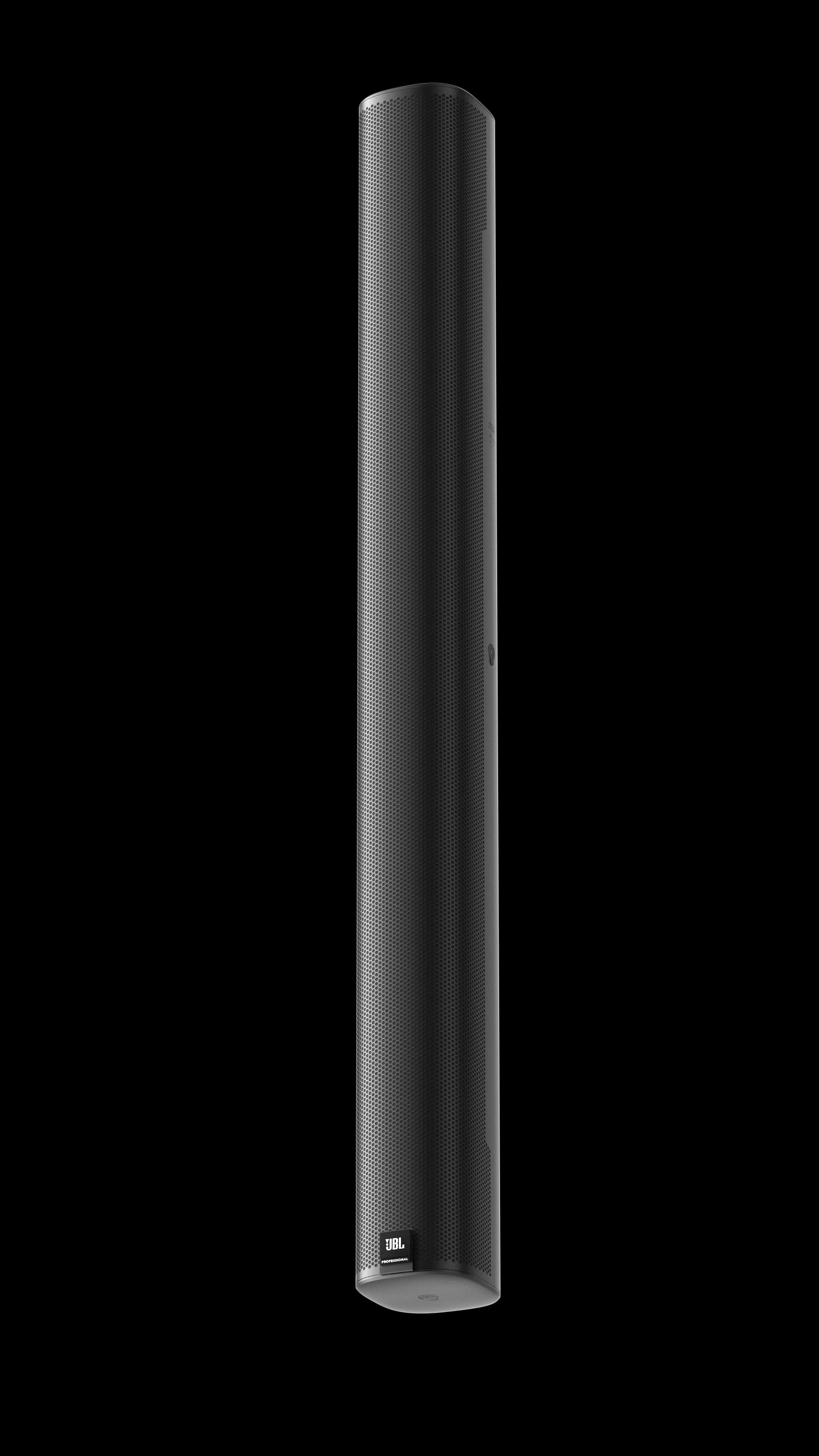

The JBL COL800-BK is a 32-inch slim column array loudspeaker, the larger sibling of the COL600, with four racetrack woofers and two tweeters driving a 160°H×60°V coverage pattern with 10° built-in downward tilt.

Specifications

Technical Overview

Drivers: 4× 5"×2.25" racetrack woofers + 2× 0.8" tweeters
Power: 300W cont. program (2hr) / 150W pink noise (600W peak) @ 8Ω
Sensitivity: 88 dB (2.83V/1m)
Coverage: 160°H × 60°V, 10° down-tilt
Frequency Range: 85Hz–20kHz (-10dB) / 125Hz–18kHz (±3dB)
Transformer: Built-in 70V/100V multi-tap, <1dB insertion loss
Max Input: 33V RMS / 66V peak
Dimensions: 31.5"(H) × 4"(W) × 3.66"(D) / 800 × 102 × 93mm
Weight: ~11.46lb
Rating: IP54
Finish: Black
