Overview

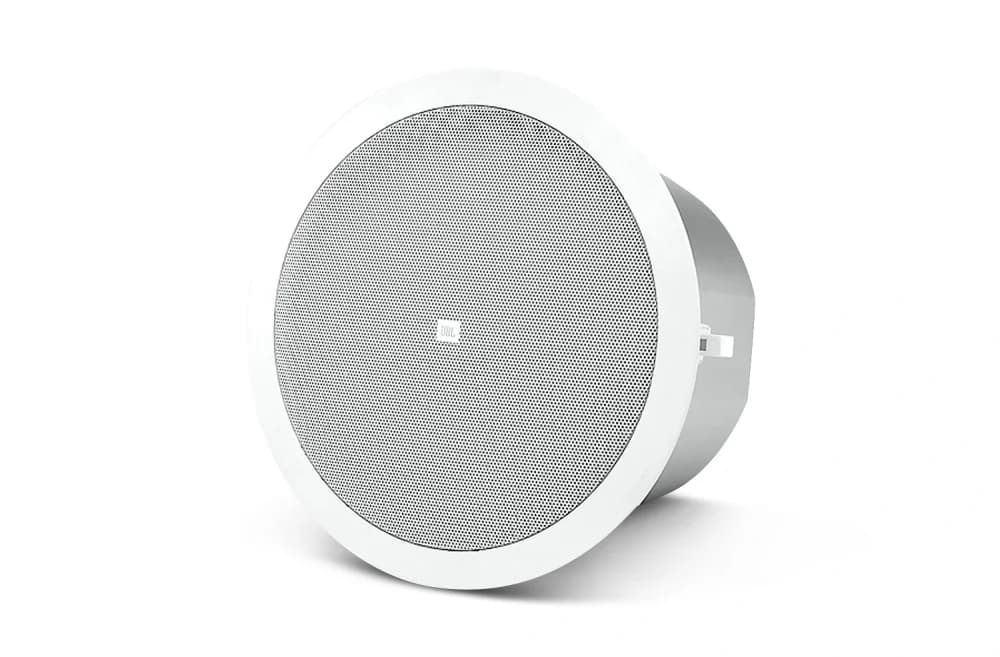

JBL Control 24C
The Control 24C is a compact 4-inch coaxial ceiling loudspeaker built for background music and paging in small offices, huddle rooms and reception areas.
A wide 130° conical coverage pattern lets a single speaker cover more floor area, reducing the number of ceiling points needed in smaller rooms.
Specifications
Technical Overview
- Frequency Range
- 80 Hz – 20 kHz
- Power Rating
- 80 W continuous program, 40 W pink noise, 160 W peak
- Sensitivity
- 86 dB SPL @ 1 m
- Coverage Angle
- 130° conical
- Maximum SPL @ 1 m
- 102 dB (108 dB peak)
- Impedance
- 16 Ω
- LF Driver
- 100 mm (4.0 in)
- HF Driver
- 19 mm (0.75 in) titanium-coated
- Ceiling Cutout
- 168 mm (6.6 in) diameter
- Plenum Rated
- Yes
- Color
- White
Key Features
What It Delivers
- 4-inch coaxial woofer with titanium-coated tweeter
- 130° conical coverage pattern
- Plenum-rated for return-air ceiling spaces
- 4-pin locking input connector
