Overview

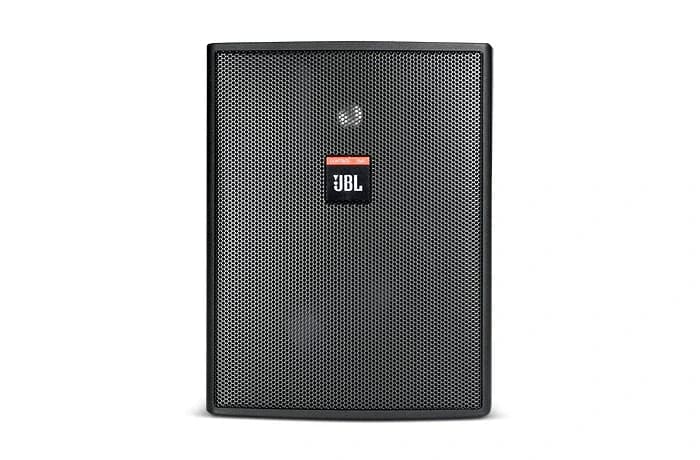

JBL Control 25AV
The Control 25AV is a two-way surface-mount loudspeaker for rooms and outdoor areas where an in-ceiling speaker isn't an option — atriums, patios, terraces and covered outdoor seating.
A weather-resistant enclosure (IP-X4 splashproof, Mil-Spec 810 rated) and 70/100V transformer taps make it a flexible fit for both indoor background audio and covered outdoor zones.
Specifications
Technical Overview
- Frequency Range (-10 dB)
- 70 Hz – 23 kHz
- Power Capacity
- 200 W continuous program, 100 W pink noise
- Transformer Taps (70V)
- 60, 30, 15, 7.5 W
- Transformer Taps (100V)
- 60, 30, 15 W
- Sensitivity
- 87 dB SPL, 1 W @ 1 m
- Coverage Angle
- 100°H x 100°V
- Maximum SPL @ 1 m
- 113 dB continuous peak pink noise
- Impedance
- 8 Ω
- Woofer
- 130 mm (5.25 in) polypropylene-coated
- Tweeter
- 20 mm (0.75 in) titanium-coated PEI
- Outdoor Rating
- Mil Spec 810 compliant, IP-X4 splashproof
- Dimensions
- 236 × 186 × 159 mm (9.3 × 7.4 × 6.3 in)
- Weight
- 4.0 kg (9 lb)
Key Features
What It Delivers
- 5.25-inch polypropylene-coated woofer with titanium-coated tweeter
- 70/100V transformer taps for distributed systems
- IP-X4 splashproof, Mil-Spec 810 compliant enclosure
- 100°H x 100°V coverage pattern
Get Started
Ready to Add the JBL Control 25AV to Your Project?
Talk to Savi Vision's team for pricing, availability and deployment guidance on this product.
