Overview

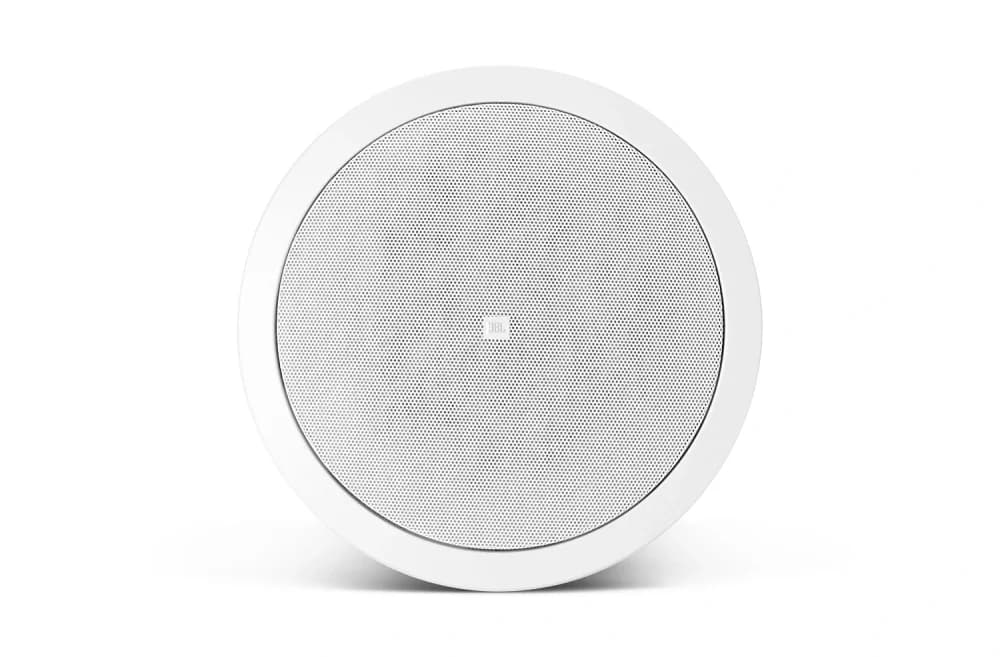

JBL Control 26C
The Control 26C is a 6.5-inch coaxial ceiling loudspeaker built for even, full-range coverage in meeting rooms and mid-sized conference spaces.
A 16Ω direct-drive design keeps it simple to pair with low-impedance amplifiers, while a 110° conical coverage pattern maintains consistent sound across the room.
Specifications
Technical Overview
- Frequency Range
- 75 Hz – 20 kHz
- Power Rating
- 150 W continuous program, 75 W pink noise (IEC)
- Sensitivity
- 89 dB, 1 m/1 W
- Coverage Angle
- 110° conical
- Directivity Index
- 4.6 dB (500 Hz – 4 kHz avg)
- Impedance
- 16 Ω
- Maximum SPL @ 1 m
- 107 dB (113 dB peak)
- LF Driver
- 165 mm (6.5 in)
- HF Driver
- 19 mm (0.75 in)
- Dimensions
- 210 mm × 252 mm (8.3 in × 9.9 in)
- Net Weight
- 2.7 kg (6 lb)
- Ceiling Cutout
- 220 mm (8.75 in) diameter
Key Features
What It Delivers

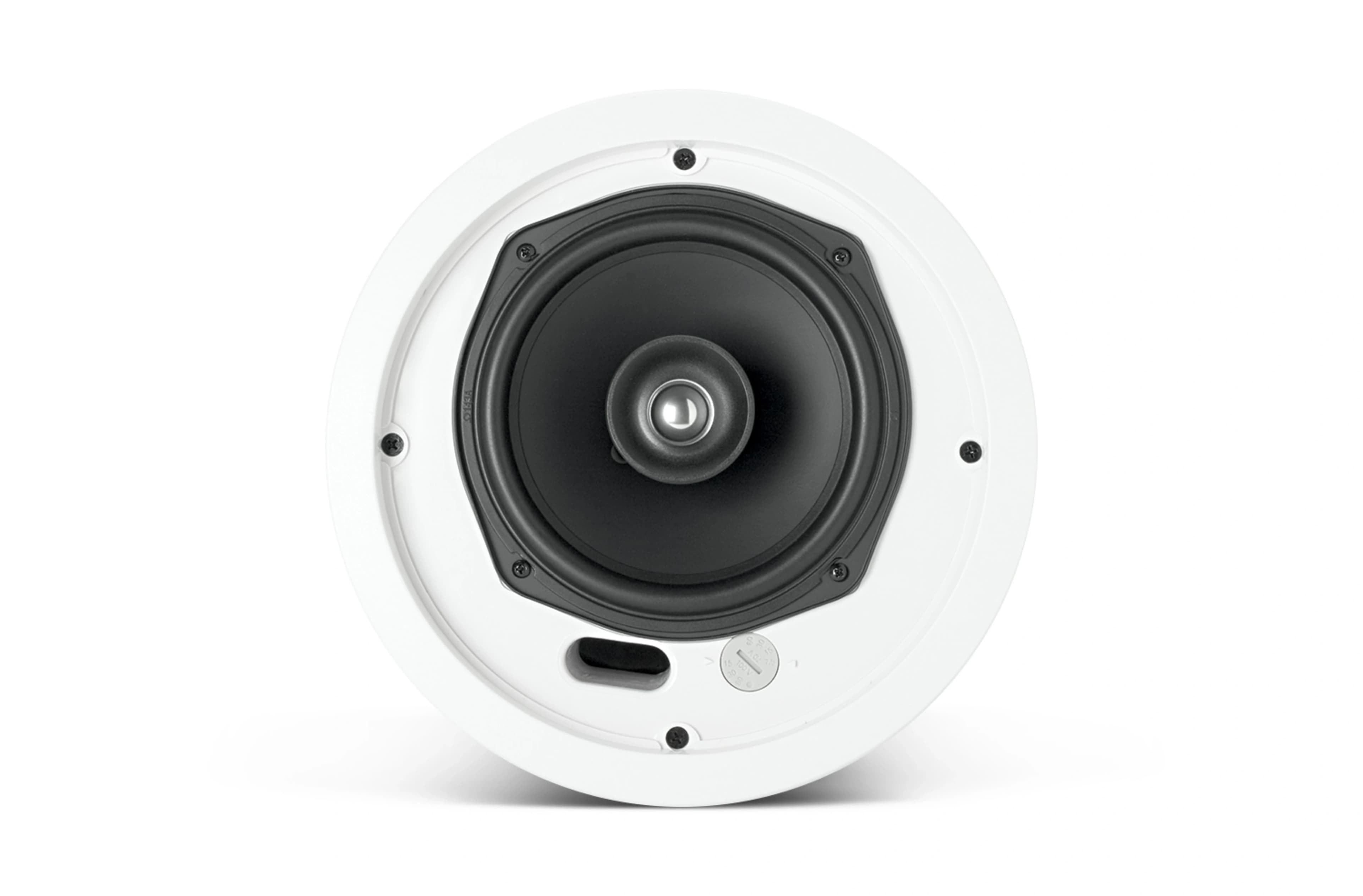

- 6.5-inch coaxial woofer with titanium-coated tweeter
- 110° conical coverage pattern
- 150 W continuous program power handling
- Metal back-can enclosure
