Overview

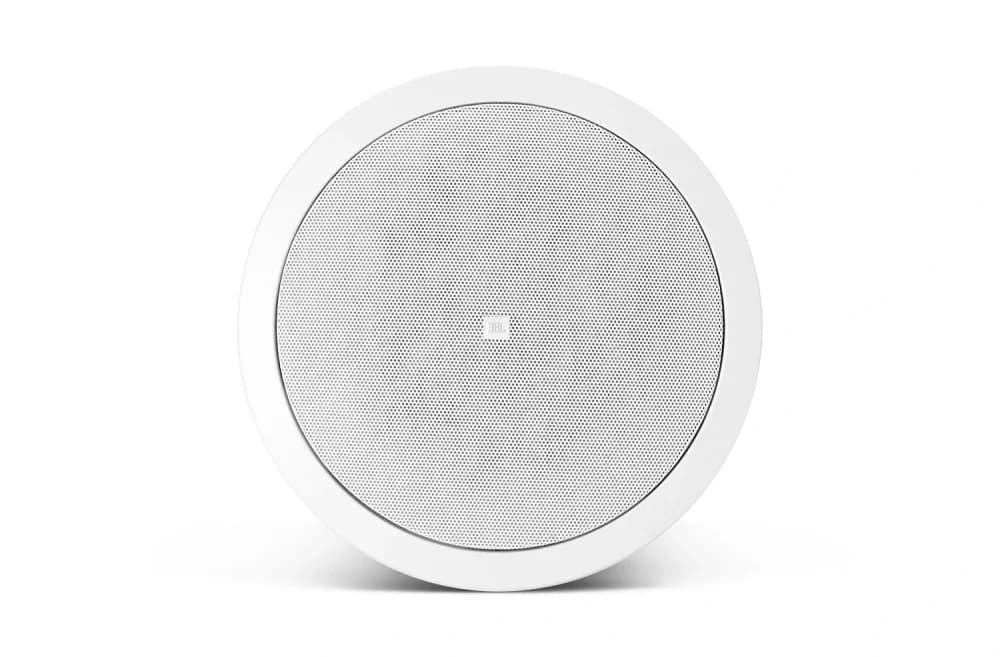

JBL Control 26CT
The Control 26CT pairs the same 6.5-inch coaxial driver as the Control 26C with a built-in 70/100V transformer, making it the right choice when many ceiling speakers need to run off a single distributed-audio amplifier.
Selectable transformer taps let installers balance output level room-by-room from one central amplifier zone.
Specifications
Technical Overview
- Frequency Range
- 75 Hz – 20 kHz
- Transformer Taps
- 60 W, 30 W, 15 W, 7.5 W @ 70V
- Coverage Angle
- 110° conical
- Directivity Index
- 4.6 dB
- Maximum SPL @ 1 m
- 107 dB (top 70V/100V tap)
- LF Driver
- 165 mm (6.5 in)
- HF Driver
- 19 mm (0.75 in)
- Dimensions
- 210 mm × 252 mm (8.3 in × 9.9 in)
- Net Weight
- 4.2 kg (10 lb)
- Ceiling Cutout
- 220 mm (8.75 in) diameter
- Color
- White
Key Features
What It Delivers

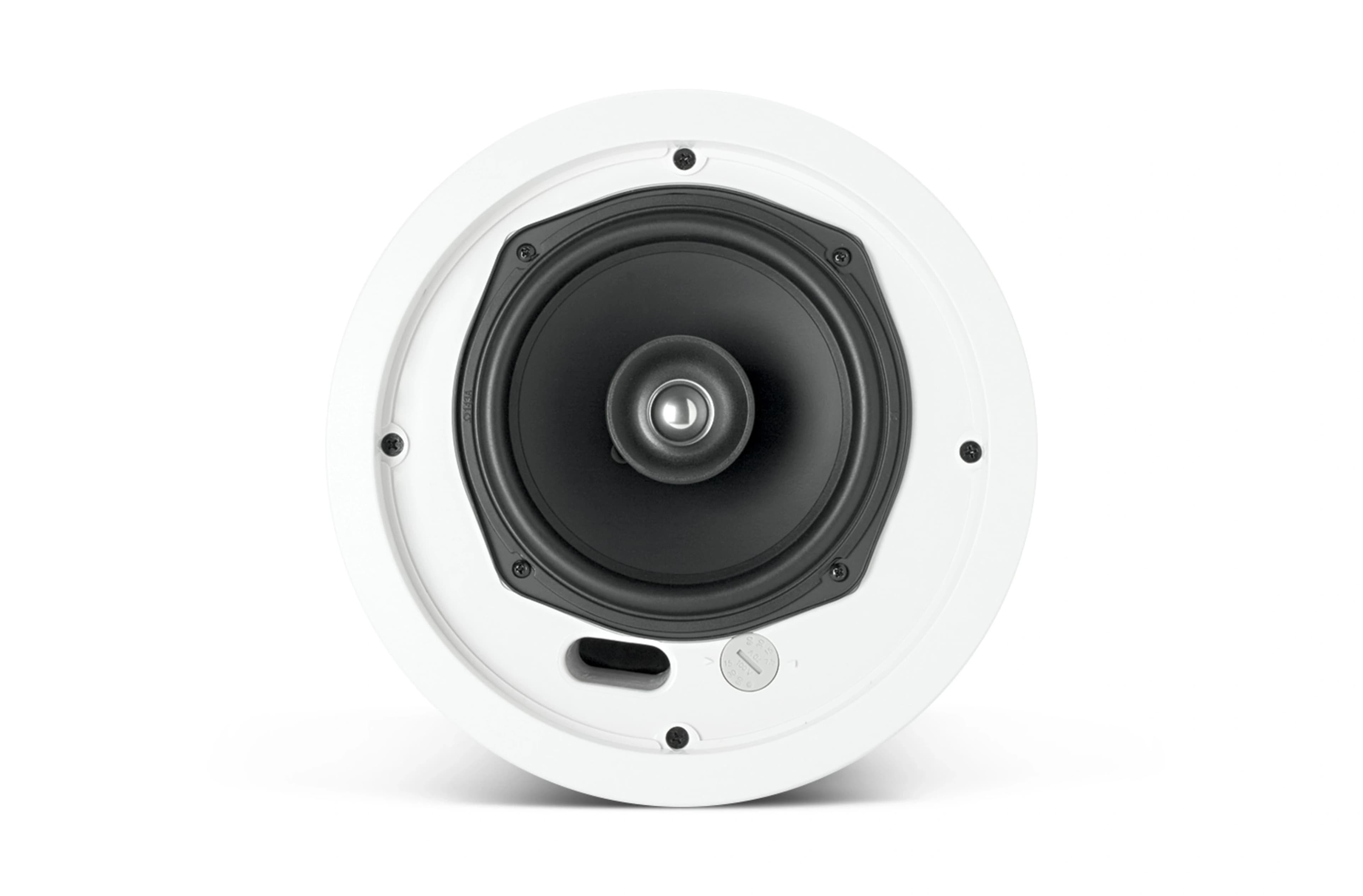

- 6.5-inch coaxial woofer with titanium-coated tweeter
- Built-in 70/100V transformer with selectable taps
- 110° conical coverage pattern
- Metal back-can enclosure
