Overview

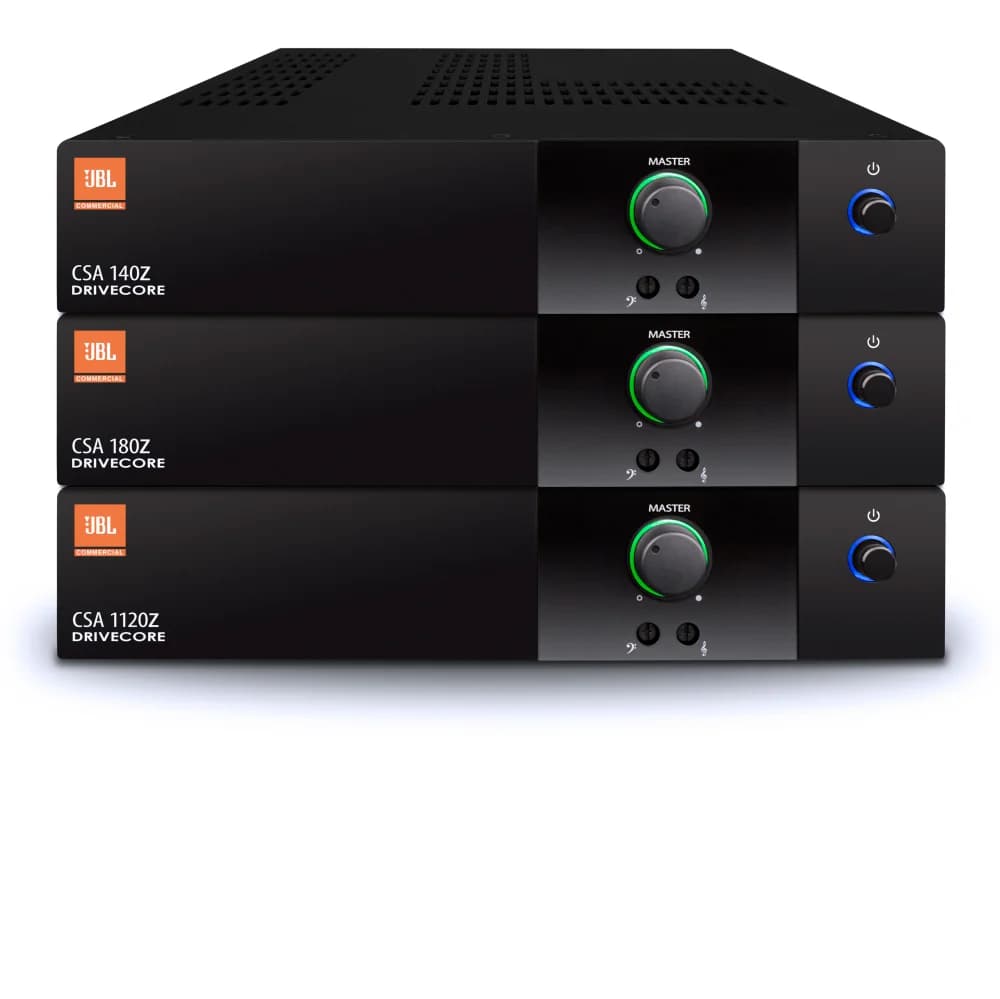

JBL CSA 180Z
The CSA 180Z is a single-channel, 80W commercial power amplifier built on Crown's DriveCore technology, designed to power a single background-music or paging zone.
It supports 70V and 100V distributed lines out of the box, with RJ45 connectors for JBL CSR-V wall-mounted volume controls, in a fanless, space-saving 1U chassis.
Specifications
Technical Overview
- Channels
- 1
- Power Output
- 80 W
- Input Sensitivity
- 1.4 Vrms for 8 Ω
- Input Impedance
- 20 kΩ / 50 kΩ
- Phantom Power
- 27 VDC
- AC Line Voltage
- 100–240 V, 50/60 Hz
- Dimensions
- 1.7 in × 8.6 in × 11.9 in (43.3 × 218.5 × 303.4 mm)
- Remote Control

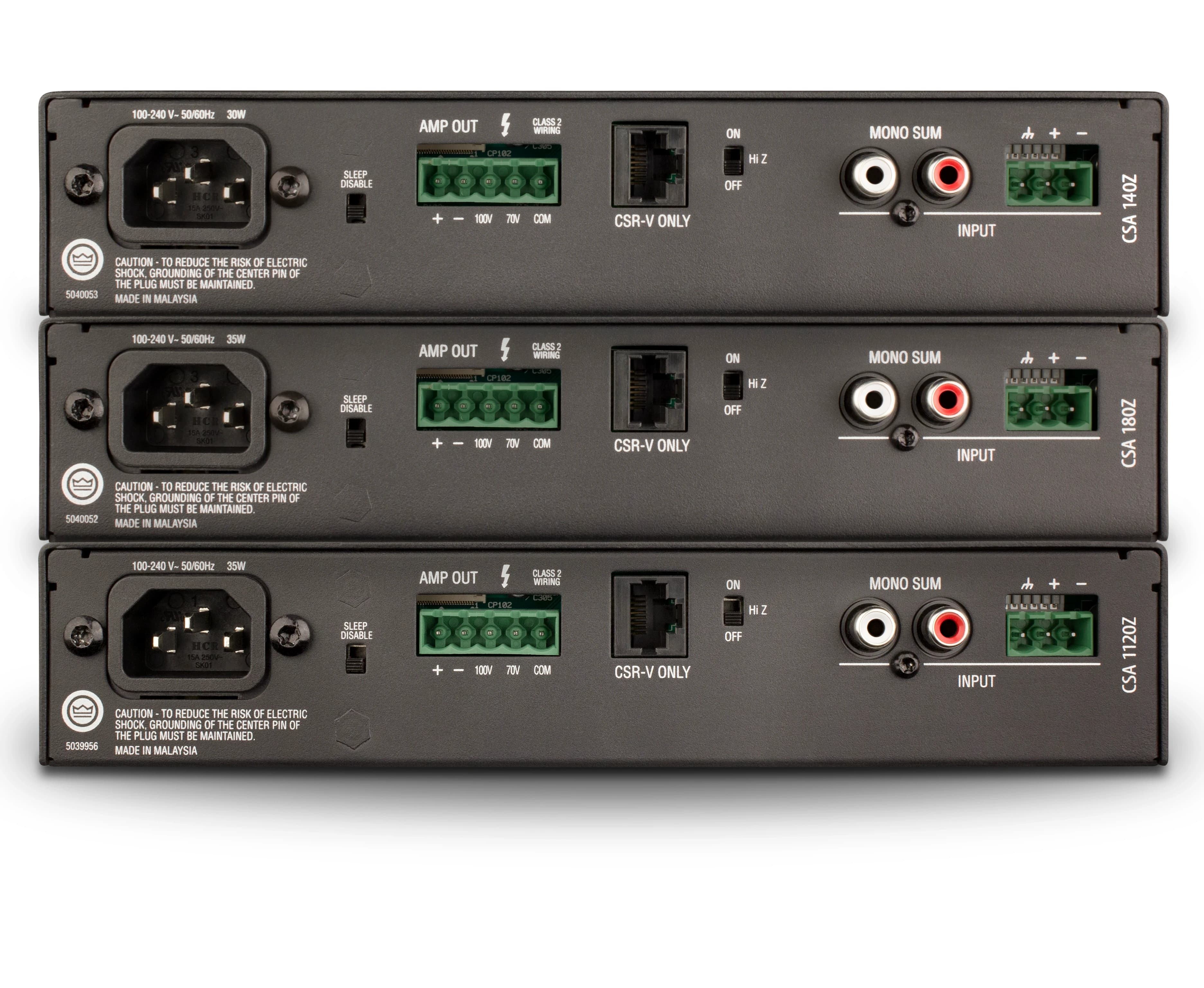

- RJ45 for JBL CSR-V volume controls
Key Features
What It Delivers
- Crown DriveCore amplifier technology
- 70V and 100V output, no external transformer required
- RJ45 connectors for JBL CSR-V remote volume controls
- Universal power supply (100–240 VAC, 50/60 Hz)
- Fanless, 1U rack-mount design
Get Started
Ready to Add the JBL CSA 180Z to Your Project?
Talk to Savi Vision's team for pricing, availability and deployment guidance on this product.
