Overview

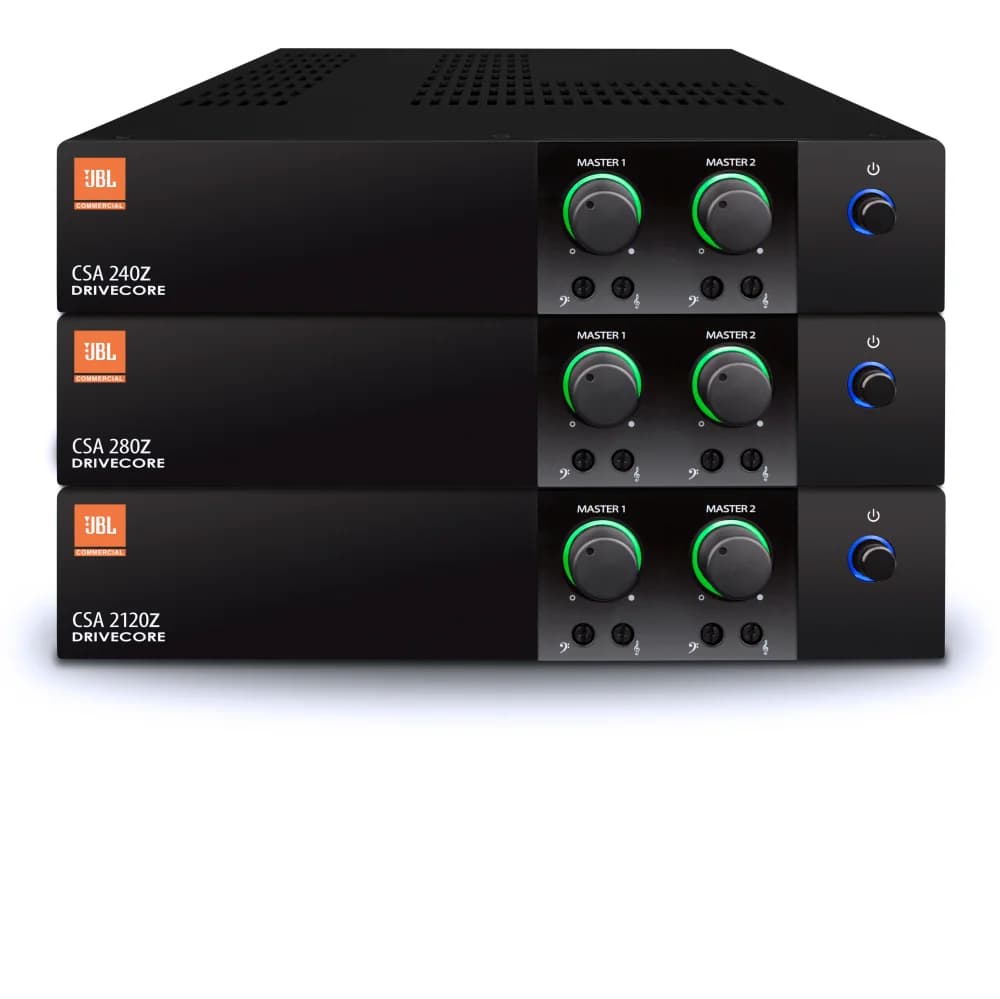

JBL CSA 280Z
The CSA 280Z extends the CSA series to two independent 80W channels, letting one amplifier drive two separate background-audio or paging zones.

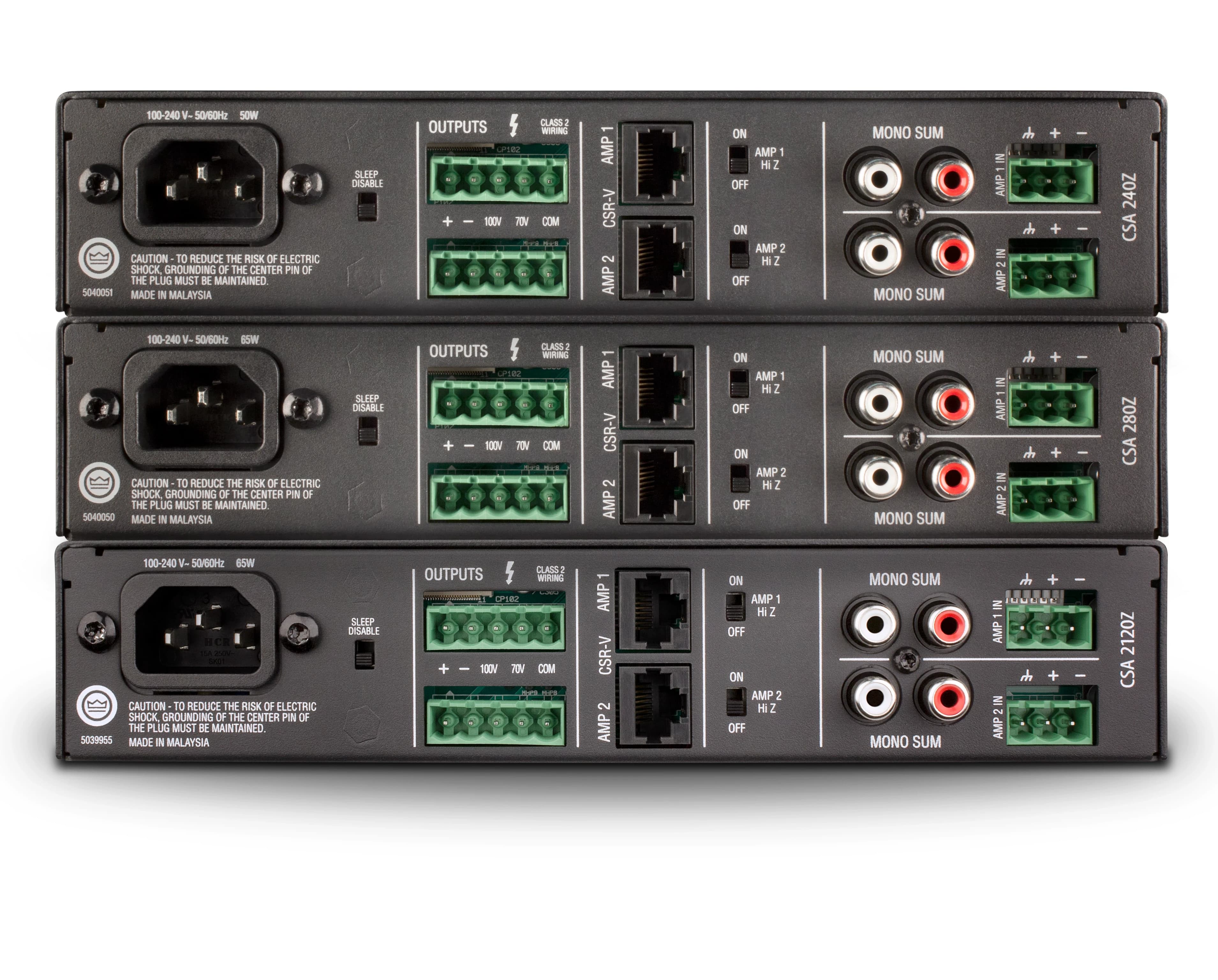

Like the rest of the CSA range, it runs 70V/100V or 8Ω loads directly and includes RJ45 ports for JBL CSR-V remote volume controls.
Specifications
Technical Overview
- Channels
- 2
- Power Output
- 80 W per channel
- Input Sensitivity
- 1.4 Vrms for 8 Ω
- Input Impedance
- 20 kΩ / 50 kΩ
- Phantom Power
- 27 VDC
- AC Line Voltage
- 100–240 V, 50/60 Hz
- Dimensions
- 1.75 in × 8.5 in × 12 in (44.45 × 215.9 × 304.8 mm)
- Remote Control
- RJ45 for JBL CSR-V volume controls
Key Features
What It Delivers
- Crown DriveCore amplifier technology
- 2 independent 70V/100V/8Ω output channels
- RJ45 connectors for JBL CSR-V remote volume controls
- Universal power supply (100–240 VAC, 50/60 Hz)
- Fanless, 1U rack-mount design
Get Started
Ready to Add the JBL CSA 280Z to Your Project?
Talk to Savi Vision's team for pricing, availability and deployment guidance on this product.
