Overview

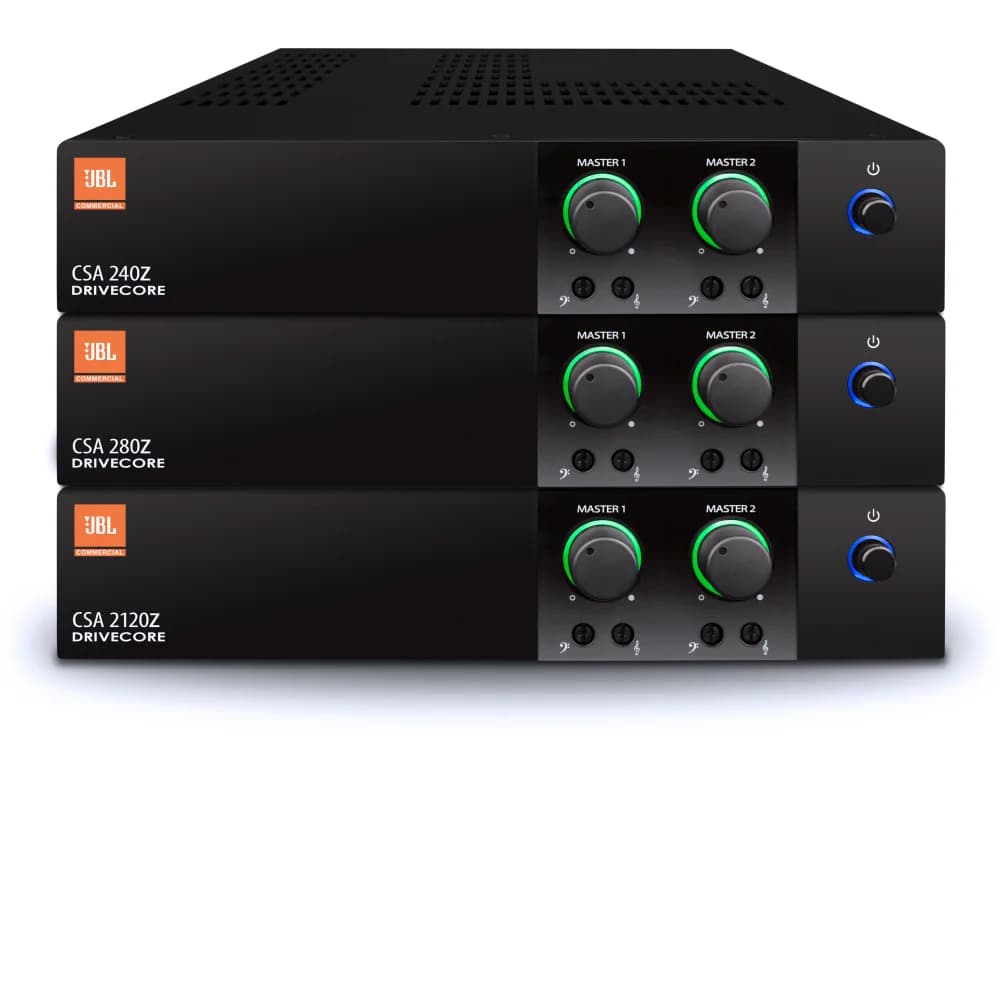

JBL CSA2120Z
The CSA2120Z is the highest-power model in JBL's CSA commercial amplifier series, delivering 120W per channel across two independent zones for larger distributed-audio systems.
It shares the same 70V/100V/8Ω flexibility, RJ45 remote-volume support and fanless 1U chassis as the rest of the CSA range.
Specifications
Technical Overview
- Channels
- 2
- Power Output
- 120 W per channel
- Input Sensitivity
- 1.4 Vrms for 8 Ω
- Input Impedance
- 20 kΩ / 50 kΩ
- Phantom Power
- 27 VDC
- AC Line Voltage
- 100–240 V, 50/60 Hz
- Dimensions
- 1.75 in × 8.5 in × 12 in (44.45 × 215.9 × 304.8 mm)
- Remote Control
- RJ45 for JBL CSR-V volume controls
Key Features
What It Delivers
- Crown DriveCore amplifier technology
- 2 independent 70V/100V/8Ω output channels at 120 W each

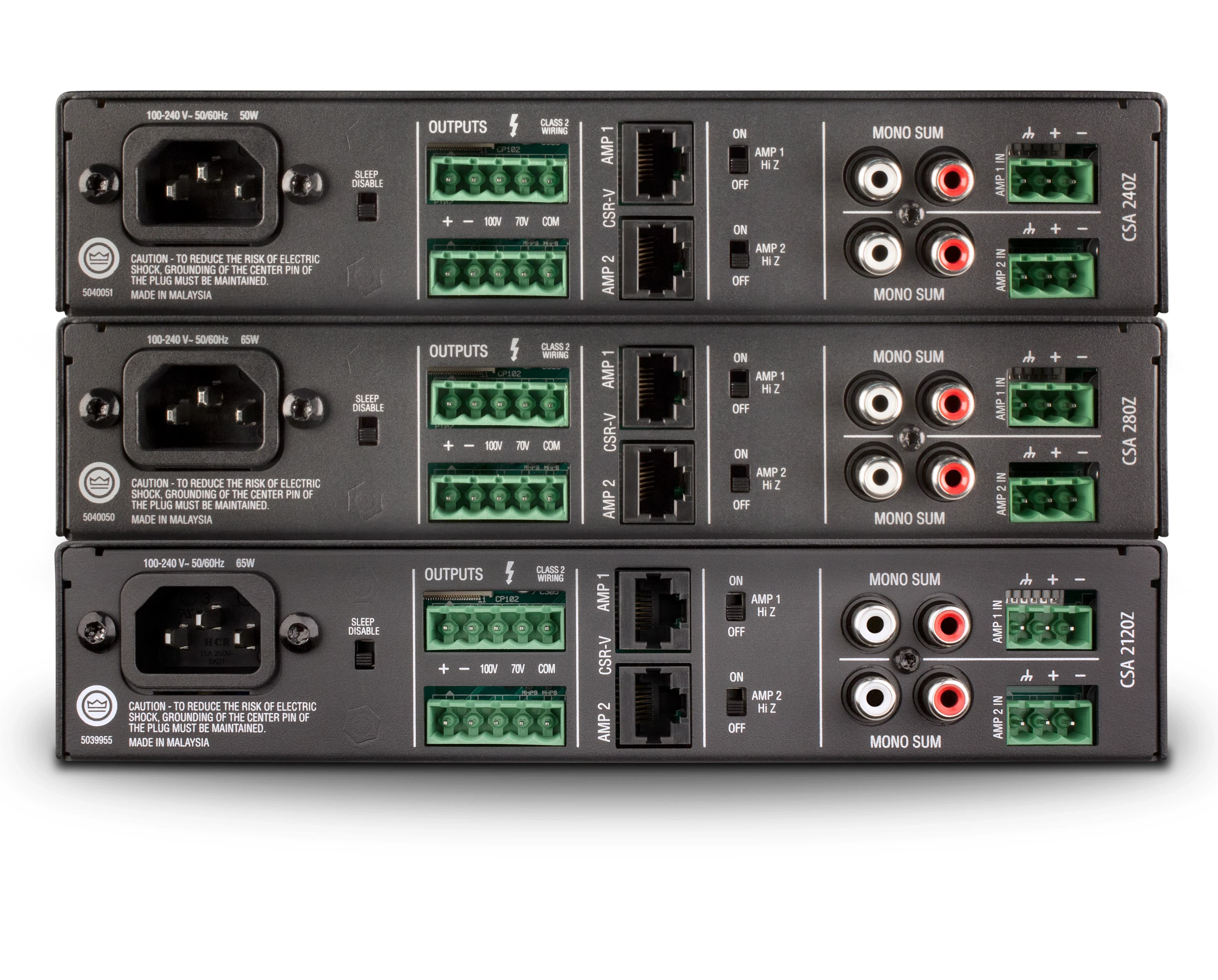

- RJ45 connectors for JBL CSR-V remote volume controls
- Universal power supply (100–240 VAC, 50/60 Hz)
- Fanless, 1U rack-mount design
Get Started
Ready to Add the JBL CSA2120Z to Your Project?
Talk to Savi Vision's team for pricing, availability and deployment guidance on this product.
