Overview

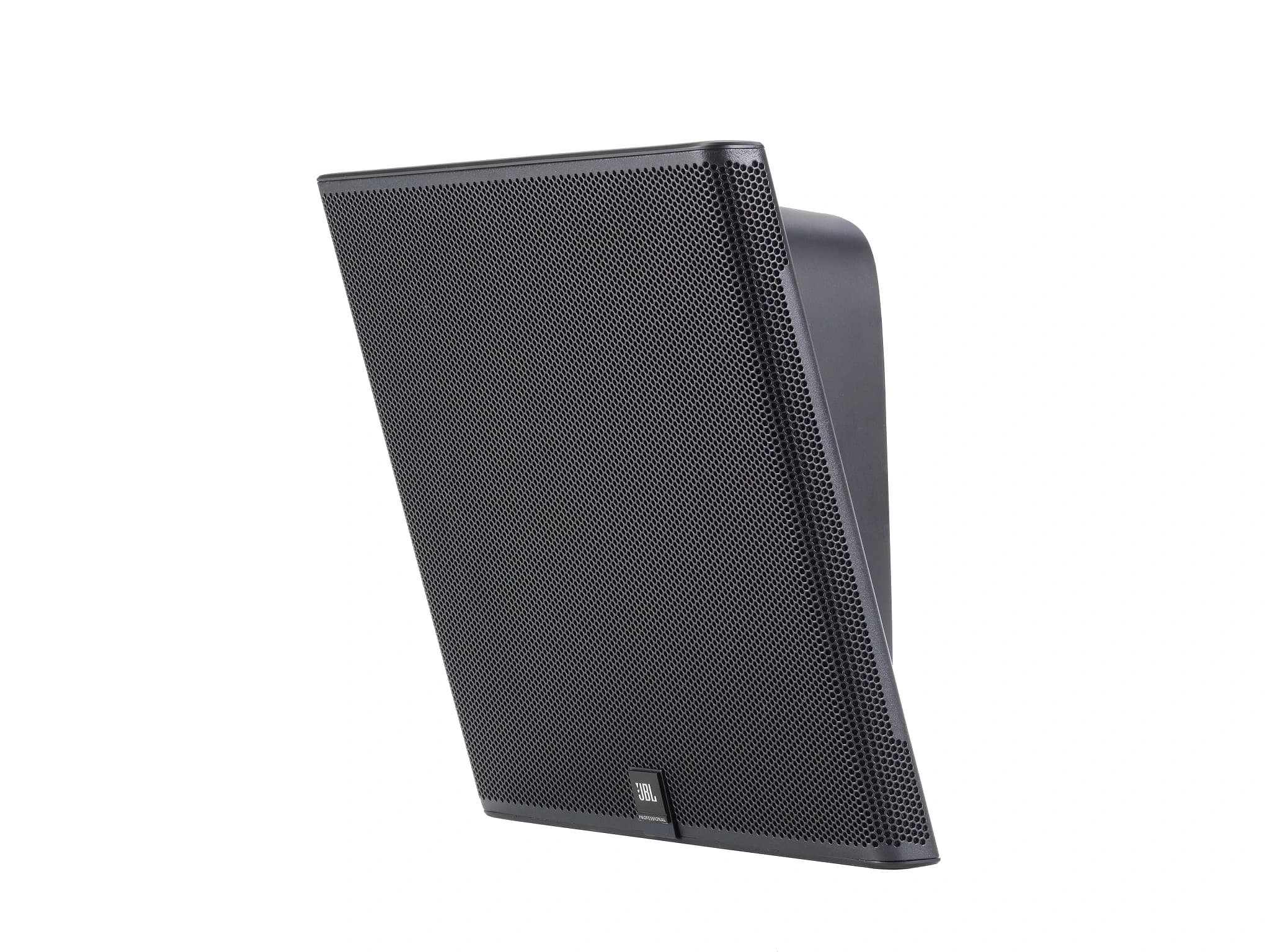

JBL SLP14/T

The JBL SLP14/T is an on-wall commercial loudspeaker with a 70V/100V transformer and a wide 140°×120° coverage pattern. JBL's own spec sheet lists two slightly different driver-size figures for this model (100mm/4" in the features text vs. 120mm/4.5" in the spec table) — both are noted below rather than arbitrarily resolved.

Specifications

Technical Overview

Driver: 100mm (4") woofer + 1" silk dome tweeter, per features text; spec table lists 120mm (4.5") woofer + 20mm titanium dome — both reported
Power: 100W cont. program / 50W cont. pink noise (200W peak)
Sensitivity: 85 dB (half-space, wall-mounted)
Max SPL: 108 dB peak @1m
Coverage: 140°H × 120°V
Impedance: 8Ω nominal
Taps: 70V: 25/12.5/6.3/3.2W, 100V: 25/12.5/6.3W
Frequency Range: 70Hz–20kHz (-10dB) / 80Hz–18kHz (±3dB)
Dimensions: 286 × 263 × 100mm
Weight: 2.8kg
Finish: Black (SLP14/T-BK)
