Marantz CINEMA 60 7.2-Channel AV Receiver

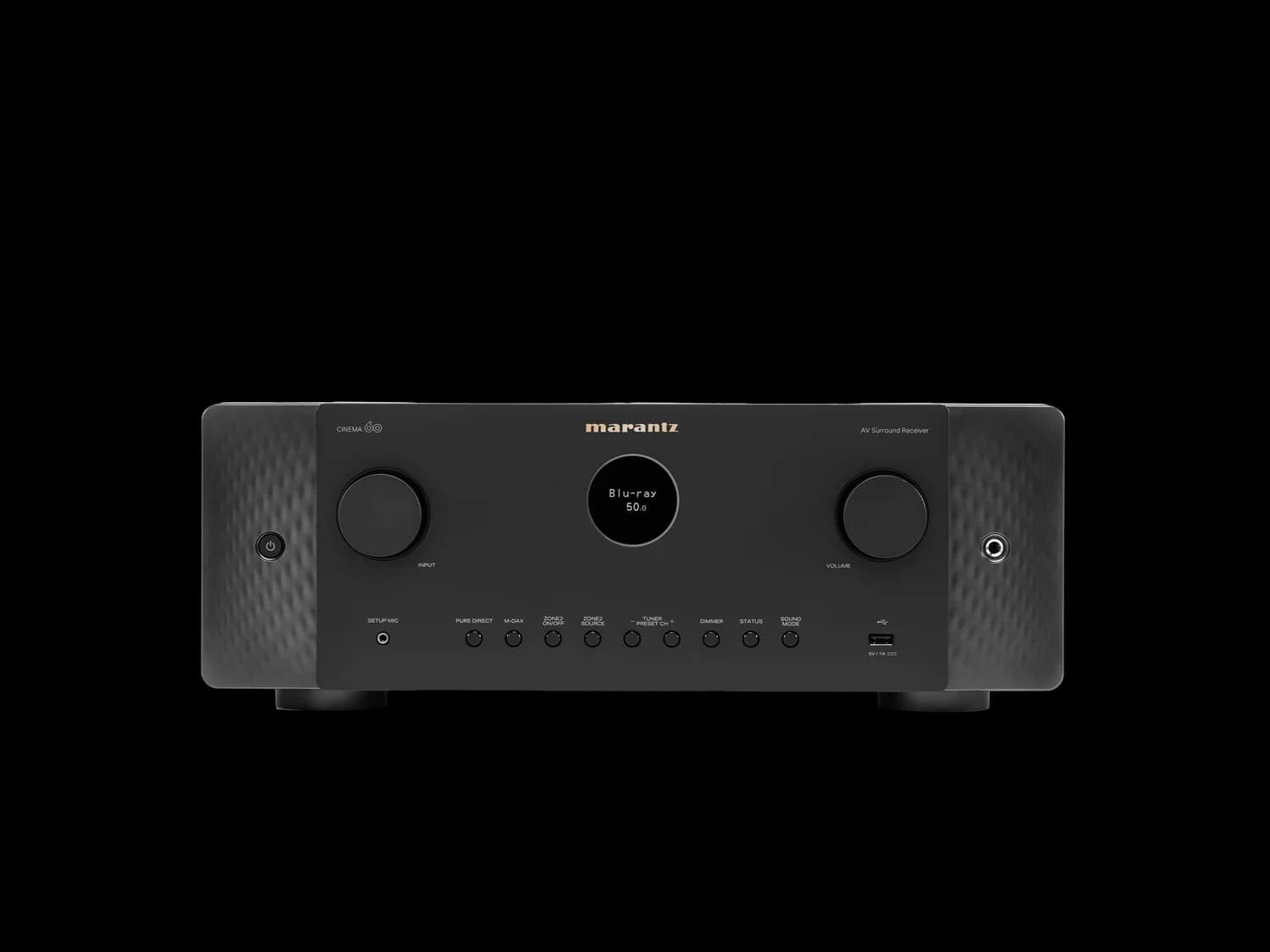

The Marantz CINEMA 60 is a 7.2-channel AV receiver built around Marantz's Sound Master tuning and proprietary Hyper Dynamic Amplifier Modules (HDAM), delivering 100W per channel for immersive Dolby Atmos and DTS:X home theater sound. The iconic porthole display and symmetrical front panel carry Marantz's signature artisan design.

Six HDMI inputs (three supporting 8K) and two HDMI outputs handle 8K/60Hz and 4K/120Hz video passthrough with full HDR support (Dolby Vision, HDR10+, HLG), while built-in HEOS multi-room streaming, AirPlay 2 and Bluetooth cover music playback across Spotify Connect, TIDAL, Amazon Music and other major services. Audyssey MultEQ XT room correction, with Dynamic EQ and Dynamic Volume, automatically calibrates the system to the room.

Specifications

Technical Overview

Model Number: CINEMA 60
Channels: 7.2 (7 powered, 7.2 preamp out)
Power Output (8Ω, 20Hz–20kHz, 0.08% THD, 2-ch driven): 100 W per channel
Power Output (6Ω, 1kHz, 0.7%, 2-ch driven): 140 W per channel
Amplifier Topology: Class A/B, discrete, current feedback, HDAM
Surround Formats: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Surround, DTS-HD Master Audio, DTS:X, DTS Neural:X, DTS Virtual:X
HDMI Inputs: 6 (3 support 8K)
HDMI Outputs: 2 (Main, Zone 2)
Max Video Resolution: 8K/60Hz, 4K/120Hz passthrough; upscaling to 8K
HDMI Features: HDCP 2.3, ARC/eARC, ALLM, Variable Refresh Rate, Quick Frame Transport, CEC, Auto LipSync
HDR Support: HDR10, HDR10+, Dolby Vision, HLG, Dynamic HDR
Room Correction: Audyssey MultEQ XT with Dynamic EQ and Dynamic Volume
Analog Audio Inputs: 4, plus Phono (MM)
Digital Audio Inputs: 2 optical, 2 coaxial
Speaker Terminals: 7 (A/B assignable)
Subwoofer Outputs: 2
Streaming: HEOS built-in multi-room, AirPlay 2, Bluetooth, Spotify Connect, TIDAL, Amazon Music, Deezer, Qobuz
Music File Support: FLAC, WAV, ALAC up to 192kHz/24-bit; DSD 2.8MHz/5.6MHz; MP3, WMA, AAC
Networking: Ethernet, Wi-Fi, USB-A (front panel)
Control: IP, RS232, IR, Marantz AVR Remote app, HEOS app, Alexa, Google Assistant, Siri
Front Display: OLED
Power Consumption: 650 W (operation); 45–75 W (no sound); 0.2 W (standby)
Dimensions (W x D x H): 17.4 x 13.9 x 6.5 in (442 x 353 x 165 mm)
Weight: 24 lbs (10.9 kg)
Box Contents: CINEMA 60 receiver, RC049SR remote with batteries, AM/FM antennas, 2 detachable Wi-Fi/Bluetooth antennas, Audyssey calibration microphone and stand, wire labels, quick start guide, AC power cord

Key Features

What It Delivers

7.2 channels at 100W per channel (8 ohm, 20Hz–20kHz, 0.08% THD)
Dolby Atmos, Dolby Atmos Height Virtualization, Dolby TrueHD and DTS:X support
6 HDMI inputs (3 at 8K) and 2 HDMI outputs, 8K/60Hz and 4K/120Hz passthrough
HDCP 2.3, ARC/eARC, HDR10+, Dolby Vision and HLG support
Built-in HEOS multi-room streaming, AirPlay 2 and Bluetooth
Audyssey MultEQ XT room correction with Dynamic EQ and Dynamic Volume
Hyper Dynamic Amplifier Modules (HDAM) with Class A/B current-feedback topology
Front-panel USB-A input and AM/FM tuner
