Overview

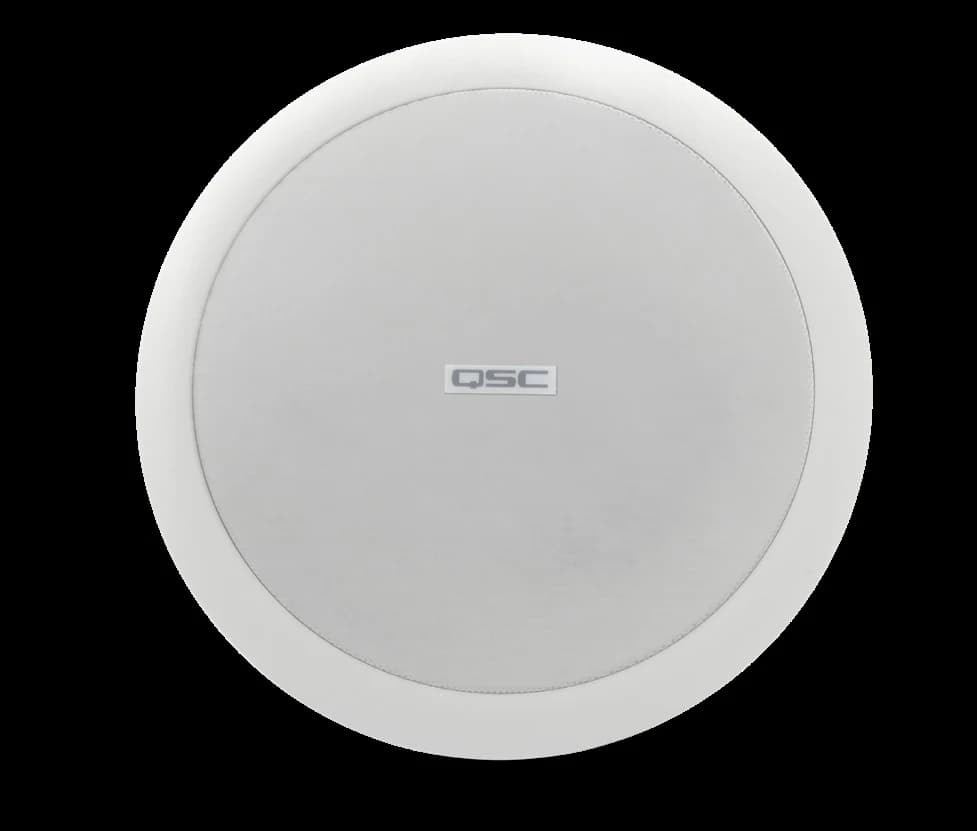

QSC AcousticCoverage AC-C2T-LP
The AcousticCoverage AC-C2T-LP is a low-profile, ceiling-mounted 2.75-inch full-range loudspeaker built for wide-area paging, background music and AV conferencing reinforcement.
A shallow backcan suits ceilings with limited plenum depth, while a wide 170° conical coverage pattern reduces the number of speaker points needed for even coverage in low-ceiling rooms.
Specifications
Technical Overview
- Transducer
- 2.75 in (70 mm) weather-treated paper cone
- Effective Frequency Range
- 75 Hz – 20 kHz
- Broad-Band Sensitivity
- 84 dB
- Rated Noise Power / Voltage
- 16 W / 11.3 V RMS
- Coverage
- 170° conical
- Maximum SPL (continuous / peak)
- 96 / 102 dB
- Rated Impedance
- 8 Ω
- Transformer Taps (70V)
- 1, 2, 4, 8, 16 W, 8Ω bypass
- Transformer Taps (100V)
- 2, 4, 8, 16 W, 8Ω bypass
- Net Weight
- 4.2 lb (1.9 kg)
- Product Dimensions
- 10.35 × 3.82 in (263 × 97 mm)
- Cut-out Dimension
- 9 in (229 mm)
- Safety
- Listed UL1480, UL2043
Key Features
What It Delivers
- Low-profile enclosure for shallow plenum spaces
- 170° conical coverage pattern
- Ported baffle extends bass response down to 75 Hz
- Low-saturation 16W 70/100V transformer with 8Ω bypass
- 4-pole Euroblock connector for loop-through wiring
Get Started
Ready to Add the QSC AcousticCoverage AC-C2T-LP to Your Project?
Talk to Savi Vision's team for pricing, availability and deployment guidance on this product.
