Overview

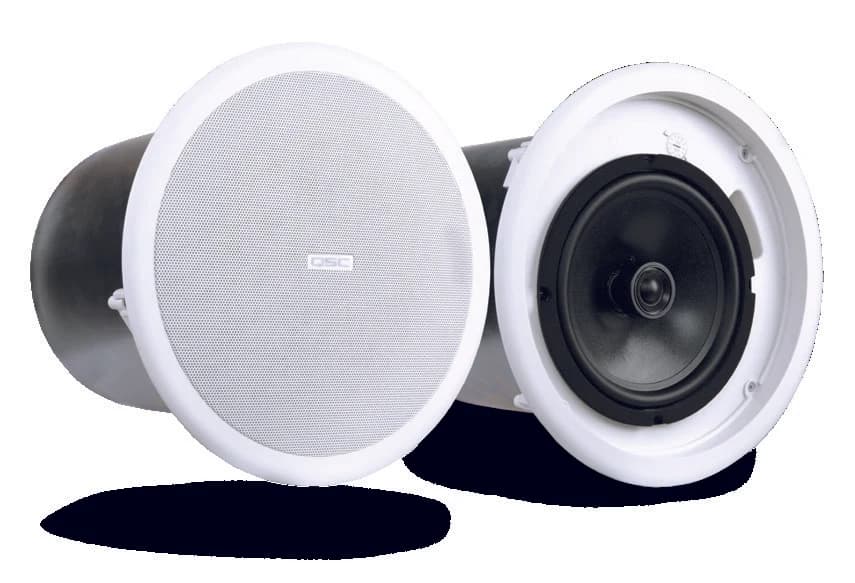

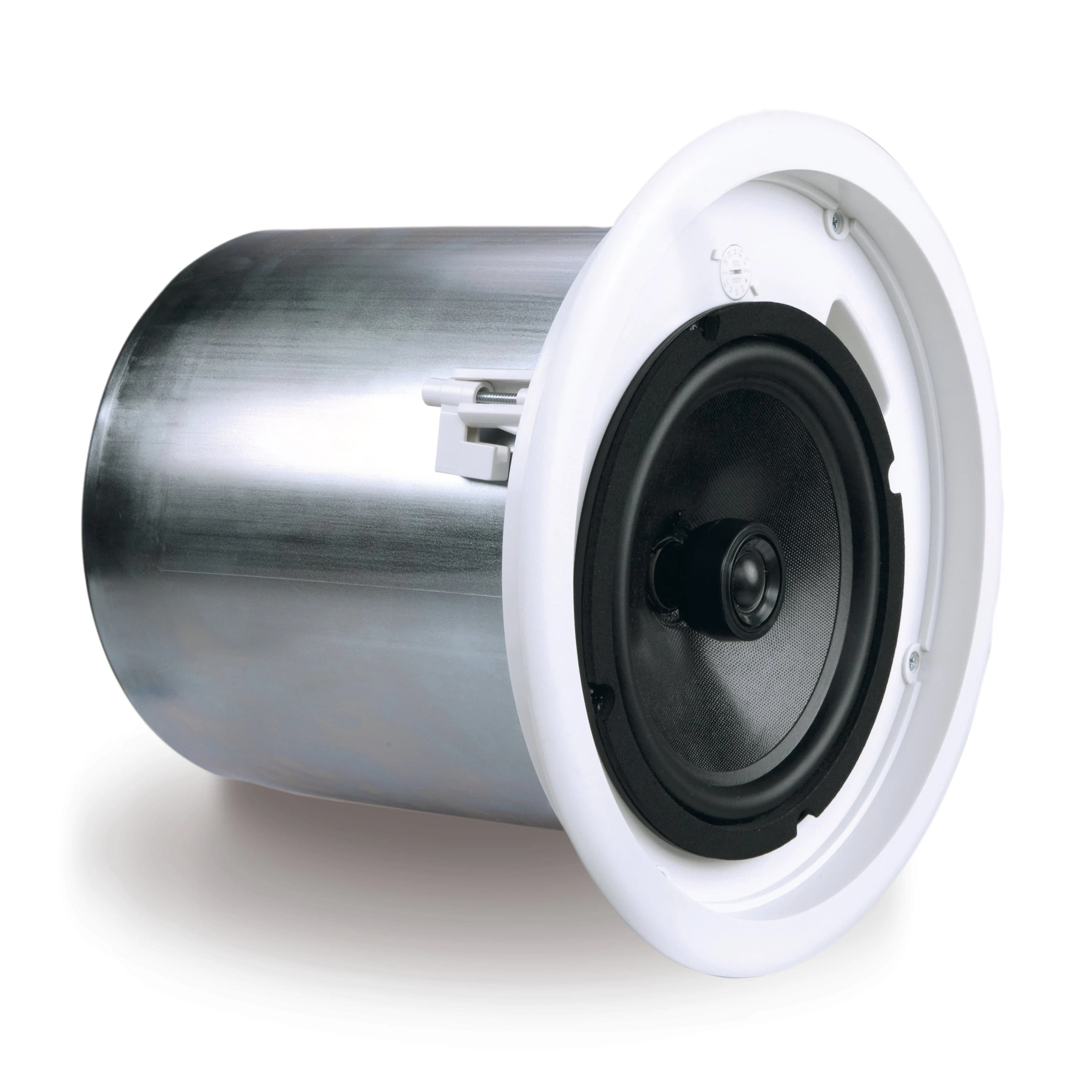

QSC AcousticCoverage AC-C8T
The AcousticCoverage AC-C8T is a ceiling-mounted 8-inch two-way loudspeaker built for AV/video conferencing reinforcement, voice paging and background music where more low-frequency extension is needed.
A ported baffle tunes the backcan for low-frequency extension down to 52 Hz, while a coaxially mounted silk dome tweeter keeps the critical vocal range clear for speech intelligibility.
Specifications
Technical Overview
- LF Transducer
- 210 mm (8 in) polypropylene cone
- HF Transducer
- 22 mm (0.86 in) silk dome tweeter, coaxial
- Effective Frequency Range
- 52 Hz – 20 kHz
- Rated Noise Power / Voltage
- 80 W / 25.3 V (RMS)
- Broad-Band Sensitivity
- 89 dB
- Coverage
- 100° (500 Hz – 5 kHz)
- Maximum SPL (continuous / peak)
- 108 / 114 dB
- Transformer Taps (70V)
- 3.8, 7.5, 15, 30, 60 W, 8Ω bypass
- Transformer Taps (100V)
- 7.5, 15, 30, 60 W, 8Ω bypass
- Net Weight
- 5.2 kg (11.5 lb)
- Product Dimensions
- Ø 316 × 288 mm (Ø 12.4 × 11.3 in)
- Safety
- Listed UL1480, UL2043
Key Features
What It Delivers
- 8-inch polypropylene cone woofer with coaxial silk dome tweeter
- Ported baffle extends bass response down to 52 Hz
- 100° conical coverage pattern
- Low-saturation 60W 70/100V transformer with 8Ω bypass

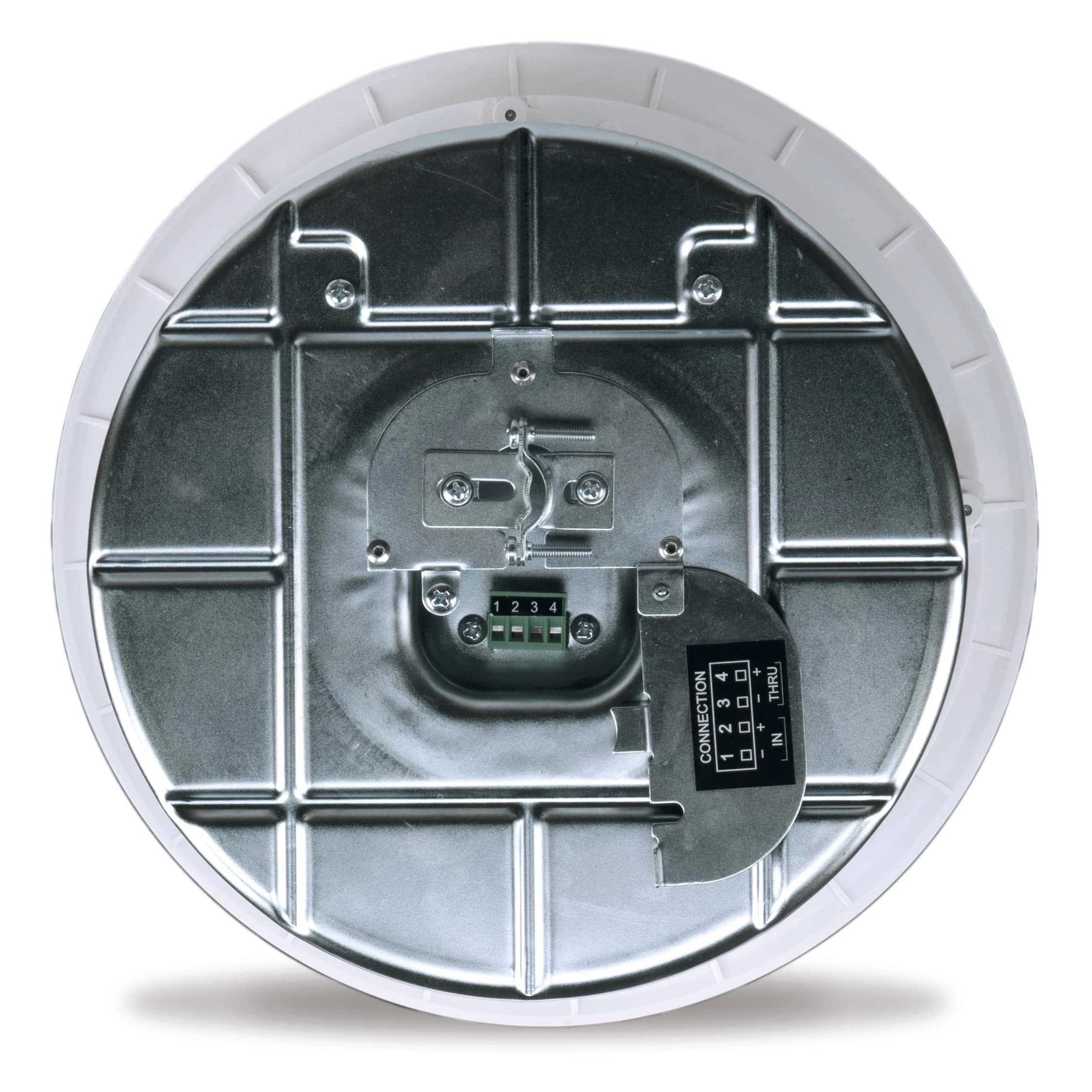

- 4-pole Euroblock connector, safety tether tab
