Overview

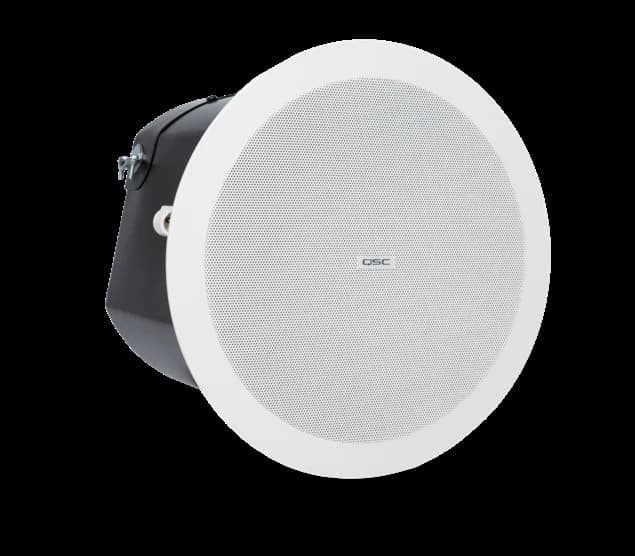

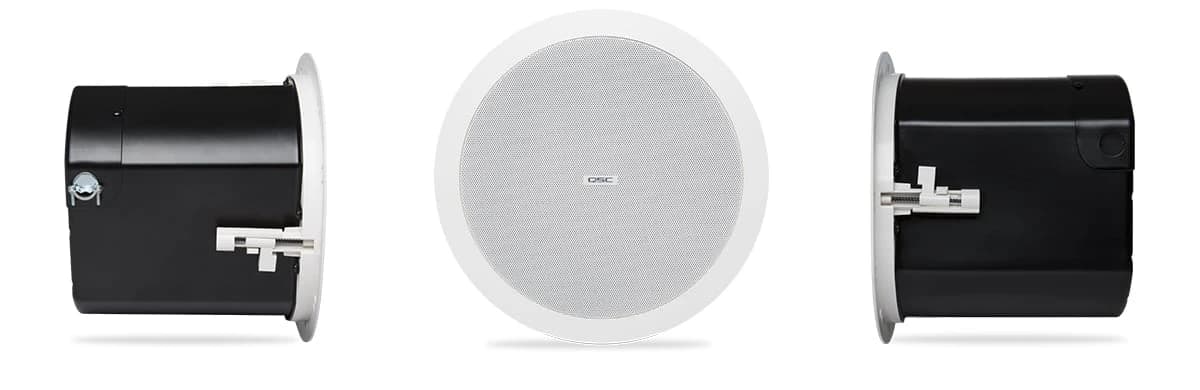

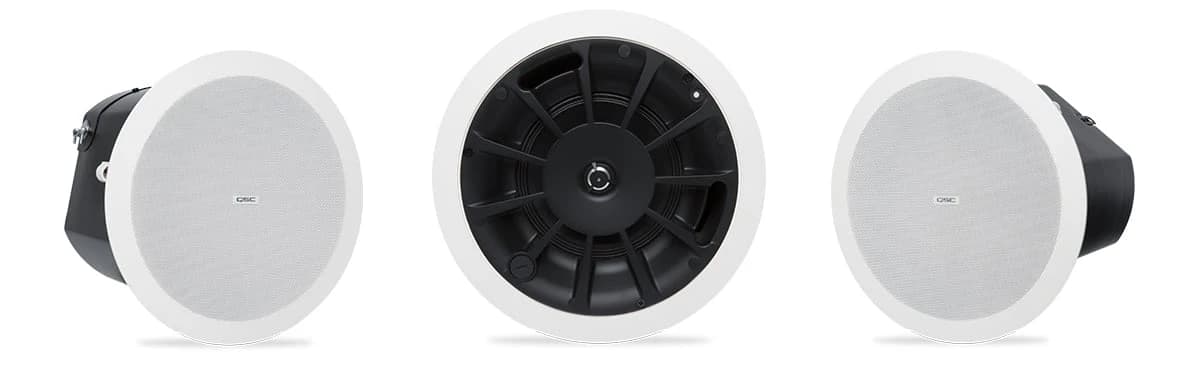

QSC AcousticDesign AD-C6T
The AcousticDesign AD-C6T is a 6.5-inch two-way ceiling loudspeaker built for foreground and background sound reinforcement in 70/100V or 16Ω bypass configurations.
QSC's DMT (Directivity Matched Transition) waveguide aligns the tweeter's dispersion with the woofer's natural coverage at the crossover point, delivering a coherent, consistent 135° conical coverage pattern across the room.
Specifications
Technical Overview
- LF Transducer
- 165 mm (6.5 in) weather-treated paper cone woofer
- HF Transducer
- 19 mm (0.75 in) aluminum dome tweeter
- Effective Frequency Range
- 65 Hz – 20 kHz
- Rated Noise Power / Voltage
- 60 W / 31 V (RMS)
- Sensitivity (1W, 1m)
- 88 dB
- Coverage
- 135° conical (DMT)
- Directivity Factor / Index
- 6.5 / 8 dB
- Maximum SPL (continuous / peak)
- 106 / 112 dB
- Transformer Taps
- Bypass 16Ω; 7.5/15/30/60W (70V); 15/30/60W (100V)
- Ingress Protection
- IP-34
- Cutout Dimension
- Ø 245 mm (9.65 in)
- Net Weight
- 4.3 kg (9.5 lb)
- Product Dimensions (Ø × H)
- Ø 280 × 237 mm (11.02 × 9.32 in)
- Safety
- UL1480, UL2043, NFPA90, NFPA70, CE compliant
Key Features
What It Delivers
- DMT (Directivity Matched Transition) waveguide
- 135° conical coverage pattern
- Low-saturation 60W 70/100V transformer with 16Ω bypass
- Snap-fit magnetic grille with removable logo
- 3x double-stepped, long-travel dog-ear blind mount system
- UL1480, UL2043 certified for plenum installation
Get Started
Ready to Add the QSC AcousticDesign AD-C6T to Your Project?
Talk to Savi Vision's team for pricing, availability and deployment guidance on this product.
