Overview

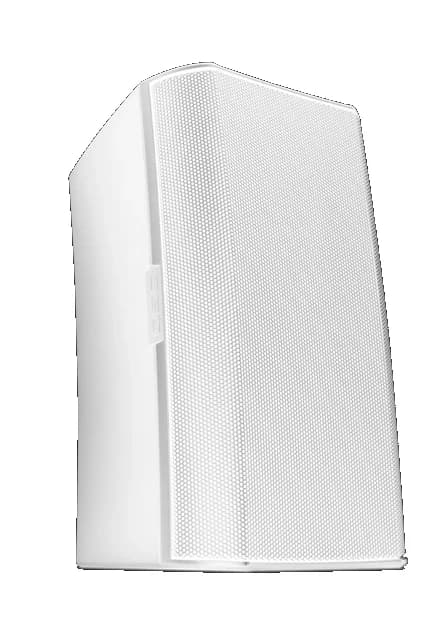

QSC AcousticDesign AD-S6T
The AcousticDesign AD-S6T is a surface-mounted 6.5-inch two-way loudspeaker for foreground and background sound reinforcement where an in-ceiling speaker isn't practical.

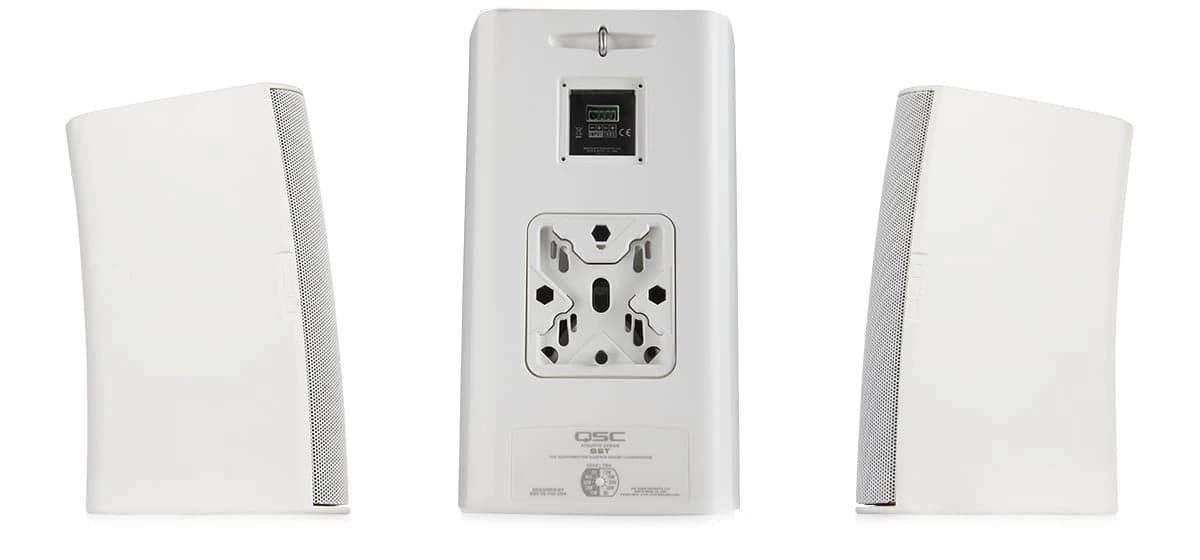

QSC's award-winning X-Mount system lets installers preconfigure the bracket on the ground and lock the speaker in place in seconds, at any angle, without it drifting over time — and a sealed, IP-54-rated enclosure suits both indoor and covered outdoor installations.
Specifications
Technical Overview
- HF Transducer
- 1 in silk dome tweeter, horn-loaded
- LF Transducer
- 6.5 in weather-treated paper cone woofer
- Effective Frequency Range
- 60 Hz – 20 kHz
- Rated Noise Power / Voltage
- 150 W / 35 V (RMS)
- Broad-Band Sensitivity
- 89 dB SPL
- Coverage
- 105° conical
- Maximum SPL (continuous / peak)
- 110 / 116 dB
- Rated Impedance
- 8 Ω
- Transformer Taps (70V)
- 7.5, 15, 30, 60 W, 8Ω bypass
- Transformer Taps (100V)
- 15, 30, 60 W, 8Ω bypass
- Ingress Protection
- IP-54
- Net Weight
- 13.6 lb (6.2 kg)
- Product Dimensions
- 14.4 × 8.5 × 8.5 in (365 × 215 × 215 mm)
- Included Accessory
- X-Mount mounting system
Key Features
What It Delivers
- X-Mount system for fast, tool-free angle adjustment
- DMT waveguide for consistent 105° conical coverage
- IP-54 rated for dust and splash resistance
- Low-saturation 60W 70/100V transformer with 8Ω bypass
- Rugged ABS enclosure with powder-coated aluminum grille
