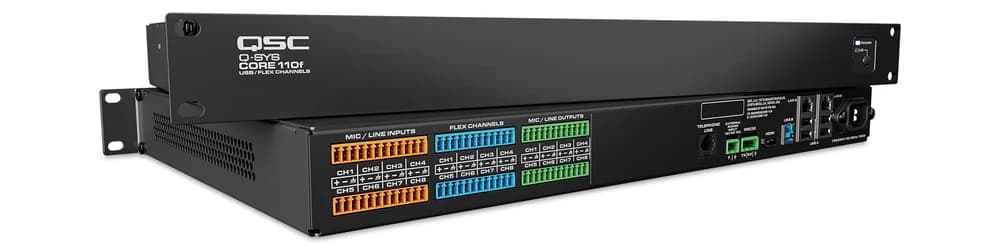

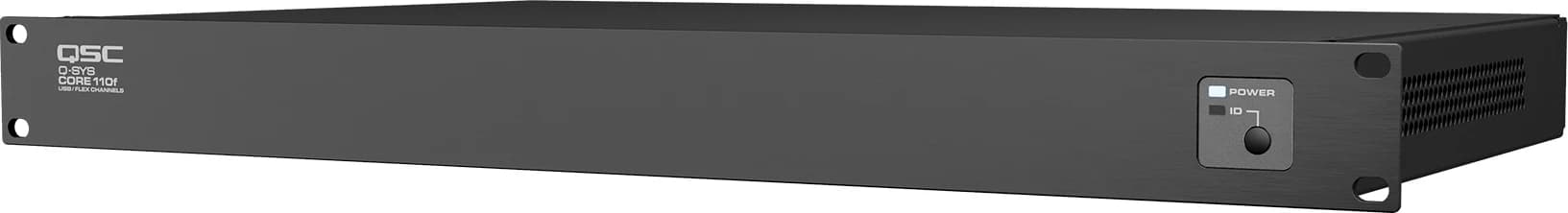

QSC Q-SYS Core 110f
The Q-SYS Core 110f is a 1RU processor that provides a fully integrated audio, video and control solution for installations mixing analog and networked channels, scaling from medium-sized rooms to enterprise deployments.
Built on an Intel processor running QSC's real-time Linux OS, it handles up to 128×128 networked audio channels over Q-LAN or AES67, with built-in Dante support and 24 channels of analog I/O including 8 software-definable Flex channels.
Specifications
Technical Overview
- Network Audio
- 128×128 channels (Q-LAN/AES67)
- Dante
- 8×8 standard, licensable to 32×32
- Analog I/O
- 24 channels total (incl. 8 Flex channels)
- USB Audio
- Up to 16×16 channels, 48kHz/16-bit
- AEC Processors
- 16×
- Sampling Rate / Bit Depth
- 48 kHz, 24-bit A/D-D/A
- System Latency
- 3.167 ms
- Rack Size
- 1RU (483 × 282.5 × 44 mm)
- Weight
- 5 kg
- Power Consumption
- 60 W typical, 120 W max
Key Features
What It Delivers
- 128×128 networked audio channels (Q-LAN/AES67)
- 8×8 Dante channels standard, licensable to 32×32
- 24 total analog I/O channels, including 8 Flex channels
- 16× echo cancellation (AEC) processors
- Up to 4 VoIP instances, supports Q-SYS NM-T1 network microphones
- 3.167ms system latency, analog input to synchronized output
