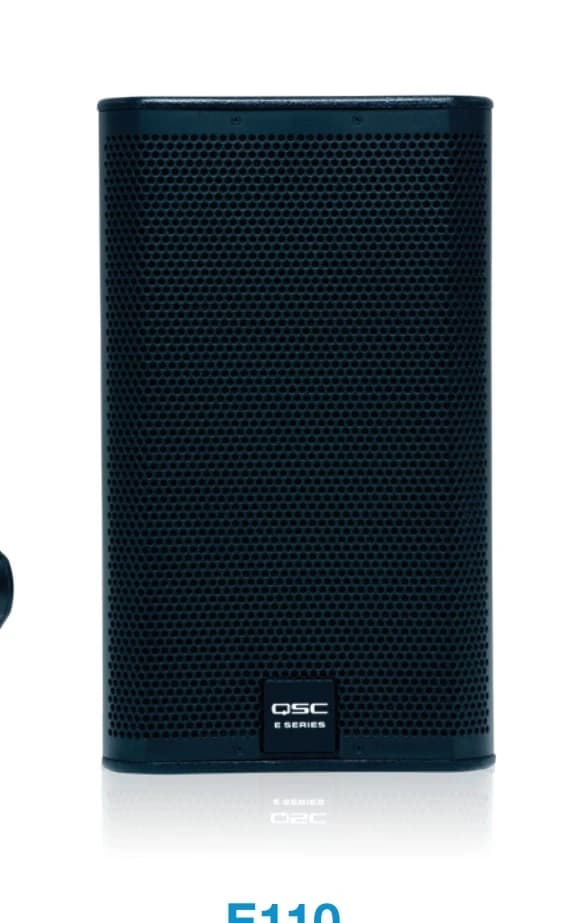

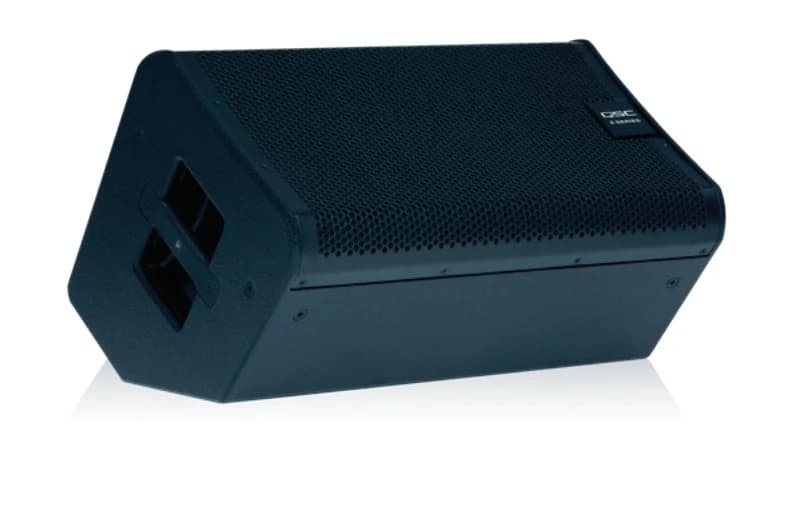

QSC E110

The QSC E110 is a 10-inch, 2-way, non-powered loudspeaker built around a DMT (Directivity Matched Transition) waveguide for 85° conical coverage, suited to both live sound reinforcement and fixed installation.

A 10-inch die-cast-frame woofer pairs with a 1-inch exit compression driver, housed in a multi-angle plywood cabinet with a dual-angle 35mm pole socket allowing vertical or 10° down-angle monitor use, plus six M8 suspension points for flown applications.

Specifications

Technical Overview

Configuration: 1x 10 in, 2-way, non-powered
LF Driver: 254 mm (10 in) die-cast-frame woofer, 64 mm (2.5 in) voice coil
HF Driver: 25 mm (1 in) exit compression driver, 45 mm (1.75 in) voice coil
Frequency Range (-10dB): 50 Hz – 20 kHz
Sensitivity: 95 dB, 1W @ 1m
Maximum Output: 126 dB peak SPL @ 1m (with QSC processing)
Power Capacity: 300 W continuous / 1200 W peak
Coverage Angle: 85° conical DMT
Nominal Impedance: 8 Ω
Crossover: Full-range only, 1.8 kHz
Input Connectors: 2x NL4 (Speakon), 1x barrier strip
Enclosure: Multi-angle plywood, black texture paint finish, perforated powder-coated steel grille

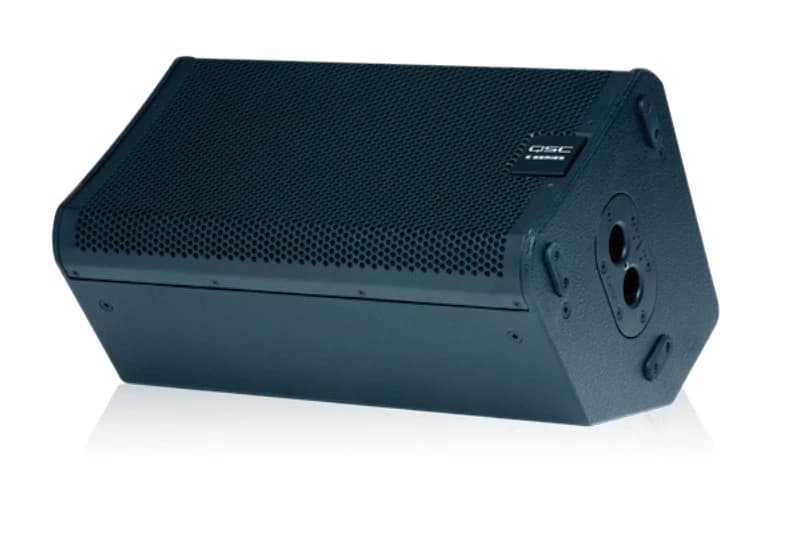

Mounting: Dual-angle 35mm pole socket; 6x M8 suspension points
Dimensions (W x H x D): 330 x 560 x 330 mm (13 x 22 x 13 in)
Net Weight: 20 kg (44 lb)
