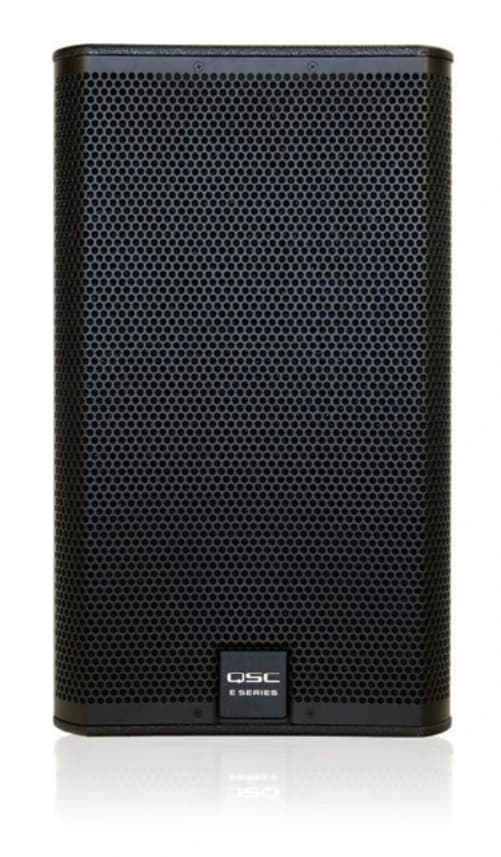

QSC E112

The QSC E112 is a 12-inch, 2-way, passive loudspeaker in a trapezoidal enclosure, built around a DMT (Directivity Matched Transition) waveguide for 85° conical coverage, suited to live sound reinforcement and fixed installation.

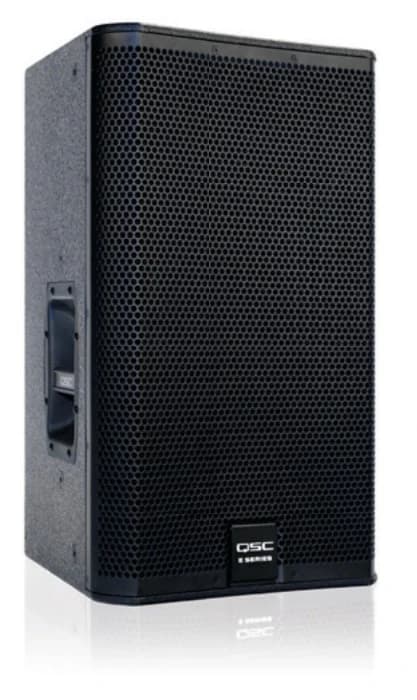

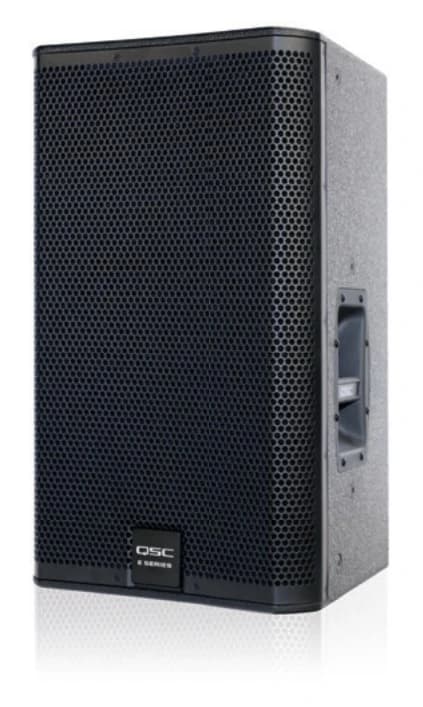

A 12-inch die-cast aluminum woofer pairs with a 1-inch exit compression driver, housed in an 11-ply, 15mm plywood trapezoidal cabinet with two side-mounted handles, a dual-angle 35mm pole socket, and optional U-style yoke or M10 eyebolt rigging.

Specifications

Technical Overview

Configuration: 1x 12 in, 2-way, passive, trapezoidal enclosure
LF Driver: 305 mm (12 in) die-cast aluminum woofer, 76 mm (3 in) voice coil
HF Driver: 25 mm (1 in) exit compression driver, 45 mm (1.75 in) voice coil
Frequency Response (-6dB): 64 Hz – 20 kHz
Frequency Range (-10dB): 46 Hz – 20 kHz
Sensitivity: 96 dB, 1W @ 1m
Maximum Output: 128 dB peak SPL @ 1m (with QSC processing)
Power Capacity: 400 W continuous / 1600 W peak
Coverage Angle: 85° conical DMT
Nominal Impedance: 8 Ω
Crossover: Full-range only, 1.8 kHz
Input Connectors: 2x NL4 (Speakon), 1x barrier strip
Enclosure: 11-ply, 15mm plywood, black texture paint finish, perforated powder-coated steel grille
Mounting: Dual-angle 35mm pole socket; optional U-style yoke, M10 eyebolt kit
Dimensions (W x H x D): 360 x 616 x 371 mm (14.2 x 24.2 x 14.6 in)
Net Weight: 23 kg (51 lb)
