QSC E215

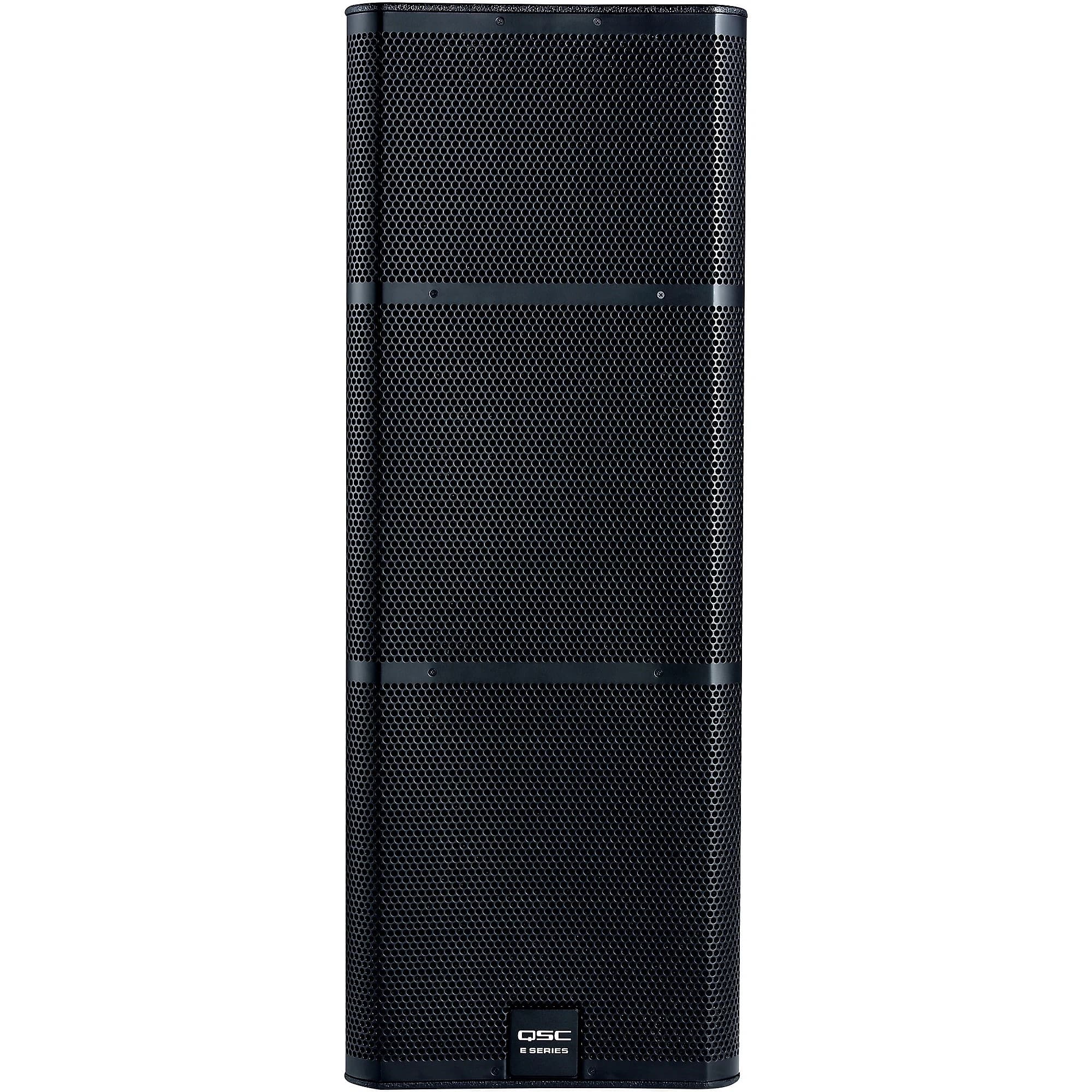

The QSC E215 is a dual 15-inch, 2-way, non-powered loudspeaker built around a DMT (Directivity Matched Transition) waveguide for 75° axisymmetric coverage, delivering high output for touring and large-venue live sound reinforcement.

Two 15-inch die-cast aluminum woofers pair with a 1.5-inch exit titanium-diaphragm compression driver, housed in an 11-ply plywood trapezoidal enclosure with ergonomic aluminum handles and M10 eyebolt rigging points.

Specifications

Technical Overview

Configuration: 2x 15 in, 2-way, non-powered
LF Drivers: 2x 381 mm (15 in), 89 mm (3.5 in) voice coil, die-cast aluminum frame, 500 W continuous each
HF Driver: 38 mm (1.5 in) exit, 71 mm (2.8 in) voice coil compression driver, titanium diaphragm
Frequency Range (-10dB): 39 Hz – 20 kHz (with QSC processing)
Sensitivity: 98 dB, 1W @ 1m
Maximum Output: 134 dB peak SPL @ 1m (with QSC processing)
Power Capacity: 1000 W continuous / 4000 W peak
Coverage Angle: 75° conical DMT
Nominal Impedance: 4 Ω
Crossover: Full-range only, 1.8 kHz

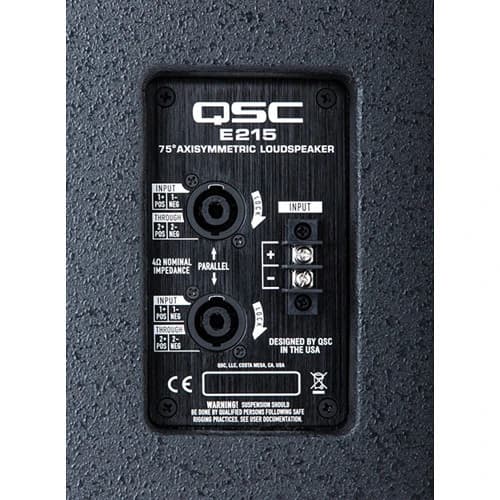

Input Connectors: 2x NL4 (Speakon), 1x barrier strip
Enclosure: 11-ply plywood, black texture paint finish, perforated powder-coated steel grille with foam lining
Mounting: M10 rigging kit, E Series yoke/M8 eyebolts (optional)
Dimensions (W x H x D): 420 x 1125 x 464 mm (16.5 x 44.3 x 18.3 in)
Net Weight: 49.1 kg (108 lb)
