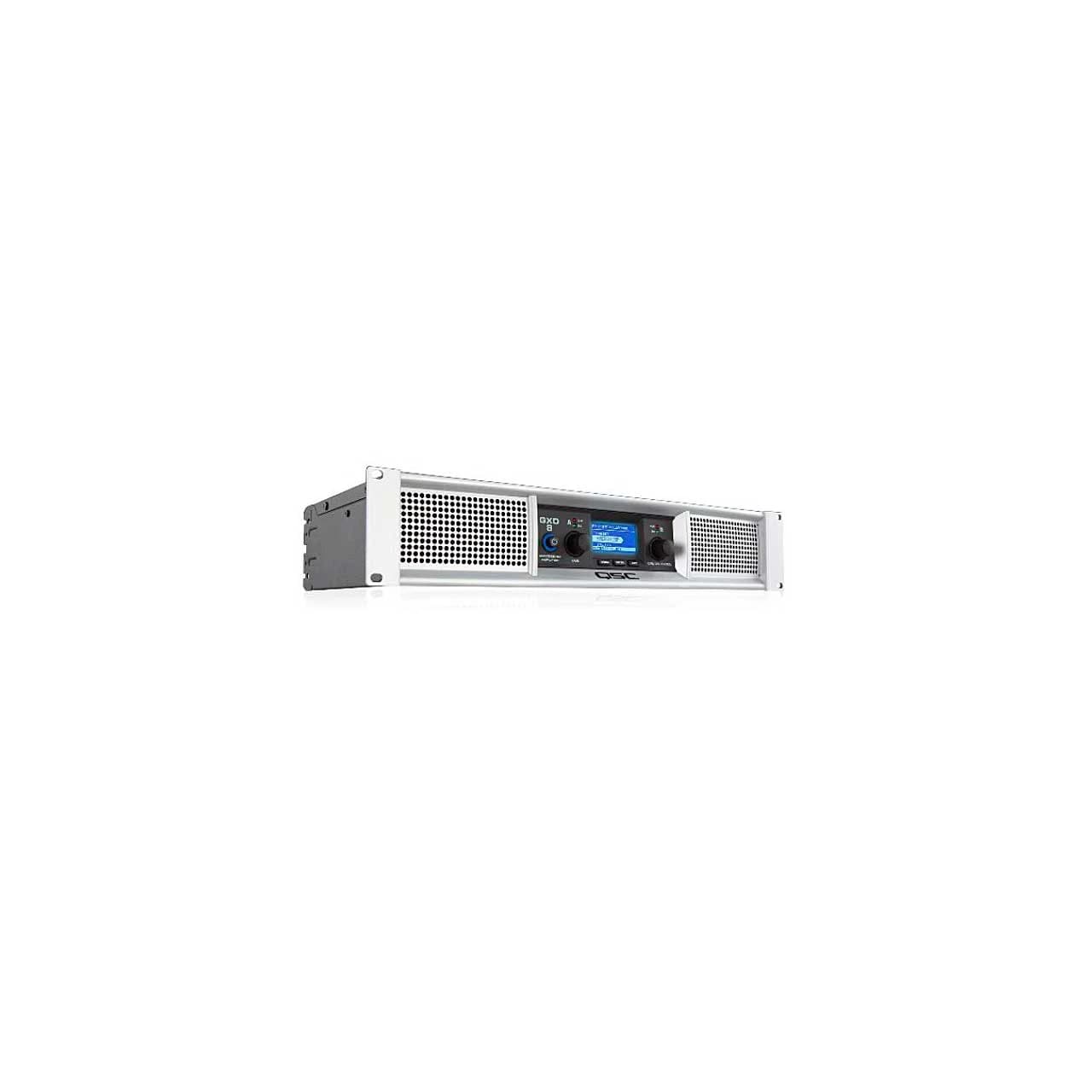

QSC GXD8

The QSC GXD8 is the higher-power model in the GXD series, a 2-channel Class-D processing amplifier delivering 800W per channel at 8Ω (1200W at 4Ω), with the same onboard DSP feature set as the GXD4 for crossover, parametric EQ, signal delay and power limiting.

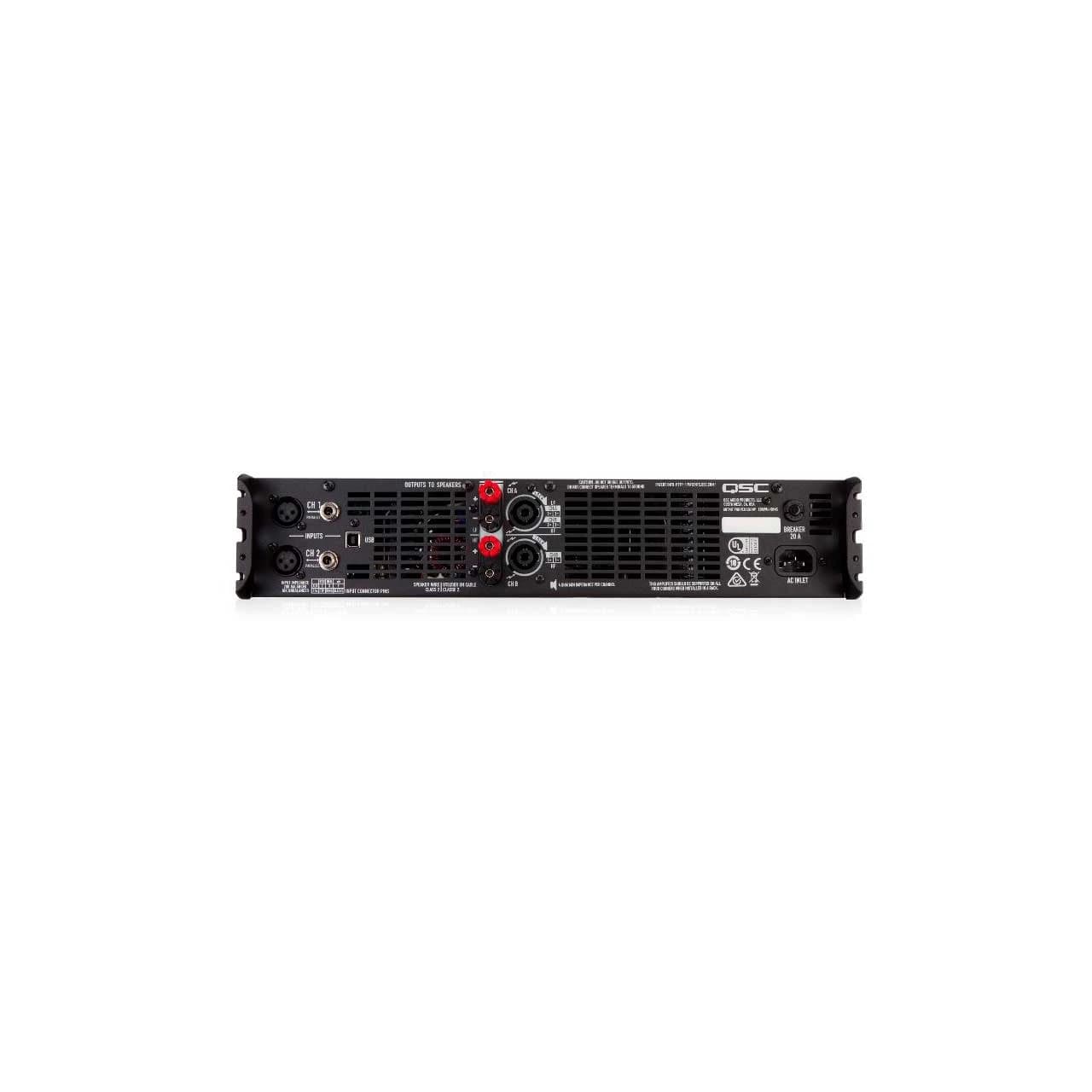

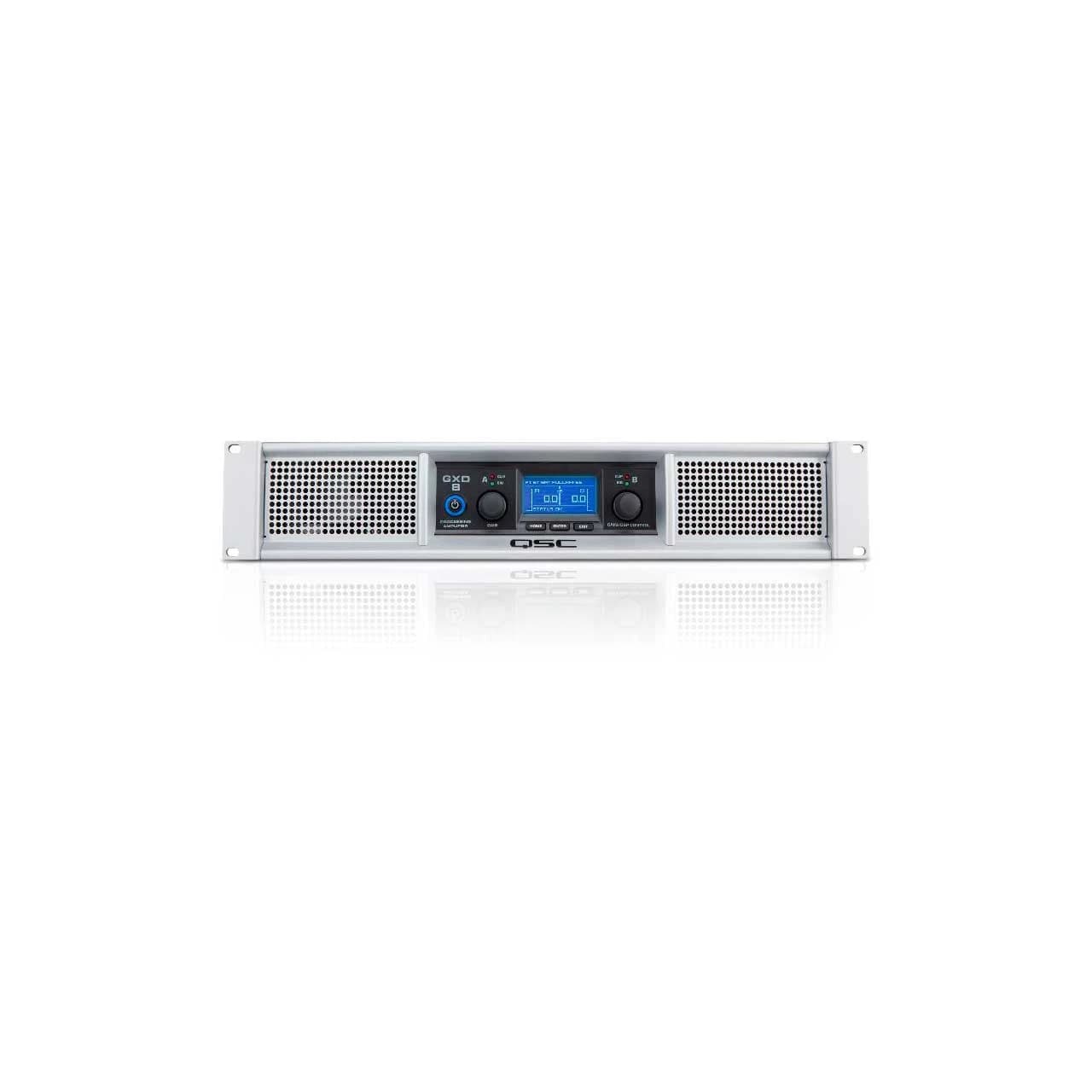

It shares the GXD4's chassis and control layout — front-panel LCD with dual rotary encoders, parallel XLR/TRS inputs and Speakon/binding-post outputs — scaled up for larger loudspeaker loads.

Specifications

Technical Overview

Channels: 2 (Class-D)
Power per Channel (8Ω): 800 W
Power per Channel (4Ω): 1200 W
Maximum Total Peak Power: 4500 W
DSP: Crossover and Parametric EQ Filters, Signal Delay, RMS/Peak Power Limiting
Inputs: Parallel XLR and 1/4 in TRS, Loop-Through Capable
Outputs: NL4 (Speakon) and Binding-Post, Mono/Bi-Amp Capable
Control: LCD Display, Dual Rotary Encoders, Front-Panel Power/Signal/Clip LEDs
Connectivity: USB (Rear Panel)
Chassis: 2U, 19 in Rack-Mount
Power Supply: Universal Switch-Mode
