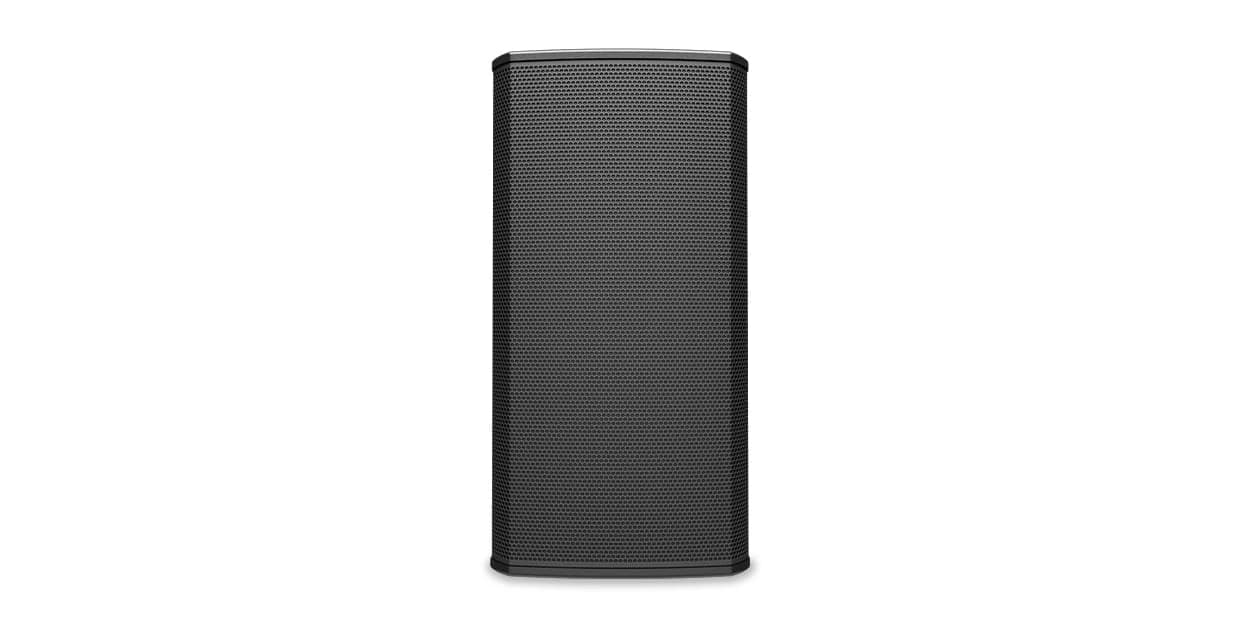

QSC PL-DC12

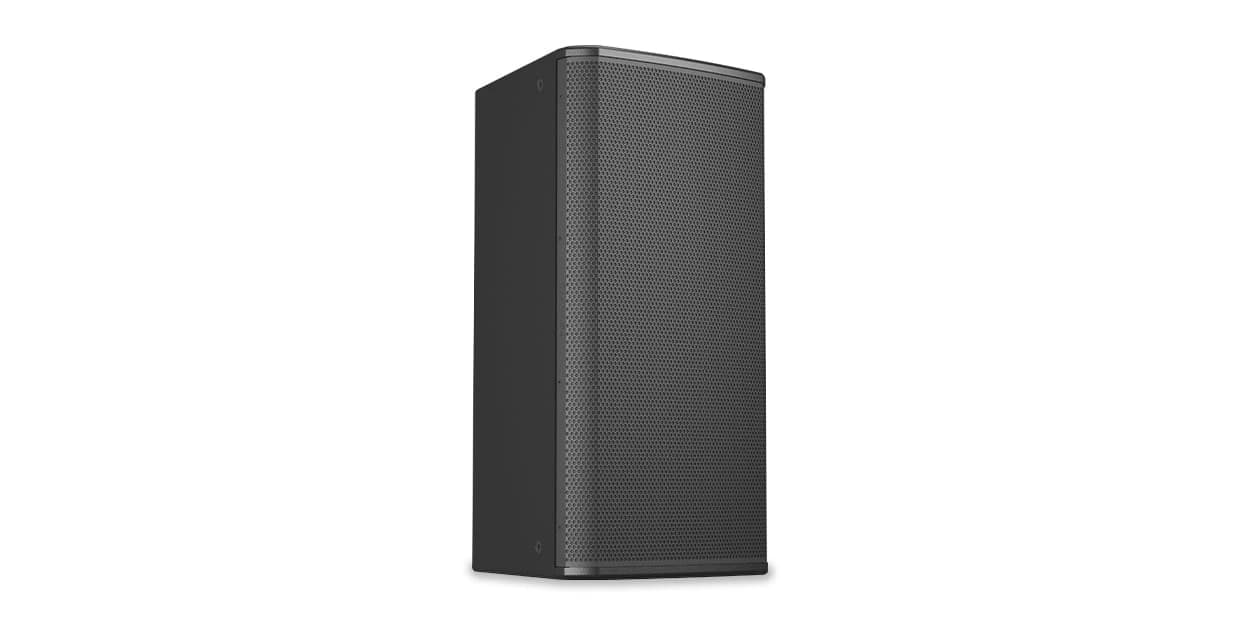

The QSC PL-DC12 is a two-way, passive 12-inch point-source loudspeaker featuring a 12-inch LF transducer and HF compression driver in a bass-reflex, weatherized (IP54) wooden enclosure.

The reconfigurable horn offers symmetrical coverage options of 90°x50°, 70°x50° and 110°x50°, plus asymmetrical options, giving installers precise control of the coverage pattern for each room.

Specifications

Technical Overview

Configuration: 2-way, passive/bi-amp point-source
LF Driver: 12 in (305mm), 3 in (76mm) voice coil
HF Driver: 1.4 in (36mm) throat compression driver
Frequency Response: 45 Hz – 20 kHz (on-axis)
Coverage Options: 90°x50°, 70°x50°, 110°x50° symmetrical; 100°/90°/80° asymmetrical
Sensitivity: ≥101 dB SPL (1W @ 1m)
Maximum SPL: 120 dB continuous / 132 dB peak (passive)
Power Capacity: 450 W continuous
Nominal Impedance: 8 Ω
Connectors: 2x NL4 SpeakON, 1x Euroblock
Enclosure: 15mm Baltic birch plywood, black polyurea (RAL 9011)
