QSC WL3082

The QSC WL3082 is the core module of the WideLine-8 series, a compact high-performance three-way line-array loudspeaker built for demanding concert and installation audio applications in a lightweight, 38lb trapezoidal enclosure.

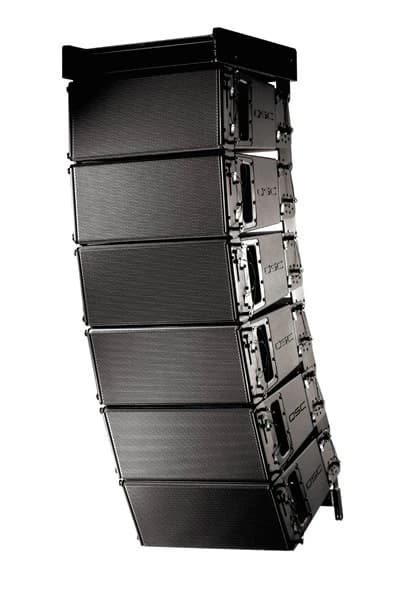

Dual 8-inch cone transducers and a 3-inch neodymium compression driver on a multiple-aperture diffraction waveguide deliver 140° horizontal coverage, with an integral side-plate rigging system supporting flown arrays with 0°–10° adjustable vertical splay in 1° increments.

Specifications

Technical Overview

Type: 3-way line array system
LF Transducers: 2x 8 in cone, 2.5 in voice coils, ported enclosure
HF Transducer: 3.0 in neodymium compression driver on diffraction waveguide
Frequency Response (±3dB): 68 Hz – 18 kHz
Sensitivity (LF / HF): 98.0 dB SPL / 108.0 dB SPL (1m, 2.83V)
Continuous Output (LF+MF / HF): 122 dB SPL / 127 dB SPL
Peak Output (LF+MF / HF): 128 dB SPL / 133 dB SPL
Power Handling (LF+MF / HF): 250 W / 85 W (2hr, IEC noise)
Nominal Impedance: 16 Ω (LF, MF, HF)
Horizontal Coverage (-6dB): 140°
Enclosure: Trapezoidal, 15mm birch plywood, paintable black or white
Grille: Perforated 16AWG steel, black or white cloth backing
Input Connectors: Parallel-wired Neutrik NL8 SpeakON
Rigging: Integral side-plate system, 0°–10° adjustable vertical splay (1° increments)
Dimensions: 9.0 in H x 20.0 in W x 16.0 in D (22.9 x 50.8 x 40.6 cm)
Maximum Weight: 38 lb (17.2 kg)

Compatible Products

Frequently Paired With

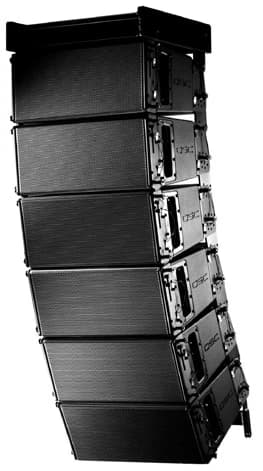

QSC AF3082-S Flying Array Frame
