Overview

Shure BLX188/CVL

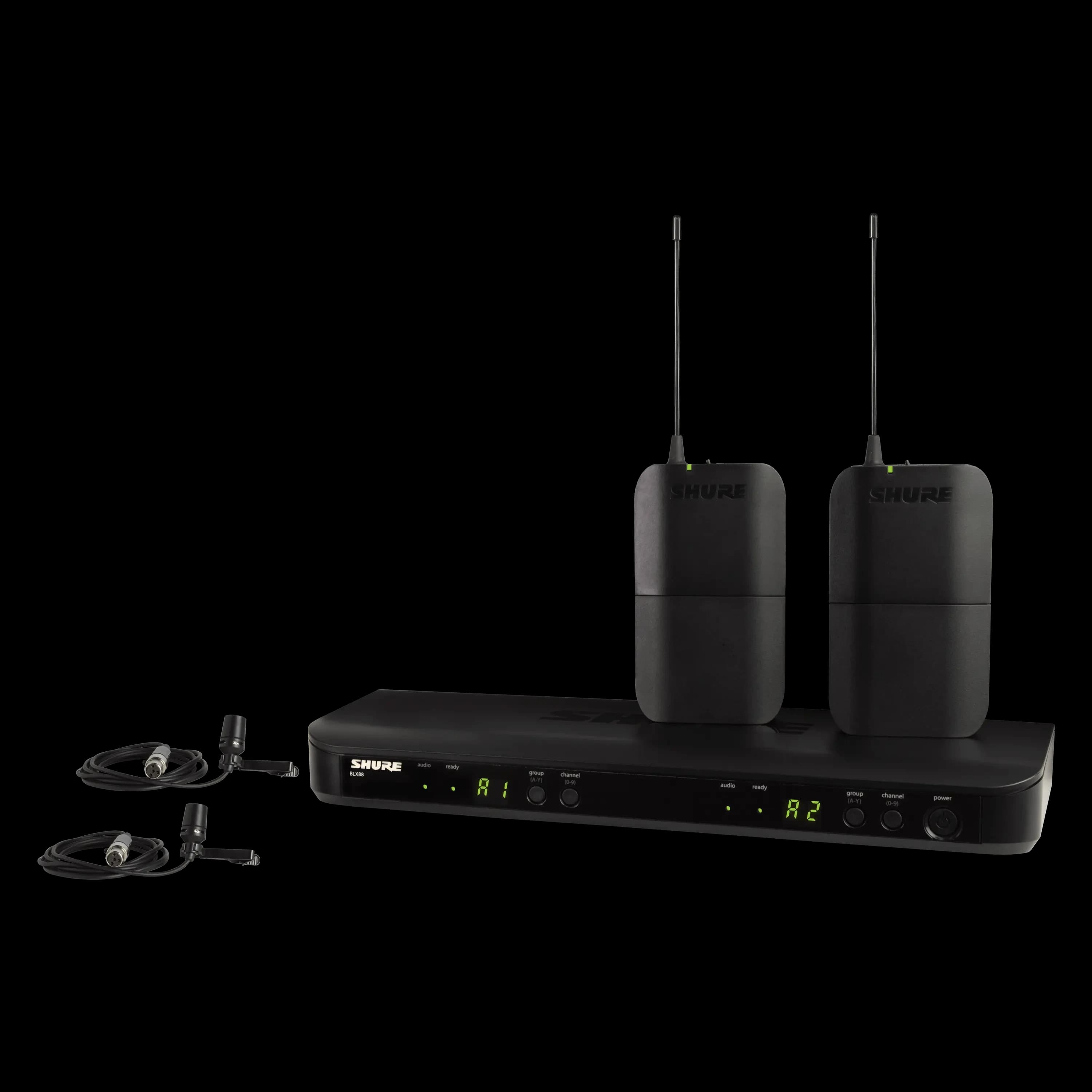

The BLX188/CVL is Shure's two-channel wireless presenter system: a BLX88 dual-channel tabletop receiver paired with two BLX1 bodypack transmitters, each wired to a CVL lavalier microphone — built for co-presenters, panel discussions and dual-host productions. Note: Shure's own naming designates this specifically as a dual-channel (two bodypack, two lavalier) system, not a single-bodypack configuration.

Each channel offers independent one-touch QuickScan frequency selection, up to 14 hours of battery life per transmitter, and up to 12 compatible systems on one frequency band, depending on region and environment.

Specifications

Technical Overview

System Configuration: BLX88 dual-channel receiver + two BLX1 bodypack transmitters, each with a CVL lavalier microphone
Working Range: 91m (300ft), line of sight — actual range depends on RF signal absorption, reflection and interference
Audio Frequency Response: 50 to 15,000Hz (dependent on microphone type)
Total Harmonic Distortion: 0.5%, typical (ref. ±33kHz deviation with 1kHz tone)
Dynamic Range: 100dB, A-weighted, typical
Operating Temperature: -18°C (0°F) to 57°C (135°F); battery characteristics may limit this range
Channel Capacity: Up to 12 compatible systems per frequency band (region and environment dependent)
BLX1 Transmitters (×2) — Gain Adjustment Range: 26dB
BLX1 Transmitters (×2) — Input Impedance: 1MΩ
BLX1 Transmitters (×2) — RF Output: 10mW, typical (varies by region)
BLX1 Transmitters (×2) — Dimensions: 110 x 64 x 21mm (4.33 x 2.52 x 0.83in), H x W x D
BLX1 Transmitters (×2) — Weight: 75g (2.6oz) each, without batteries
BLX1 Transmitters (×2) — Power: 2 AA batteries (1.5V alkaline) each, up to 14 hours battery life
BLX88 Receiver — RF Sensitivity: -105dBm for 12dB SINAD, typical
BLX88 Receiver — Image Rejection: >50dB, typical
BLX88 Receiver — Outputs: XLR (-27dBV into 100kΩ) and 6.35mm 1/4" (-13dBV into 100kΩ) per channel
BLX88 Receiver — Dimensions: 38 x 308 x 101mm (1.50 x 12.13 x 3.98in), H x W x D
BLX88 Receiver — Weight: 429g (15.1oz)
BLX88 Receiver — Power: 12-15V DC @ 320mA, external power supply (tip positive)
Frequency Bands: Multiple regional UHF bands (e.g. H9, H10, H11, J11 and others, 470-865MHz range, 10mW output); exact band is a regulatory SKU suffix and varies by country — see Shure's Wireless Frequency Finder

Key Features

What It Delivers

BLX88 dual-channel receiver with independent QuickScan per channel
Two BLX1 bodypack transmitters, each with a CVL lavalier microphone
Up to 300ft (91m) operating range, line of sight
Up to 14 hours of battery life per transmitter on 2 AA batteries
Up to 12 compatible systems per frequency band (region dependent)
Includes lavalier clips, windscreens, power supply and user guide
