Overview

Shure SVX24/PG58

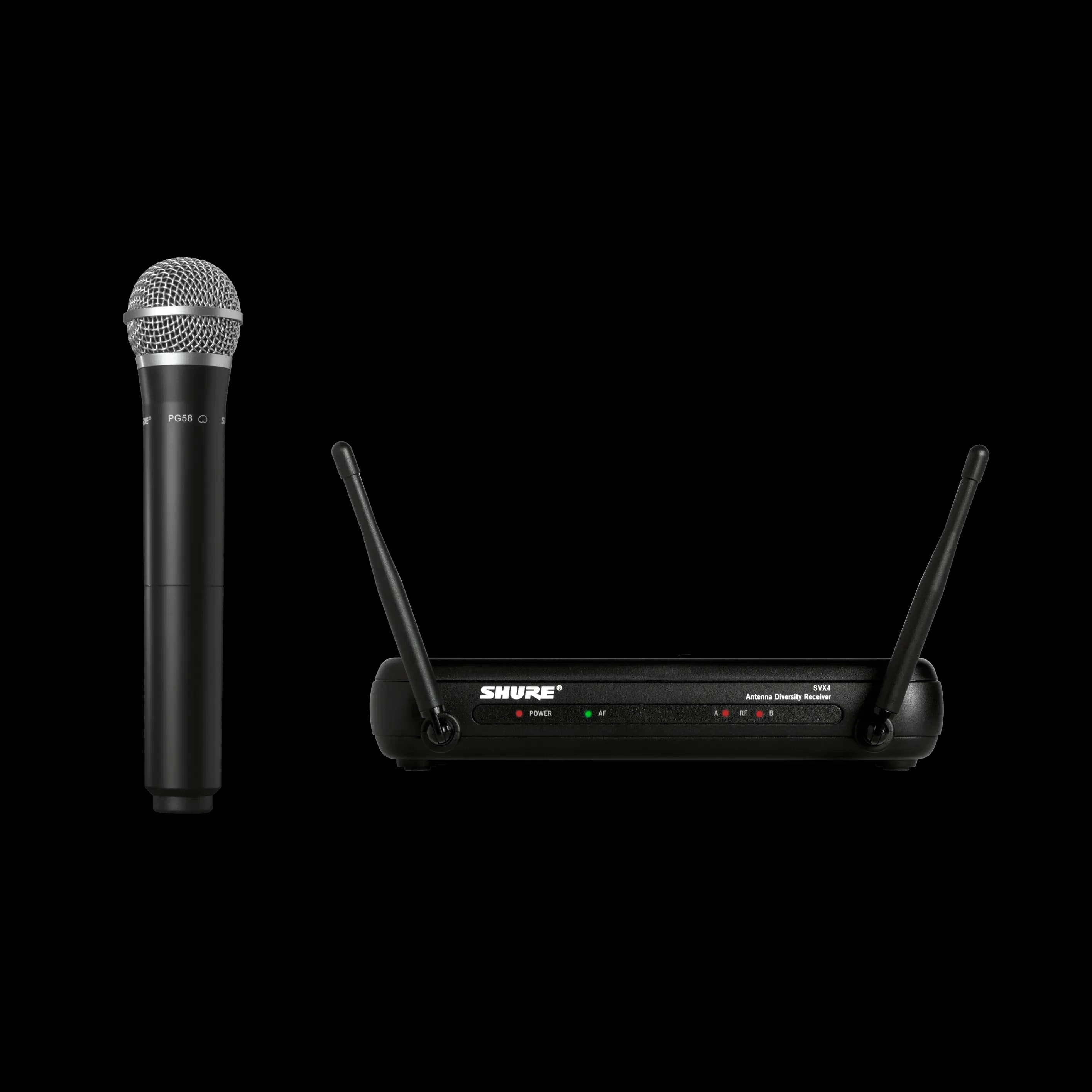

The SVX24/PG58 is Shure's entry-level SVX Wireless Vocal System, pairing the SVX4 antenna-diversity receiver with an SVX2 handheld transmitter fitted with a PG58 cardioid dynamic capsule — a straightforward, affordable UHF wireless option for vocalists and presenters.

The SVX4 receiver offers 8 selectable channels and supports up to 4 compatible systems operating simultaneously (region dependent), with a two-position HI/LO RF output power switch on the handheld transmitter and both XLR and 1/4" outputs on the receiver.

Specifications

Technical Overview

System Configuration: SVX4 diversity receiver + SVX2 handheld transmitter with PG58 capsule
Working Range (Line of Sight): HI power mode: 75m (250ft); LO power mode: 18m (60ft) — actual range depends on RF signal absorption, reflection and interference
Audio Frequency Response: 50 to 15,000Hz (dependent on microphone type)
RF Bandwidth: Up to 16MHz (UHF), varies by region
Selectable Channels: 8
Compatible Systems: Up to 4 operating simultaneously (region dependent)
Diversity: Antenna switching diversity with adjustable squelch
Outputs: 1/4" and XLR, with mic/line switch
SVX2 Transmitter — RF Output Switch: 2-position HI/LO power switch
SVX2 Transmitter — Power: AA battery
SVX4 Receiver — Power: 12-18V DC @ 130mA, external PS21 power supply
Frequency Bands: Multiple regional UHF bands (exact band is a regulatory SKU suffix and varies by country)

Compatible Products

Frequently Paired With

Shure SVX14/PGA31
