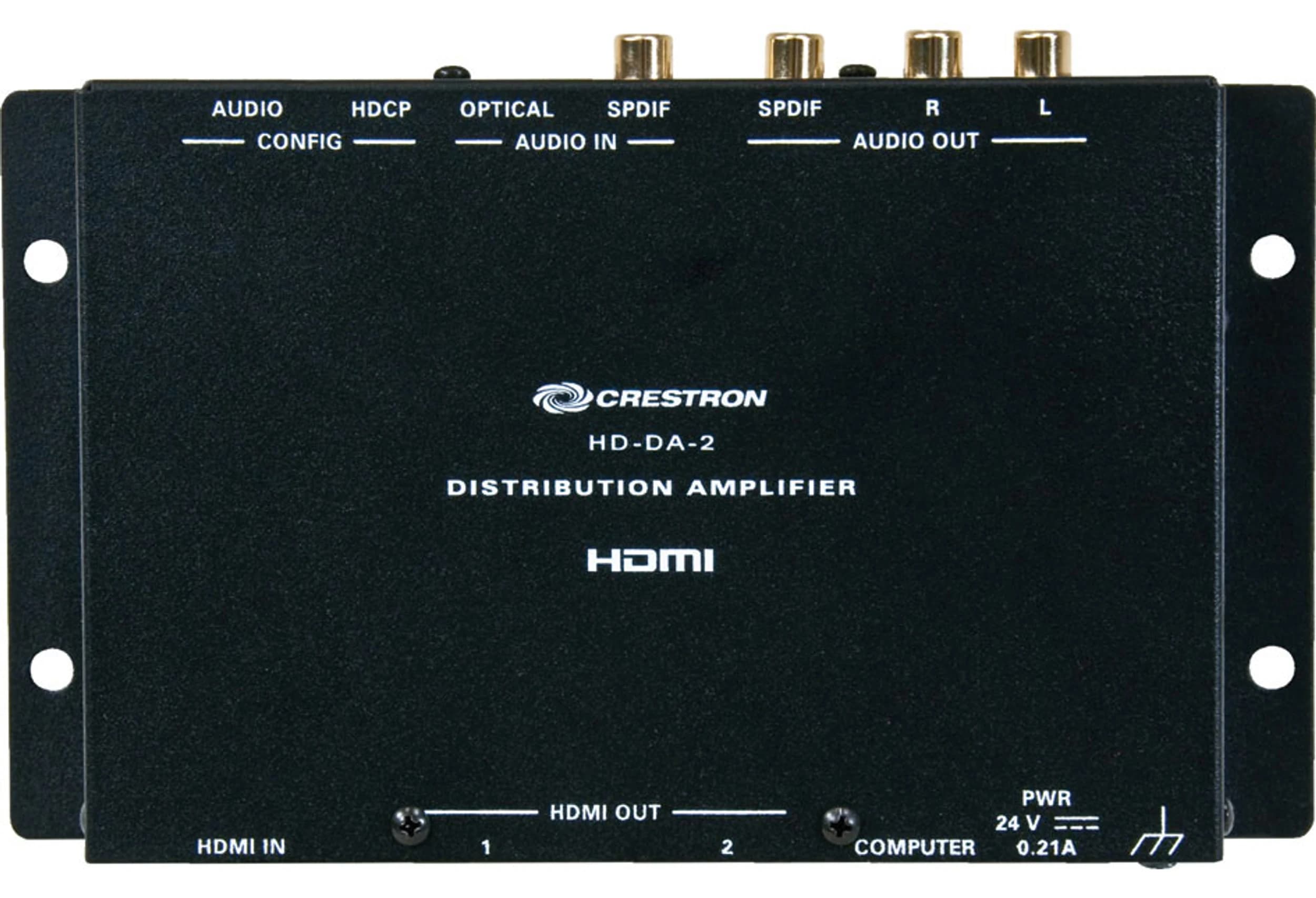

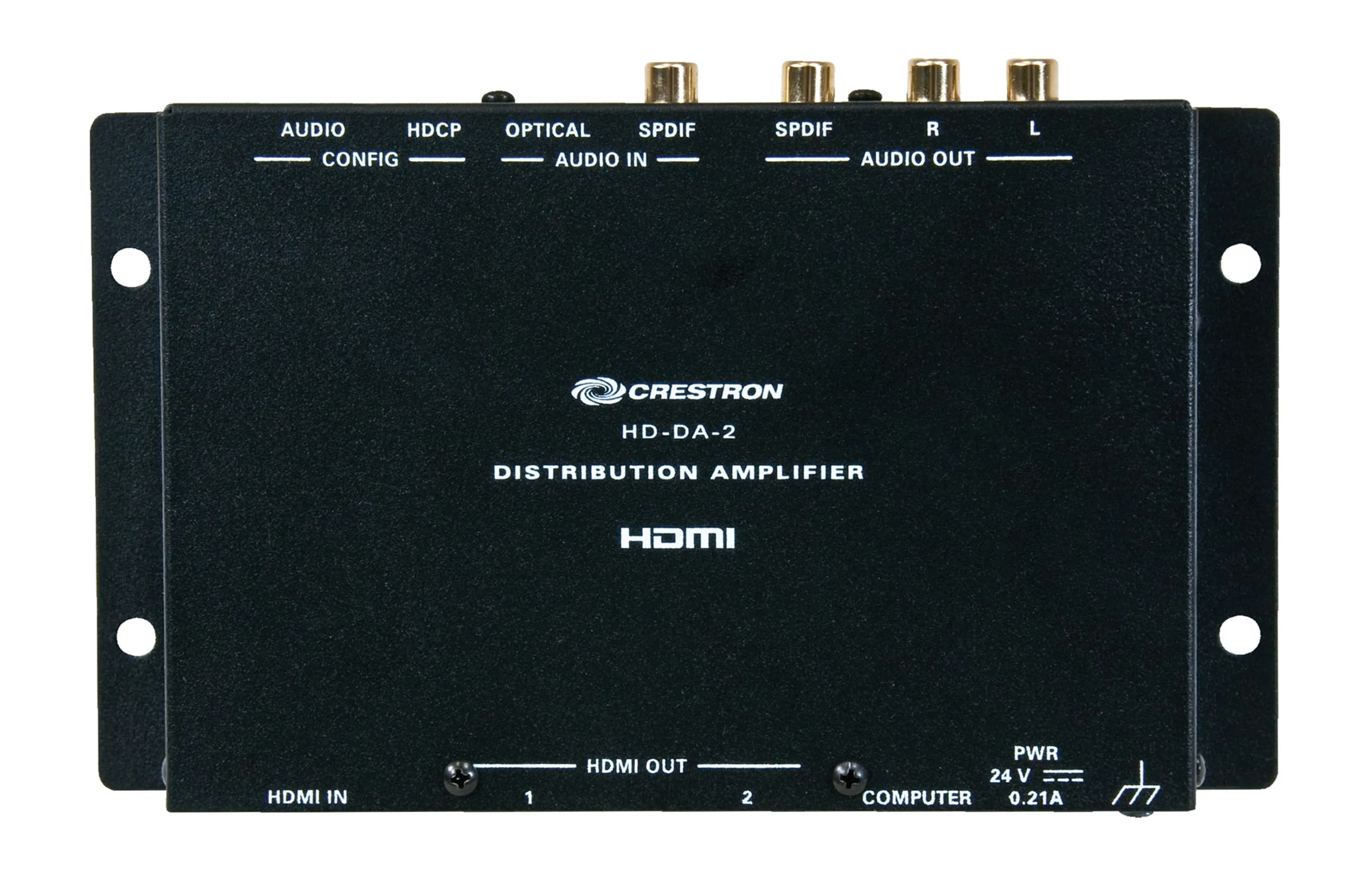

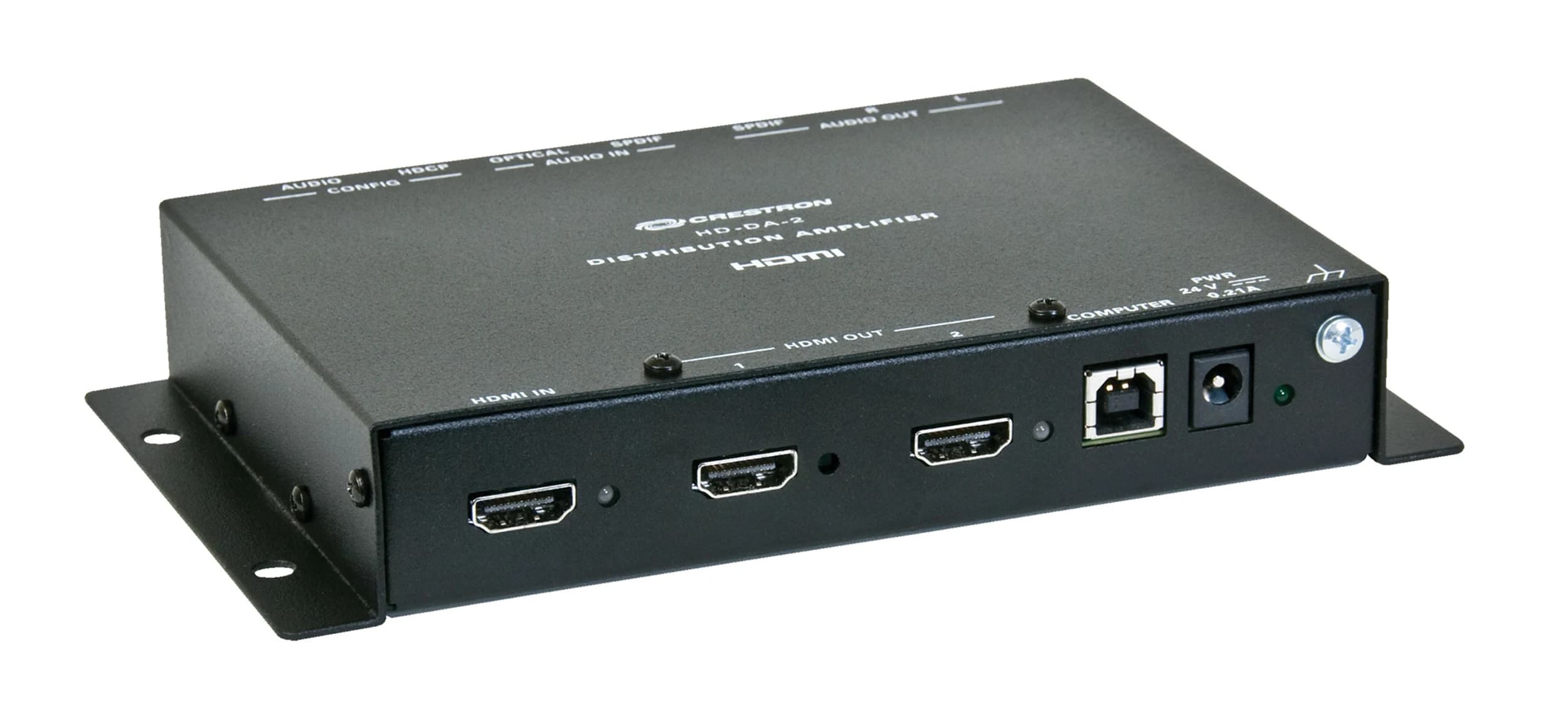

Crestron HD-DA-2

The Crestron HD-DA-2 is a 1-to-2 HDMI distribution amplifier and audio converter that splits one HDMI source to two displays, while also de-embedding SPDIF coaxial and analog stereo audio from the HDMI signal.

It can also merge separate DVI and SPDIF audio sources into a single HDMI output. Crestron lists this model as discontinued and names the HD-DA2-4KZ-E as its 4K-capable successor.

Specifications

Technical Overview

Video Input: HDMI with Deep Color and 3D (DVI and Dual-Mode DisplayPort compatible)
Video Outputs: 2 × HDMI with Deep Color and 3D (DVI compatible)
Maximum Resolution: 1920×1080@60Hz (1080p60); 1920×1200@60Hz; data rate up to 6.75 Gbps
Audio: 3×1 digital switch; HDMI, SPDIF coaxial and SPDIF optical inputs; HDMI, SPDIF coaxial and analog 2-channel outputs
Power: 24 VDC 0.75 A power pack included (PW-2407WU); 5.3 W consumption
Dimensions: 4.53 in H × 7.21 in W × 1.24 in D (115 × 183 × 32 mm)
Weight: 1.1 lb (0.50 kg)
Mounting: Freestanding, surface mount, or single rack rail
Operating Temperature: 32°F to 104°F (0°C to 40°C)

Compatible Products

Frequently Paired With

Crestron HD-DA4-4KZ-E
